SAP ABAP Table CRMT_BRF_210_SCR (CRM_BRF: Screen Structure for Rules)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-BRF (Application Component) Integration Business Rules Framework in the Bus. Transaction
     ⤷ CRM_BRF_1O (Package) BRF Integration with One Order Framework

Basic Data

Table Category	INTTAB	Structure

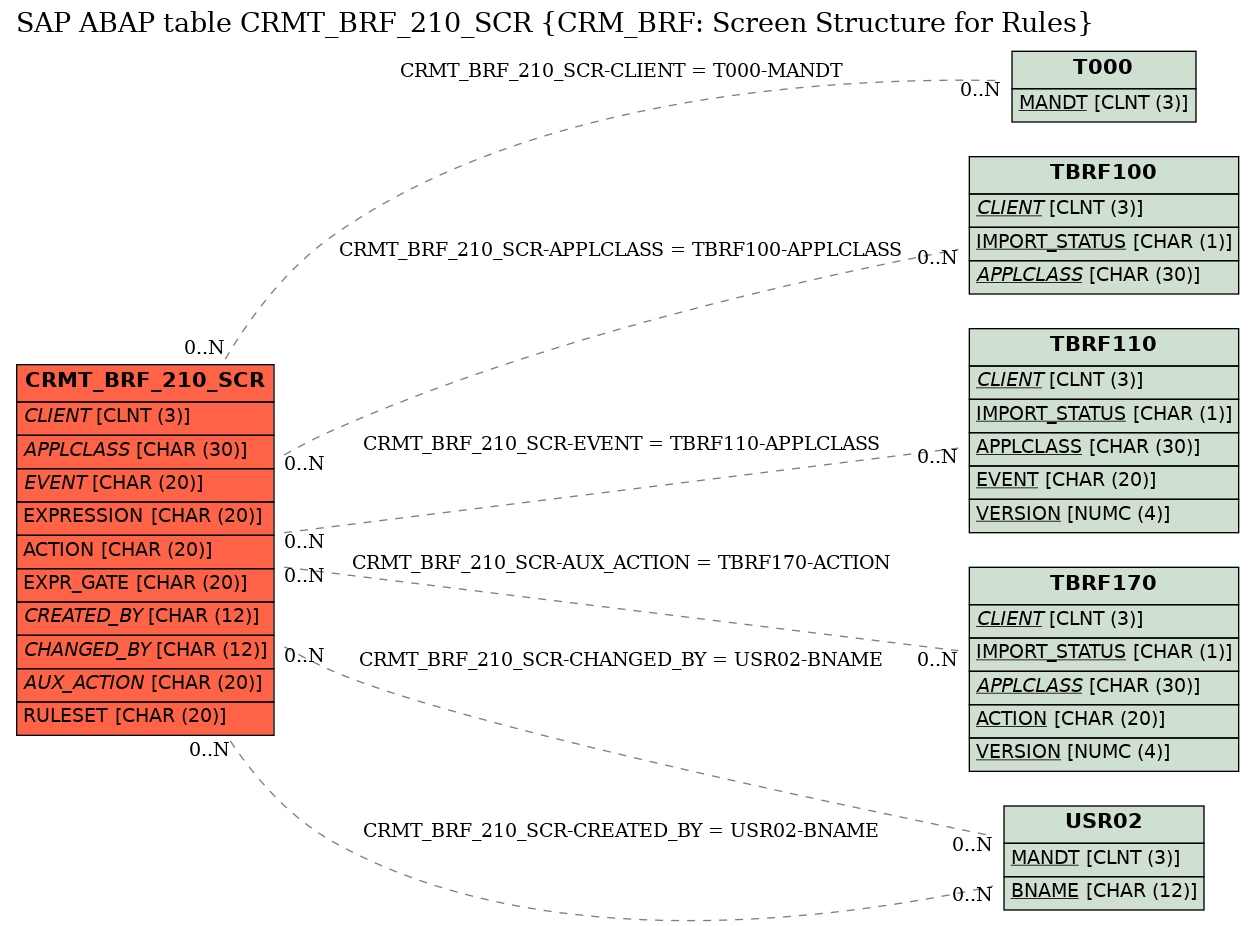

Structure	CRMT_BRF_210_SCR	Table Relationship Diagram
Short Description	CRM_BRF: Screen Structure for Rules

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	CRM_BRF: Screen Structure for Rules
2	.INCLUDE	☐				0	0	BRF: Screen Structure Rules
3	.INCLUDE	☐				0	0	BRF: Assignment of Event, Expression, Action
4	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
5	IMPORT_STATUS	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
6	APPLCLASS	☐	BRF_APPLCLASS	BRF_APPLCLASS	CHAR	30	0	BRF: Application Class	TBRF100
7	EVENT	☐	BRF_EVENT	BRF_EVENT	CHAR	20	0	Name of Event	TBRF110
8	VERSION	☐	BRF_VERSION	BRF_VERSION	NUMC	4	0	BRF: Version
9	EXPRESSION_IS	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
10	EXPRESSION	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	*
11	EXPRESSION_VS	☐	BRF_VERSION	BRF_VERSION	NUMC	4	0	BRF: Version
12	ACTION_IS	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
13	ACTION	☐	BRF_ACTION	BRF_ACTION	CHAR	20	0	Name of Action	*
14	ACTION_VS	☐	BRF_VERSION	BRF_VERSION	NUMC	4	0	BRF: Version
15	SEQUENCE	☐	BRF_SEQUENCE_NUMBER	BRF_SEQUENCE_NUMBER	NUMC	4	0	Sequence Number
16	EXPR_GATE_IS	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
17	EXPR_GATE	☐	BRF_EXPRESSION_GATE	BRF_EXPRESSION	CHAR	20	0	BRF: Gate Expression	*
18	EXPR_GATE_VS	☐	BRF_VERSION	BRF_VERSION	NUMC	4	0	BRF: Version
19	REPEAT_ACTION	☐	BRF_REPEAT_ACTION	BRF_BOOLE_D	CHAR	1	0	Repeat Execution of Action
20	ON_SINGLE_INST	☐	BRF_ON_SINGLE_INSTANCE	BRF_BOOLE_D	CHAR	1	0	Apply Rule in Single Instance Mode (Dialog Mode)
21	ON_MULTI_INST	☐	BRF_ON_MULTI_INSTANCE	BRF_BOOLE_D	CHAR	1	0	Execute Rule in Multi-Instance Mode (Batch Mode)
22	IGNORE_EVENT_LOG	☐	BRF_IGNORE_EVENT_LOG	BRF_BOOLE_D	CHAR	1	0	Ignore Event Log
23	.INCLUDE	☐				0	0	BRF: Administration Information
24	CREATED_BY	☐	BRF_CREATED_BY	XUBNAME	CHAR	12	0	BRF: Version Created by	USR02
25	CREATED_AT	☐	BRF_CREATED_AT	TZNTSTMPS	DEC	15	0	Version Created On/At
26	CHANGED_BY	☐	BRF_CHANGED_BY	XUBNAME	CHAR	12	0	BRF: Version Changed By	USR02
27	CHANGED_AT	☐	BRF_CHANGED_AT	TZNTSTMPS	DEC	15	0	Version Changed On/At
28	DELETED	☐	BRF_XDELETED	BRF_BOOLE_D	CHAR	1	0	Obsolete (BRF: Mark Entry for Physical Deletion)
29	SEQUENCE_NUMBER	☐	BRF_SEQUENCE_NUMBER	BRF_SEQUENCE_NUMBER	NUMC	4	0	Sequence Number
30	GATE_VALUE	☐	BRF_RESULT_VALUE	SYCHAR50	CHAR	50	0	Result
31	VALID_FROM	☐	BRF_RULE_VALID_FROM	BRF_TIMESTAMP	DEC	15	0	BRF Rule Valid From
32	VALID_TO	☐	BRF_RULE_VALID_TO	BRF_TIMESTAMP	DEC	15	0	BRF Rule Valid To
33	REF_DATE_EXPR	☐	BRF_RULE_REF_DATE	BRF_EXPRESSION	CHAR	20	0	Reference Date for Processing BRF Rule	*
34	REF_TIME_EXPR	☐	BRF_RULE_REF_TIME	BRF_EXPRESSION	CHAR	20	0	Reference Time for Processing BRF Rule	*
35	AUX_ACTION	☐	BRF_AUX_ACTION	BRF_ACTION	CHAR	20	0	BRF: Multipurpose Action	TBRF170
36	STOP_PROCESSING	☐	BRF_STOP_PROCESSING	BRF_STOP_PROCESSING	INT1	3	0	BRF: Controls Rule Processing at Runtime
37	SINGLE_ACTION	☐	BRF_SINGLE_ACTION	BRF_BOOLE_D	CHAR	1	0	Perform Action Just Once
38	EXPRESSION_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
39	ACTION_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
40	CHECK	☐	BRF_CHECK	BRF_BOOLE_D	CHAR	1	0	Checkbox
41	RULE_PROCESS_MODE	☐	BRF_RULE_PROCESS_MODE	BRF_RULE_PROCESS_MODE	CHAR	1	0	Rule Processing Mode
42	EXPR_GATE_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
43	RULESET	☐	BRF_RULESET	BRF_RULESET	CHAR	20	0	BRF Rule Set	*
44	RULESET_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
45	RULESET_ROW	☐	BRF_BOOLE_D	BRF_BOOLE_D	CHAR	1	0	Space = False, 'X' = True
46	CREATED_AT_DATE	☐			DATS	8	0
47	CREATED_AT_TIME	☐			TIMS	6	0
48	CREATED_AT_DATE_LOC	☐			DATS	8	0
49	CREATED_AT_TIME_LOC	☐			TIMS	6	0
50	TIME_ZONE_LOC	☐	SYSTZONLO	SYCHAR06	CHAR	6	0	Time Zone
51	TIME_ZONE_LOC_SHORT	☐	TZNDESCTZN	TEXT30	CHAR	30	0	Time Zone Text
52	REF_DATE_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
53	REF_TIME_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
54	VALID_FROM_DATE	☐	BRF_RULE_VALID_FROM_DATE		DATS	8	0	Valid-From Date for Rule
55	VALID_FROM_TIME	☐	BRF_RULE_VALID_FROM_TIME		TIMS	6	0	Valid-From Time for Rule
56	VALID_TO_DATE	☐	BRF_RULE_VALID_TO_DATE		DATS	8	0	Valid-To Date for Rule
57	VALID_TO_TIME	☐	BRF_RULE_VALID_TO_TIME		TIMS	6	0	Valid-To Time for Rule
58	AUX_ACTION_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
59	TEXTSTRING	☐	BRF_TEXTSTRING		CHAR	255	0	BRF: Text Display of Rule Line
60	PAR_LNK_GUID32	☐	GUID_32	SYSUUID_C	CHAR	32	0	GUID in 'CHAR' Format in Uppercase
61	PAR_COMB_GUID32	☐	CRMT_BRF_PAR_COMB_GUID32	CHAR32	CHAR	32	0	CHAR32-GUID for Reference of a BRF Parameter Combination
62	RL_RS_GUID32	☐	CRMT_BRF_RL_RS_GUID32	CHAR32	CHAR	32	0	CHAR32-GUID for Identifying a BRF Rule or Rule Set
63	EVAL_CHGD_FIELDS	☐	CRMT_BRF_EVAL_CHANGED_FIELDS	CRM_BOOLEAN	CHAR	1	0	Indicator 'Evaluate Changed Fields for Rules/Rule Sets'
64	.INCLUDE	☐				0	0	CRM_BRF: Screen Structure for Parameters
65	PARAM_1	☐	CRMT_BRF_PARAM		STRG	0	0	CRM_BRF: Parameter for Paramaterizable Event
66	PARAM_2	☐	CRMT_BRF_PARAM		STRG	0	0	CRM_BRF: Parameter for Paramaterizable Event
67	PARAM_3	☐	CRMT_BRF_PARAM		STRG	0	0	CRM_BRF: Parameter for Paramaterizable Event
68	PARAM_4	☐	CRMT_BRF_PARAM		STRG	0	0	CRM_BRF: Parameter for Paramaterizable Event
69	PARAM_5	☐	CRMT_BRF_PARAM		STRG	0	0	CRM_BRF: Parameter for Paramaterizable Event
70	PARAM_6	☐	CRMT_BRF_PARAM		STRG	0	0	CRM_BRF: Parameter for Paramaterizable Event
71	PARAM_7	☐	CRMT_BRF_PARAM		STRG	0	0	CRM_BRF: Parameter for Paramaterizable Event
72	PARAM_8	☐	CRMT_BRF_PARAM		STRG	0	0	CRM_BRF: Parameter for Paramaterizable Event
73	PARAM_9	☐	CRMT_BRF_PARAM		STRG	0	0	CRM_BRF: Parameter for Paramaterizable Event
74	PARAM_10	☐	CRMT_BRF_PARAM		STRG	0	0	CRM_BRF: Parameter for Paramaterizable Event
75	PARAM_11	☐	CRMT_BRF_PARAM		STRG	0	0	CRM_BRF: Parameter for Paramaterizable Event
76	PARAM_12	☐	CRMT_BRF_PARAM		STRG	0	0	CRM_BRF: Parameter for Paramaterizable Event
77	PARAM_13	☐	CRMT_BRF_PARAM		STRG	0	0	CRM_BRF: Parameter for Paramaterizable Event
78	PARAM_14	☐	CRMT_BRF_PARAM		STRG	0	0	CRM_BRF: Parameter for Paramaterizable Event

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BRF_210_SCR	APPLCLASS	TBRF100	APPLCLASS
2	CRMT_BRF_210_SCR	AUX_ACTION	TBRF170	ACTION
3	CRMT_BRF_210_SCR	CHANGED_BY	USR02	BNAME
4	CRMT_BRF_210_SCR	CLIENT	T000	MANDT
5	CRMT_BRF_210_SCR	CREATED_BY	USR02	BNAME
6	CRMT_BRF_210_SCR	EVENT	TBRF110	APPLCLASS

History

Last changed by/on	SAP	20130604
SAP Release Created in	500
