SAP ABAP Table CRMT_AUSP_MESS (Equipment Calssification Data: Messaging BDoc Segment Fields)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MD-INB (Application Component) Installed Bases
     ⤷ IB_CRM_INT (Package) IB: Integration IBase/Object with R/3

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_AUSP_MESS	Table Relationship Diagram
Short Description	Equipment Calssification Data: Messaging BDoc Segment Fields

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	CRM Mobile Service upgrade general data
2	BEF_IMG	☐			INT1	3	0
3	TASK	☐			INT1	3	0
4	SENDBITS	☐			RAW	32	0
5	.INCLUDE	☐				0	0	Equipment Classification Data
6	EQUNR	☐	EQUNR	EQUNR	CHAR	18	0	Equipment Number	*
7	CLASS	☐	KLASSE_D	KLASSE	CHAR	18	0	Class number
8	.INCLUDE	☐				0	0	Characteristic Values
9	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
10	OBJEK	☐	OBJNUM	OBJEKT	CHAR	50	0	Key of object to be classified
11	ATINN	☐	ATINN	ATINN	NUMC	10	0	Internal characteristic	*
12	ATZHL	☐	WZAEHL	NUM3	NUMC	3	0	Characteristic value counter
13	MAFID	☐	KLMAF	KLMAF	CHAR	1	0	Indicator: Object/Class
14	KLART	☐	KLASSENART	KLASSENART	CHAR	3	0	Class Type	TCLA
15	ADZHL	☐	ADZHL	NUMC4	NUMC	4	0	Internal counter for archiving objects via engin. chg. mgmt
16	.INCLUDE	☐				0	0	AUSP Data Fields
17	ATWRT	☐	ATWRT	ATWRT	CHAR	30	0	Characteristic Value
18	ATFLV	☐	ATFLV	FLTP	FLTP	16	16	Internal floating point from
19	ATAWE	☐	MSEHI	MEINS	UNIT	3	0	Unit of Measurement	T006
20	ATFLB	☐	ATFLB	FLTP	FLTP	16	16	Internal floating point value to
21	ATAW1	☐	MSEHI	MEINS	UNIT	3	0	Unit of Measurement	T006
22	ATCOD	☐	ATCOD	ATCOD	CHAR	1	0	Code for value dependency
23	ATTLV	☐	ATTLV	FLTP	FLTP	16	16	Tolerance from
24	ATTLB	☐	ATTLB	FLTP	FLTP	16	16	Tolerance to
25	ATPRZ	☐	ATPRZ	ATXFE	CHAR	1	0	Indicator: Tolerance Shown as a Percentage
26	ATINC	☐	ATINC	FLTP	FLTP	16	16	Increment Within a Specified Interval
27	ATAUT	☐	ATAUT	ATAUT	CHAR	1	0	Classification: Author
28	AENNR	☐	AENNR	AENNR	CHAR	12	0	Change Number	*
29	DATUV	☐	DATUV	DATUM	DATS	8	0	Valid-From Date
30	LKENZ	☐	LKENZ	XFELD	CHAR	1	0	Deletion Indicator
31	.INCLUDE	☐				0	0	Att. structure for ADD fields
32	ATIMB	☐	ATIMB	ATINN	NUMC	10	0	Characteristic Number of User-Defined Data Type	*
33	ATZIS	☐	ATZIS	NUMC3	NUMC	3	0	Instance counter
34	ATSRT	☐	ATSRT	ATSRT	NUMC	4	0	Sort field for AUSP char. values
35	ATVGLART	☐	ATVGLART	ATVGLART	CHAR	1	0	Comparison Type for Char. Value: " " .. "7": Incl./Excl.
36	DATUB	☐	DATUB	DATUM	DATS	8	0	Valid-to date
37	.INCLU--AP	☐				0	0	extension with GUID
38	PARTNER_GUID	☐	BU_PARTNER_GUID	SYSUUID	RAW	16	0	Business Partner GUID
39	CHANGED_AT	☐	CRMT_MKT_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Marketing Object: Date of Last Change
40	CHANGED_BY	☐	CRMT_MKT_CHANGED_BY	UNAME	CHAR	12	0	Marketing Object: Last Changed By
41	TYPE_BP_GUID	☐	BU_TYPE	BU_TYPE	CHAR	1	0	Business partner category

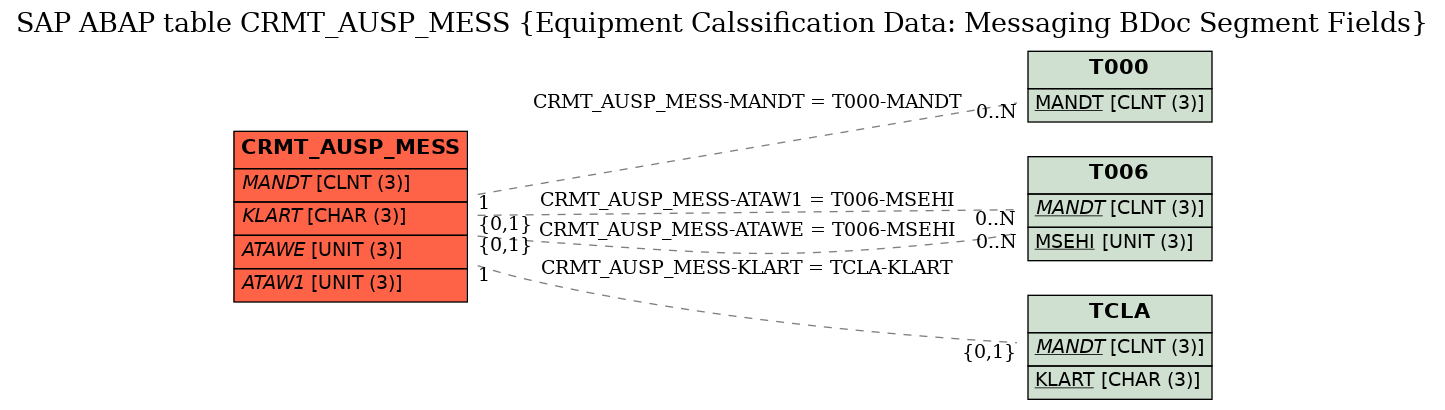

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_AUSP_MESS	ATAW1	T006	MSEHI	REF	C	CN
2	CRMT_AUSP_MESS	ATAWE	T006	MSEHI	REF	C	CN
3	CRMT_AUSP_MESS	KLART	TCLA	KLART	KEY	1	C
4	CRMT_AUSP_MESS	MANDT	T000	MANDT	KEY	1	CN

History

Last changed by/on	SAP	20141013
SAP Release Created in	400
