SAP ABAP Table CRMT_7792_DATES_UI (Interface: Dates)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-FIN (Application Component) Financing
     ⤷ CRM_FINPROD_I (Package) CRM Leasing and Loan Product Data

Basic Data

Table Category	INTTAB	Structure

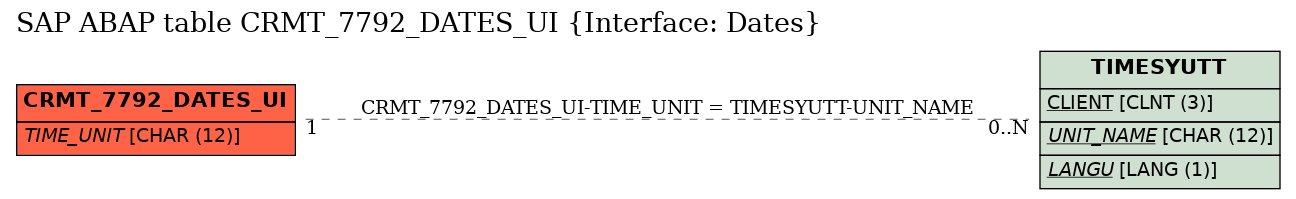

Structure	CRMT_7792_DATES_UI	Table Relationship Diagram
Short Description	Interface: Dates

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Management of Interface Structures
2	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
3	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
4	KIND	☐	CRMT_OBJECT_KIND	CRM_OBJECTKIND	CHAR	1	0	Object Type
5	CONTEXT	☐	TIMECONT	TIMECONT	CHAR	12	0	Name of Date Profile
6	APPT_TYPE	☐	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	*
7	APPT_TEXT	☐	SC_TXT	TEXT40	CHAR	40	0	Description
8	DATE_FROM	☐	CRMT_DATE	DATUM	DATS	8	0	Date for Different Goals (Posting Date etc.)
9	TIMEZONE_FROM	☐	CRMT_TIMEZONE_FROM	TZNZONE	CHAR	6	0	Time Zone for a Start Time	*
10	TIME_OUT_FROM	☐	TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
11	DATE_TO	☐	CRMT_DATE	DATUM	DATS	8	0	Date for Different Goals (Posting Date etc.)
12	TIMEZONE_TO	☐	CRMT_TIMEZONE_TO	TZNZONE	CHAR	6	0	Time Zone for End Time	*
13	TIME_OUT_TO	☐	TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
14	RULE_NAME	☐	TIMENAME	TIMENAME	CHAR	12	0	Object Name
15	RULE_TEXT	☐	TIMERUTEXT	TIMERUTEXT	CHAR	50	0	Descriptive Text for Date Rule
16	DURATION	☐	TIMEDURA	TIMEDURA	DEC	13	0	Numerical Value of Duration
17	TIME_UNIT	☐	TIMEUNITDU	TIMEUNITNA	CHAR	12	0	Default Value for Time Unit	TIMESYUTT
18	TIME_UNIT_TEXT	☐	TIMEUNITT	TIMEUNITT	CHAR	20	0	Long Text for Time Unit in Singular
19	DOMINANT	☐	CRMT_DATES_DOMINANT	CRM_DATES_DOMINANT	CHAR	1	0	All Day Event
20	SHOW_LOCAL	☐	SC_SHOWLOC	FLAG	CHAR	1	0	Display appointment in the local time of the appointment
21	DISPL_ORDER	☐	CRMT_DISPL_SEQUENCE	CRM_SEQUENCE	INT4	10	0	CRM: Position Within the Display
22	IS_DURATION	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
23	IS_MILESTONE	☐	TIMEFLMIL	FLAG	CHAR	1	0	Date is a Milestone
24	LINE_READ_ONLY	☐	CRMT_DISPLAY_READ_ONLY	CRMT_DISPLAY_READ_ONLY	CHAR	1	0	Flag Whether Date Type is Only Displayed

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_7792_DATES_UI	TIME_UNIT	TIMESYUTT	UNIT_NAME		1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	300
