SAP ABAP Table CRMT_7000_DATES_UI (Interface: Dates)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BF-DAT (Application Component) Date Management
     ⤷ CRM_DATES (Package) CRM Date Details

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_7000_DATES_UI	Table Relationship Diagram
Short Description	Interface: Dates

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Management of Interface Structures
2	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
3	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
4	KIND	☐	CRMT_OBJECT_KIND	CRM_OBJECTKIND	CHAR	1	0	Object Type
5	APPT_TYPE	☐	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	TIMECTEV
6	APPT_TEXT	☐	SC_TXT	TEXT40	CHAR	40	0	Description
7	DATE_FROM	☐	DATUM	DATUM	DATS	8	0	Date
8	TIME_FROM	☐	UZEIT	UZEIT	TIMS	6	0	Time
9	TIME_ZONE	☐	TIMEZONE	TZNZONE	CHAR	6	0	Time Zone	*
10	RULE_NAME	☐	TIMENAME	TIMENAME	CHAR	12	0	Object Name	TIMERUNA
11	RULE_TEXT	☐	TIMERUTEXT	TIMERUTEXT	CHAR	50	0	Descriptive Text for Date Rule
12	DISPL_ORDER	☐	CRMT_DISPL_SEQUENCE	CRM_SEQUENCE	INT4	10	0	CRM: Position Within the Display

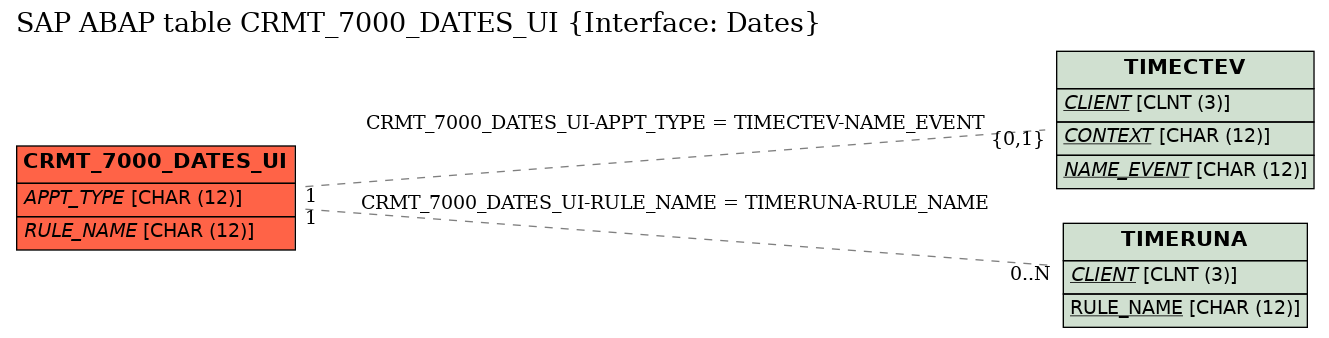

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_7000_DATES_UI	APPT_TYPE	TIMECTEV	NAME_EVENT	REF	1	C
2	CRMT_7000_DATES_UI	RULE_NAME	TIMERUNA	RULE_NAME	REF	1	CN

History

Last changed by/on	SAP	20030110
SAP Release Created in	12A
