SAP ABAP Table CRMT_2010_ALV_CASH_FLOW_UI (Payment Schedule / Interface for Grid/Selection (Leasing))

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-BPL (Application Component) Billing Plan
     ⤷ CRM_BILLPLAN (Package) CRM Billing Plan

Basic Data

Table Category	INTTAB	Structure

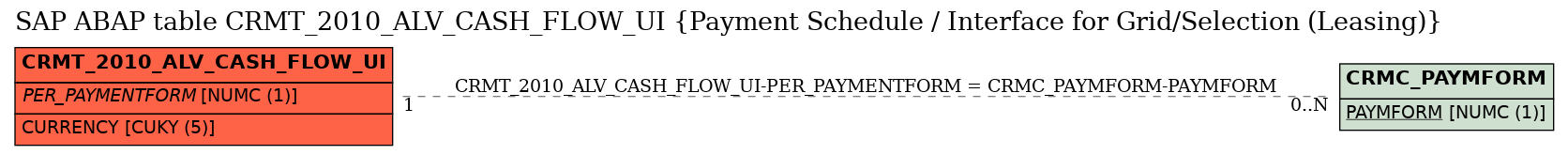

Structure	CRMT_2010_ALV_CASH_FLOW_UI	Table Relationship Diagram
Short Description	Payment Schedule / Interface for Grid/Selection (Leasing)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	SELECTION_MARK	☐	CRMT_SELECTION_MARK	CRM_SELECTION_MARK	CHAR	1	0	Selection Indicator for Table Controls
2	.INCLUDE	☐				0	0	Payment Plan Date on the User Interface/Leasing
3	.INCLUDE	☐				0	0	Payment Plan Date on the User Interface/Leasing
4	.INCLUDE	☐				0	0	Management of Interface Structures
5	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
6	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
7	BILLPLAN_MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
8	NO_OF_PERIODS	☐	CRMT_NO_OF_PERIODS		NUMC	5	0	Number of Periods in Billing Plan
9	CASHFLOW_TYPE	☐	CRMT_CASHFLOW_TYPE	CRMT_CASHFLOW_TYPE	CHAR	4	0	Flow Category
10	PER_PAYMENTFORM	☐	CRMT_PER_PAYMENTFORM	CRMT_PAYMENTFORM	NUMC	1	0	When Due in Period	CRMC_PAYMFORM
11	UNIT_PERIODS	☐	CRMT_UNIT_PERIODS	TFMSINSTALLMENT	NUMC	2	0	Time Unit for Periods
12	SETTL_FROM	☐	CRMT_SETTL_FROM	BCOS_TSTMP	DEC	15	0	Start of Settlement for Period
13	SETTL_TO	☐	CRMT_SETTL_TO	BCOS_TSTMP	DEC	15	0	End of Settlement for Period
14	MAN_FIRSTDUEDATE	☐	CRMT_MAN_FIRSTDUEDATE	BCOS_TSTMP	DEC	15	0	Individual Due Date
15	NOMINAL_INT_RATE	☐	CRMT_NOMINAL_INT_RATE	DECV3_7	DEC	10	7	Nominal Interest Rate
16	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	*
17	DEFAULT_AMOUNT	☐	CRMT_DEFAULT_AMOUNT	CRMT_COND_VALUE	CURR	19	2	Default Amount
18	DEFAULT_PERCENT	☐	CRMT_DEFAULT_PERCENTAGE	DECV3_7	DEC	10	7	Default Percentage
19	DEF_RATEPERX	☐	CRMT_DEFAULT_RATEPERK	CRMT_DECV7_10	DEC	17	10	Default Rate per x
20	RESULT_AMOUNT	☐	CRMT_RESULT_AMOUNT	CRMT_COND_VALUE	CURR	19	2	Resulting Amount
21	RESULT_RATEPERK	☐	CRMT_RESULT_RATEPERK	CRMT_DECV7_10	DEC	17	10	Rate per x
22	RESULT_RATE_K_G	☐	CRMT_RESULT_RATEPERK_G	CRMT_DECV7_10	DEC	17	10	Gross Rate per X
23	NUMBER_INT	☐	CRMT_BILL_NUMBER_INT		NUMC	10	0	Billing Plan: Internal Sort Order
24	NOMINAL_IRAT_INT	☐	CRMT_NOMINAL_INT_RATE_INT	DECV3_7	DEC	10	7	Nominal Interest Rate (Internal Plan)
25	FLAG_BLOCKED	☐	CRMT_FLAG_BLOCKED	XFELD	CHAR	1	0	Calculation Locked
26	FLAG_ULTIMO	☐	CRMT_FLAG_ULTIMO	XFELD	CHAR	1	0	Do Not Draw Standard Values from Conditions
27	CELL	☐	LVC_T_STYL		TTYP	0	0
28	VALID_FROM	☐	TFM_VALIDFROM	DATUM	DATS	8	0	Date: Item is Valid From
29	VALID_TO	☐	TFM_VALIDTO	DATUM	DATS	8	0	Date: Item is Valid To
30	MAN_FRST_DUEDATE	☐	CRMT_MAN_FRST_DUEDATE	DATE	DATS	8	0	Requested First Due Date (Leasing)
31	T_PER_PAYMENTF	☐	DOMNAME	DOMNAME	CHAR	30	0	Domain name	*
32	T_UNIT_PERIODS	☐	VAL_TEXT	DDTEXT	CHAR	60	0	Short Text for Fixed Values
33	T_CASHFLOW_TYPE	☐	CRMT_CASHFLOW_TYPE_T	TEXT30	CHAR	30	0	Description

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_2010_ALV_CASH_FLOW_UI	PER_PAYMENTFORM	CRMC_PAYMFORM	PAYMFORM	KEY	1	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	20C
