SAP ABAP Table CRMT_0200_SERVICEPLAN_I_UI (Service Plan Data)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-SPL (Application Component) Service Plan
     ⤷ CRM_SERVICEPLAN_I (Package) CRM Service Plan Item

Basic Data

Table Category	INTTAB	Structure

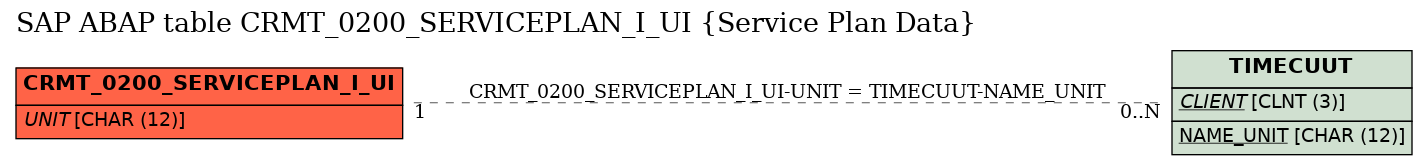

Structure	CRMT_0200_SERVICEPLAN_I_UI	Table Relationship Diagram
Short Description	Service Plan Data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Service Plan - Structure of External Fields
2	.INCLUDE	☐				0	0	Service Plan Data About Type of Cycle
3	CYCLE_STEP	☐	CRMT_SERVICECYCLE_STEP	CRMT_SERVICECYCLE_STEP	NUMC	10	0	Service Interval Number
4	.INCLUDE	☐				0	0	Service Plan Data for Time-Based Cycles
5	CYCLE	☐	CRMT_SERVICECYCLE	CRMT_SERVICECYCLE	DEC	13	0	Value of Service Interval
6	UNIT	☐	TIMEUNITDU	TIMEUNITNA	CHAR	12	0	Default Value for Time Unit	TIMECUUT
7	TIMESTAMP	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
8	TIME_OUT	☐	TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
9	RULE_NAME	☐	CRMT_DATES_RULE_NAME	TIMENAME	CHAR	12	0	Semantic Name of a Date Rule
10	RULE_GUID	☐	CRMT_DATES_RULE_GUID	TIMERULEID	RAW	16	0	Rule GUID to Calculate a Date	*
11	.INCLUDE	☐				0	0	Service Plan Data for Counter-Based Cycles
12	COUNTER_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
13	.INCLUDE	☐				0	0	Service Plan - Template Reference
14	TEMPLATE_ID	☐	CRMT_SRVPLAN_TEMPLATE_NR	CRM_OBJECT_ID	CHAR	10	0	Transaction Number of Template
15	TEMPLATE_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
16	.INCLUDE	☐				0	0	Service Plan Extension - External Fields
17	SRVPLAN_TYPE	☐	CRMT_SRVPLAN_TYPE	CRMT_SERVICEPLAN_TYPE	CHAR	1	0	Service Plan Type
18	CYCLE_KEY	☐	CRMT_SRVPLAN_CYCLE_KEY	CYCLE_KEY	CHAR	10	0	Service Interval Template	*
19	CYCLE_TYPE	☐	CRMT_SERVICECYCLE_TYPE	CRMT_SERVICECYCLE_TYPE	CHAR	1	0	Scheduling Type for Service Interval
20	SRVPLAN_SCHEDTYP	☐	CRMT_SERVICECYCLE_SCHEDULTYPE	CRMT_SERVICECYCLE_SCHEDULTYPE	CHAR	1	0	Indicator DeterminingWhether Scheduling Absolute or Relative
21	SRVPLAN_STARTCYC	☐	CRMT_SRVPLAN_START_IN_CYCLE	BOOLEAN	CHAR	1	0	Flag Determining Whether Scheduling Start Within Interval
22	CYCLE_DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_0200_SERVICEPLAN_I_UI	UNIT	TIMECUUT	NAME_UNIT	REF	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	400
