SAP ABAP Table CRMS_MKTPL_OL_ATTRIBUTES (MKTPL OL: Marketing Project Attributes)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MKT-MPL (Application Component) Marketing Planner
     ⤷ CRM_MKTPL_OBJECT_LAYER (Package) Marketing Planner Object Layer

Basic Data

Table Category	INTTAB	Structure
Structure	CRMS_MKTPL_OL_ATTRIBUTES	Table Relationship Diagram
Short Description	MKTPL OL: Marketing Project Attributes

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	GUID	☐	CRM_MKTPL_GUID	CRM_MKTPL_GUID	RAW	16	0	CRM Marketing Planning - Marketing Element GUID
2	EXTERNAL_ID	☐	CRM_MKTPL_EXTERNAL_ID	CGPL_EXTID	CHAR	24	0	External Identification
3	OBJECT_CLASS	☐	CRM_MKTPL_OBJ_CLASS	CRM_MKTPL_OBJECT_CLASS	CHAR	3	0	Category of Marketing Project	*
4	.INCLUDE	☐				0	0	Project Planning: Projects and Activities Include Structure
5	PROJECT_GUID	☐	CGPL_PROJECT_GUID	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16 Character GUID for Projects
6	OBJECT_TYPE	☐	CGPL_OBJECT_TYPE	CHAR3	CHAR	3	0	Object Type in Project Planning
7	PRIORITY	☐	CGPL_PRIORITY	NUMC3	NUMC	3	0	Priority	CGPL_PRIO
8	ACTUALSTART	☐	CGPL_ACTUALSTART	BCOS_TSTMP	DEC	15	0	Actual Start Date
9	ACTUALFINISH	☐	CGPL_ACTUALFINISH	BCOS_TSTMP	DEC	15	0	Actual Finish Date
10	PLANSTART	☐	CGPL_PLANSTART	BCOS_TSTMP	DEC	15	0	Planned start date
11	PLANFINISH	☐	CGPL_PLANFINISH	BCOS_TSTMP	DEC	15	0	Planned Finish Date
12	COMPLETION	☐	CGPL_COMPLETION	CGPL_COMPLETION	NUMC	3	0	Percentage of Completion
13	MILESTONE	☐	CGPL_MILESTONE	CHAR1	CHAR	1	0	Milestone indicator
14	CONSTRAINT_TYPE	☐	CGPL_CONSTRAINT	CGPL_CONSTRAINT	CHAR	1	0	Type of Scheduling Constraint
15	CONSTRAINT_TIME	☐	CGPL_CONSTRAINT_TIME	BCOS_TSTMP	DEC	15	0	Constraint Date
16	CREATED_BY	☐	CGPL_CREATED_BY	USNAM	CHAR	12	0	Name of Person Who Created Object
17	CREATED_ON	☐	CGPL_CREATED_ON	DATUM	DATS	8	0	Date on Which the Object was Created
18	CREATED_IN_BW	☐	CGPL_CREATED_BW	CHAR1	CHAR	1	0	Transfer Object to BW
19	CHANGED_BY	☐	CGPL_CHANGED_BY	USNAM	CHAR	12	0	Name of Person Who Changed Object
20	CHANGED_ON	☐	CGPL_CHANGED_ON	DATUM	DATS	8	0	Date on Which Object Was Last Changed
21	UPDATED_IN_BW	☐	CGPL_UPDATED_BW	CHAR1	CHAR	1	0	Current Object in BW
22	BWIDENTIFIER	☐	CGPL_BWIDENTIFIER	CGPL_BWIDENTIFIER	NUMC	8	0	Project Planning - BW Identification
23	PLANGROUP	☐	CGPL_SEM_PLGRP		CHAR	4	0	Planning Profile Group
24	LATEST_START	☐	CGPL_LATEST_START	BCOS_TSTMP	DEC	15	0	Latest start
25	LATEST_FINISH	☐	CGPL_LATEST_FINISH	BCOS_TSTMP	DEC	15	0	Latest finish date
26	TOTAL_FLOAT	☐	CGPL_TOTAL_FLOAT	CGPL_FLOAT	DEC	8	2	Total Float
27	DURATION	☐	CGPL_DURATION	CGPL_DURATION	DEC	8	2	Duration of Execution
28	DURATION_UNIT	☐	CGPL_DURATION_UNIT	MEINS	UNIT	3	0	Time Unit for Execution Duration	*
29	CALENDAR_ID	☐	WFCID	WFCID	CHAR	2	0	Factory Calendar	*
30	CONSTR_TYPE_FIN	☐	CGPL_CONSTRAINT	CGPL_CONSTRAINT	CHAR	1	0	Type of Scheduling Constraint
31	CONSTR_TIME_FIN	☐	CGPL_CONSTRAINT_TIME	BCOS_TSTMP	DEC	15	0	Constraint Date
32	APPLICATION	☐	CGPL_APPLICATION_TYPE	CGPL_APPLICATION_TYPE	CHAR	3	0	Application in Project Planning	*
33	FORECAST_START	☐	CGPL_FORECAST_START	BCOS_TSTMP	DEC	15	0	Forecast Start
34	FORECAST_FINISH	☐	CGPL_FORECAST_FINISH	BCOS_TSTMP	DEC	15	0	Forecast Finish
35	.INCLUDE	☐				0	0	CRM Marketing Planning: Include Structure Appl. Attrtibutes
36	CAMP_TYPE	☐	CRM_MKTPL_CAMPTYPE	CRM_MKTPL_CAMPTYPE	CHAR	4	0	Type	CRMC_MKTPL_CTYPE
37	CHANNEL	☐	CRM_MKTPL_CHANNEL	CRM_MKTPL_CHANNEL	CHAR	4	0	ID of Communication Medium	CRMC_MKTPL_CHAN
38	RESPONSIBLE	☐	BU_PARTNER_GUID	SYSUUID	RAW	16	0	Business Partner GUID
39	SMARTFORM	☐	CRMT_MKTPL_EMAIL_FORM	TDSFNAME	CHAR	30	0	Form for E-Mail	*
40	ADRESS_ID	☐	CRMT_IM_E_ID	CHAR12	CHAR	12	0	Identification for an E-mail Address	CRMC_IM_ADRESS
41	SCRIPT	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
42	SHORTCUT	☐	CRMT_MKTPL_CAMPAIGN_SHORTCUT	CHAR4	CHAR	4	0	Campaign Code
43	MAIL_FORM	☐	CRMT_MKTPL_MAIL_FORM	TDSFNAME	CHAR	30	0	Form for Sending a Letter	*
44	FAX_FORM	☐	CRMT_MKTPL_FAX_FORM	TDSFNAME	CHAR	30	0	Form for Fax	*
45	PRINT_ID	☐	CRMT_IM_PRINT_ID	CHAR12	CHAR	12	0	Profile for Print Parameters
46	SEND_PARTNER	☐	CRM_IM_SEND_PARTNER	BU_PARTNER	CHAR	10	0	Business partner for Sender Address Determination	*
47	SMS_FORM	☐	CRMT_MKTPL_SMS_FORM	TDSFNAME	CHAR	30	0	Form for SMS/Pager Services	*
48	TACTICS	☐	CRM_MKTPL_TACTICS	CRM_MKTPL_TACTICS	CHAR	4	0	Tactic	CRMC_MKTPL_TACTS
49	OBJECTIVE	☐	CRM_MKTPL_OBJECTIVE	CRM_MKTPL_OBJECTIVE	CHAR	4	0	Objective	CRMC_MKTPL_OBJTV
50	AUTH_GROUP	☐	CRM_MKTPL_AUTH_GROUP	CRM_MKTPL_AUTH_GROUP	CHAR	4	0	Authorization Group	CRMC_MKTPL_AUTHG
51	ORIG_SYSTEM	☐	CRM_MKTPL_ORIG_SYST	CHAR1	CHAR	1	0	CRM Marketing Planning - Campaign Original System
52	SPICE_SCRIPT	☐	CRM_IC_SCRNAME	CRM_IC_XMLNAME	CHAR	32	0	Name of Interaction Center (IC) WebClient Script
53	ACTION_PROFILE	☐	CRM_MKTPL_ACTION_PROFILE	PPFDCNTXT	CHAR	30	0	ID of Action Profile	*
54	CAMPAIGN_LINK	☐	CGPL_GUID16	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16-Character GUID for Projects and Activts
55	CURRENCY	☐	CRM_MKTPL_CUKY	WAERS	CUKY	5	0	MKTPL: Currency Object	TCURC
56	NO_R3_INT	☐	CRM_MKTPL_NO_R3_INT	CHAR1	CHAR	1	0	Marketing Planning: Object Not Integrated into ERP PS
57	MKT_ORG	☐	CRM_MKTPL_MORG	HROBJEC_14	CHAR	14	0	Marketing Organization
58	FILE_EXPORT_FORM	☐	CRMT_IM_EXPORT_FORM	TDSFNAME	CHAR	30	0	File Export Form	*
59	.INCLUDE	☐				0	0	Structure Additional Attributes for Campaign Automation
60	CPT_TYPE	☐	CRMT_MKTCA_CPT_TYPE	CRM_MKTCA_CPT_TYPE	CHAR	2	0	Type of Campaign Element Used
61	SURVEYID	☐	CRM_SVY_DB_SID	CHAR32	CHAR	32	0	CRM Surveys: Survey ID	CRM_SVY_DB_S
62	SURVEYVERSION	☐	CRM_SVY_DB_SVERS	NUMC10	NUMC	10	0	CRM Surveys: Survey Version
63	RECURRING	☐	CRMT_MKTCA_CPG_RECURRING	CRM_MKTCA_CPG_RECURRING	CHAR	1	0	Indicator Recurring Campaign for Camp. Automation
64	MKTCA_WFTASK	☐	CRMT_MKTCA_WFTASK	CRM_MKTCA_WFTASK	CHAR	4	0	Assignment Term Workflow for Task ID	CRMC_MKTCA_WFT
65	CAMP_PERIOD	☐	CRMT_MKTCA_PERIOD	CRM_MKTCA_PERIOD	CHAR	30	0	Period for Campaign
66	N_CAMP_PERIODS	☐	CRMT_MKTCA_NUMBER_PERIODS	CRM_MKTCA_NUMBER_PERIODS	INT4	10	0	No. of Processing Periods
67	RESPONSE_FLAG	☐	CRMT_MKTCA_RESPONSE_FLAG	XFELD	CHAR	1	0	Start for Every Respondent?
68	ET_CAMPAIGN	☐	CRMT_MKTCA_EVENT_TRIGGERED_CPG	XFELD	CHAR	1	0	Indicator for Event Triggered Campaigns
69	SCHEDULING_TYPE	☐	CRMT_MKTCA_SCHEDULING_TYPE	CRM_MKTCA_SCHEDULING_TYPE	CHAR	2	0	Scheduling Type
70	DELAY	☐	CRMT_MKTCA_DELAY	CRM_MKTCA_DELAY	INT1	3	0	Delay (Relative Scheduling)
71	DELAY_UNIT	☐	CRMT_MKTCA_DELAY_UNIT	CRM_MKTCA_DELAY_UNIT	CHAR	2	0	Unit for Delay (Relative Scheduling)
72	CAMP_PERIOD_DUR	☐	CRMT_MKTCA_PERIOD_N	INT4	INT4	10	0	Period Duration for Recurring Campaigns
73	TERR_PATH_GUID	☐	CRMT_TERRITORY_PATH_GUID	SYSUUID	RAW	16	0	Territory Path GUID
74	TERR_PATH_ID	☐	CRMT_TERRITORY_PATH_ID	CRM_TERRITORY_PATH_ID	CHAR	30	0	Territory Hierarchy ID
75	INACTIVE	☐	CRMT_MKTPL_INACTIVE	CHAR1	CHAR	1	0	Inactive Marketing Project
76	CHM_RELEVANT	☐	CRMT_MKTPL_CHM_RELEVANT	XFELD	CHAR	1	0	Open to Partners
77	EXCL_IND	☐	CRM_MKTPL_EXCL_IND	CRM_MKTPL_EXCL_IND	CHAR	1	0	Indicator: Marketing Project Is Exclusive
78	TIMEZONE_CREATED	☐	CRM_MKTPL_TIMEZONE_CREATED	TZNZONE	CHAR	6	0	Time Zone of User Who Created the Marketing Project	*
79	PROD_PL_BASIS	☐	CRM_MKTSS_PL_BASIS	CRM_MKTSS_PL_BASIS	NUMC	3	0	Product Planning Basis
80	ADI_FLAG	☐	CRM_MKTPL_ADI	CRM_MKTPL_ADI	CHAR	1	0	Abnormal Demand Indicator
81	ENROLLMENT_REQ	☐	CRM_MKTPL_ENR_ENROLLMENT_REQ	XFELD	CHAR	1	0	Indicator, that enrollment is required
82	REF_TYPE	☐	CRM_MKTPL_REF_TYPE	CRM_MKTPL_REF_TYPE_DOM	CHAR	4	0	Usage Type
83	TEMPLATE	☐	CRM_MKTPL_TEMPLATE	CRM_BOOLEAN	CHAR	1	0	Template Indicator
84	SMARTDAY_FLAG	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
85	VALIDATION_PROF	☐	CRM_CLA_VS_VAL_PROFILE_ID	CRM_CLA_VS_VAL_PROFILE_ID	CHAR	30	0	ID of Validation Sheet Profile
86	DETERM_PROC	☐	COMT_PARTNER_DETERM_PROC	COMT_PARTNER_DETERM_PROC	CHAR	8	0	ID of a Partner Determination Procedure	*
87	RATES_ORIGIN	☐	CRM_MKTGS_RATES_ORIGIN	CRM_MKTGS_RATES_ORIGIN	CHAR	1	0	Rates Origin
88	USE_FIX_TZ_UTC	☐	CRM_MKTPL_USE_FIX_TIMEZONE	CRM_BOOLEAN	CHAR	1	0	MKTPL: Use Fix Timezone UTC for Timestamp - Date/Time Conv.
89	COMB_TYPE	☐	CRM_MKTPL_LOY_COMB_TYPE	CRM_MKTPL_LOY_COMB_TYPE	CHAR	4	0	Combinability Type for Reward Rule Group
90	EXECUTION_LANG	☐	CRM_MKTPL_EXECUTION_LANGUAGE	SPRAS	LANG	1	0	Execution Language in High-Volume Scenario	*
91	BP_CORR_LANG_IND	☐	CRM_MKTPL_DETERMINE_CORR_LANG	XFELD	CHAR	1	0	Indicator: Determine BP Correspondence Language
92	NOTIF_PROF	☐	CRMT_NOTIF_PROF	CRM_NOTIF_PROF	CHAR	10	0	Notification Profile	*
93	.INCLUDE	☐				0	0	Extension Include - Marketing Objects Header
94	MKTPL_HEADER	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
95	ENROLLMENT_TYPE	☐	CRM_MKTPL_ENR_TYPE	CRM_MKTPL_ENR_TYPE	CHAR	8	0	Data Element For Enrollment Type
96	CHECK_CONSENT	☐	CRM_MKTPL_CHECK_MKT_PERMISSION	XFELD	CHAR	1	0	Check Consent (Marketing Permission)
97	.INCLUDE	☐				0	0	CRM Marketing Planner: include structure TPM/TPT attributes
98	BP_GUID	☐	BU_PARTNER_GUID	SYSUUID	RAW	16	0	Business Partner GUID
99	NODE_GUID	☐	BU_NODE_GUID	SYSUUID	RAW	16	0	GUID of Hierarchy Node
100	SALES_ORG	☐	CRMT_SALES_ORG	HROBJEC_14	CHAR	14	0	Sales Organization ID
101	DIS_CHANNEL	☐	CRMT_DISTRIBUTION_CHANNEL	CRM_DISTRIBUTION_CHANNEL	CHAR	2	0	Distribution Channel	*
102	DIVISION	☐	CRMT_DIVISION	CRM_DIVISION	CHAR	2	0	Division	*
103	BPAT_TYPE	☐	CRM_MKTPL_DEF_BPAT_TYPE	CRM_MKTPL_DEF_BPAT_TYPE	CHAR	3	0	Type of Buying Pattern
104	DEAL_GUID	☐	CGPL_GUID16	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16-Character GUID for Projects and Activts
105	TARGETGRP_GUID	☐	CRMT_TARGETGRP_GUID	SYSUUID	RAW	16	0	CRM Marketing: GUID of Target Group
106	TGRP_OWNER_GUID	☐	BU_NODE_GUID	SYSUUID	RAW	16	0	GUID of Hierarchy Node
107	ACC_PL_GUID	☐	CRM_ACC_PL_GUID	CRM_ACC_PL_GUID	RAW	16	0	Account Plan GUID
108	PPG_STATUS	☐	CRMT_PPG_STATUS	CRM_PPG_STATUS	CHAR	1	0	PPG Status
109	NO_UPLIFT_IND	☐	CRM_MKTPL_NO_UPLIFT_IND	CRM_BOOLEAN	CHAR	1	0	TPM Significant Uplift Indicator
110	INDIRECT_IND	☐	CRM_MKTPL_INDIRECT_IND	CRM_BOOLEAN	CHAR	1	0	Indirect Indicator
111	SALES_ORG_RESP	☐	CRMT_SALES_ORG_RESP	HROBJEC_14	CHAR	14	0	Organizational Unit (Sales)
112	VOLUME_ORIGIN	☐	CRM_MKTPL_VOLUME_MAINTENANCE	CRM_MKTPL_VOLUME_MAINTENANCE	CHAR	1	0	Volume Maintenance Location
113	.INCLUDE	☐				0	0	Include: Transfer Information for Various Recipients
114	CREATED_IN_APO	☐	CRM_MKTPL_CREATED_IN_APO	CHAR1	CHAR	1	0	Marketing Project Created in APO
115	APO_TRANS_STATUS	☐	CRM_MKTPL_APO_TRANS_STATUS	CRM_MKTPL_TRANS_STATUS	CHAR	1	0	APO Transfer Status for Marketing Element
116	APO_TRANS_STATUSTXT	☐	CRM_MKTPL_APO_TRANS_STATUSTXT	TEXT40	CHAR	40	0	Marketing Planning: Text for APO Transfer Status
117	APO_ELEMENT_EXTID	☐	CRM_MKTPL_APO_ID	CHAR22	CHAR	22	0	APO Integration: Campaign ID in APO
118	APO_LOGSYS	☐	RFCDEST	RFCDEST	CHAR	32	0	Logical Destination (Specified in Function Call)	*
119	CREATED_IN_R3	☐	CRM_MKTPL_CREATED_IN_R3	CHAR1	CHAR	1	0	Marketing Element Created in ERP PS
120	R3_TRANS_STATUS	☐	CRM_MKTPL_R3_TRANS_STATUS	CRM_MKTPL_TRANS_STATUS	CHAR	1	0	ERP Transfer Status for Marketing Project
121	R3_TRANS_STATUSTXT	☐	CRM_MKTPL_R3_TRANS_STATUSTXT	TEXT40	CHAR	40	0	Marketing Planning: Text for ERP Transfer Status
122	R3_ELEMENT_EXTID	☐	CGPL_R3_POSID	CGPL_EXTID	CHAR	24	0	Work Breakdown Structure Element (WBS Element)
123	R3_LOGSYS	☐	CRM_MKTPL_R3_RFCDEST	RFCDEST	CHAR	32	0	Marketing Planning: Logical System for ERP Integration	*
124	R3_OLD_LOGIC	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag
125	CREATED_IN_RTOM	☐	CRM_MKT_RTOM_CREATED	BOOLE	CHAR	1	0	Created in RTOM
126	RTOM_TRANS_STATUS	☐	CRM_MKT_RTOM_TRANS_STATUS	CRM_MKT_RTOM_TRANS_STATUS	CHAR	1	0	Transfer Status for RTOM
127	RTOM_TRANS_STATUSTXT	☐	CRM_MKTPL_RTOM_TRANS_STATUSTXT	TEXT40	CHAR	40	0	RTOM Transfer Text
128	RTOM_PUBLISHED_DATE	☐	DATUM	DATUM	DATS	8	0	Date
129	RTOM_PUBLISHED_TIME	☐	UZEIT	UZEIT	TIMS	6	0	Time
130	STSMA	☐	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	*
131	.INCLUDE	☐				0	0
132	.INCLUDE	☐				0	0

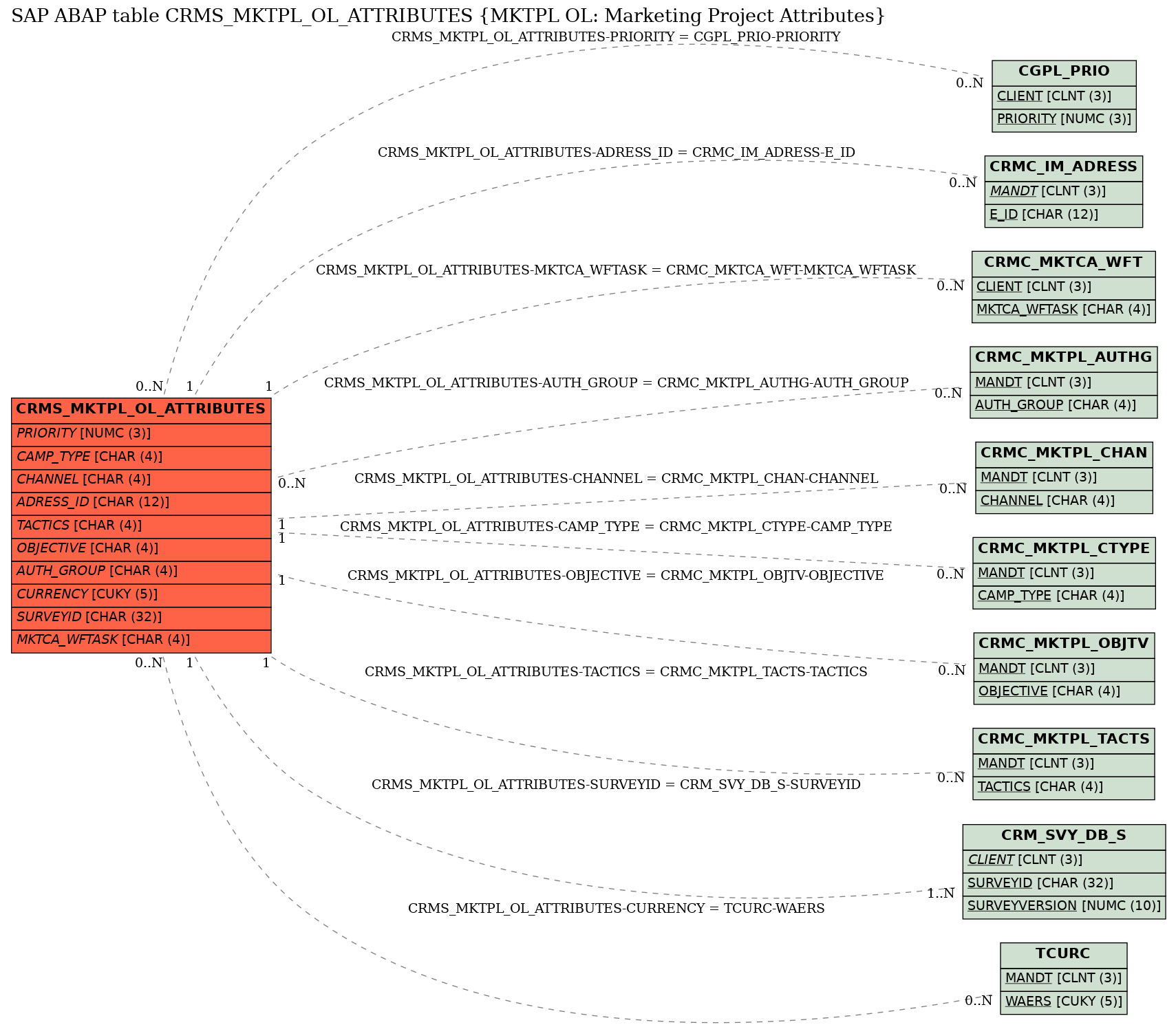

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMS_MKTPL_OL_ATTRIBUTES	ADRESS_ID	CRMC_IM_ADRESS	E_ID	REF	1	CN
2	CRMS_MKTPL_OL_ATTRIBUTES	AUTH_GROUP	CRMC_MKTPL_AUTHG	AUTH_GROUP	KEY
3	CRMS_MKTPL_OL_ATTRIBUTES	CAMP_TYPE	CRMC_MKTPL_CTYPE	CAMP_TYPE	REF	1	CN
4	CRMS_MKTPL_OL_ATTRIBUTES	CHANNEL	CRMC_MKTPL_CHAN	CHANNEL	REF	1	CN
5	CRMS_MKTPL_OL_ATTRIBUTES	CURRENCY	TCURC	WAERS
6	CRMS_MKTPL_OL_ATTRIBUTES	MKTCA_WFTASK	CRMC_MKTCA_WFT	MKTCA_WFTASK	KEY	1	CN
7	CRMS_MKTPL_OL_ATTRIBUTES	OBJECTIVE	CRMC_MKTPL_OBJTV	OBJECTIVE	REF	1	CN
8	CRMS_MKTPL_OL_ATTRIBUTES	PRIORITY	CGPL_PRIO	PRIORITY	KEY
9	CRMS_MKTPL_OL_ATTRIBUTES	SURVEYID	CRM_SVY_DB_S	SURVEYID	KEY	1	N
10	CRMS_MKTPL_OL_ATTRIBUTES	TACTICS	CRMC_MKTPL_TACTS	TACTICS	REF	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	520
