SAP ABAP Table CRMS_MKTPL_IB_INT (Attributes of Initiative Element (IBOM MKTPL))

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MKT-MPL (Application Component) Marketing Planner
     ⤷ CRM_MKTPL_IB_MDF_INT (Package) IBOM Package for MDF Initiative Elements

Basic Data

Table Category	INTTAB	Structure
Structure	CRMS_MKTPL_IB_INT	Table Relationship Diagram
Short Description	Attributes of Initiative Element (IBOM MKTPL)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Include for Basic Data
2	GUID	☐	CRM_MKTPL_IB_INI_GUID		RAW	16	0	Initiative
3	EXTERNAL_ID	☐	CRM_MKTPL_INITIATIVEID	CGPL_EXTID	CHAR	24	0	MDF Initiative
4	CAMP_TYPE	☐	CRM_MKTPL_CAMPTYPE	CRM_MKTPL_CAMPTYPE	CHAR	4	0	Type	*
5	OBJECTIVE	☐	CRM_MKTPL_OBJECTIVE	CRM_MKTPL_OBJECTIVE	CHAR	4	0	Objective
6	TACTICS	☐	CRM_MKTPL_TACTICS	CRM_MKTPL_TACTICS	CHAR	4	0	Tactic
7	PRIORITY	☐	CRM_MKTPL_IB_PRIORITY	NUMC3	NUMC	3	0	Priority String Element (iBom MKTPL)
8	RESPONSIBLE	☐	BU_PARTNER_GUID	SYSUUID	RAW	16	0	Business Partner GUID
9	TERR_PATH_GUID	☐	CRMT_TERRITORY_PATH_GUID	SYSUUID	RAW	16	0	Territory Path GUID
10	TERR_PATH_ID	☐	CRMT_TERRITORY_PATH_ID	CRM_TERRITORY_PATH_ID	CHAR	30	0	Territory Hierarchy ID
11	ACTION_PROFILE	☐	CRM_MKTPL_ACTION_PROFILE	PPFDCNTXT	CHAR	30	0	ID of Action Profile	*
12	CURRENCY	☐	CRM_MKTPL_CUKY	WAERS	CUKY	5	0	MKTPL: Currency Object	TCURC
13	CALENDAR_ID	☐	WFCID	WFCID	CHAR	2	0	Factory Calendar	*
14	STSMA	☐	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	*
15	PARENT_GUID	☐	CRM_MKTPL_IB_MKTPROJECT_GUID		RAW	16	0	Marketing Project
16	BWIDENTIFIER	☐	CGPL_BWIDENTIFIER	CGPL_BWIDENTIFIER	NUMC	8	0	Project Planning - BW Identification
17	NO_R3_INT	☐	CRM_MKTPL_NO_R3_INT	CHAR1	CHAR	1	0	Marketing Planning: Object Not Integrated into ERP PS
18	REF_TYPE	☐	CRM_MKTPL_REF_TYPE	CRM_MKTPL_REF_TYPE_DOM	CHAR	4	0	Usage Type
19	.INCLUDE	☐				0	0	Include for Dates and Time
20	PLANSTART	☐	CGPL_PLANSTART	BCOS_TSTMP	DEC	15	0	Planned start date
21	PLANFINISH	☐	CGPL_PLANFINISH	BCOS_TSTMP	DEC	15	0	Planned Finish Date
22	.INCLUDE	☐				0	0	Include for OrgData
23	MKT_ORG	☐	CRM_MKTPL_MORG	HROBJEC_14	CHAR	14	0	Marketing Organization
24	SALES_ORG	☐	CRMT_SALES_ORG	HROBJEC_14	CHAR	14	0	Sales Organization ID
25	DIS_CHANNEL	☐	CRMT_DISTRIBUTION_CHANNEL	CRM_DISTRIBUTION_CHANNEL	CHAR	2	0	Distribution Channel	*
26	DIVISION	☐	CRMT_DIVISION	CRM_DIVISION	CHAR	2	0	Division	*
27	SALES_ORG_RESP	☐	CRMT_SALES_ORG_RESP	HROBJEC_14	CHAR	14	0	Organizational Unit (Sales)
28	.INCLUDE	☐				0	0
29	.INCLUDE	☐				0	0
30	TASK_LEVEL	☐	CRM_MKTPL_LEVEL	CRM_MKTPL_INDEX	INT1	3	0	Hierarchy Level
31	TIMEZONE_CREATED	☐	CRM_MKTPL_TIMEZONE_CREATED	TZNZONE	CHAR	6	0	Time Zone of User Who Created the Marketing Project	*
32	OBJECT_TYPE	☐	CGPL_OBJECT_TYPE	CHAR3	CHAR	3	0	Object Type in Project Planning
33	TOTAL_EST_AMOUNT	☐	CRM_MKTPL_INI_EST_COST	WERTV8	CURR	15	2	Estimated Cost
34	TEMPLATE	☐	CRM_MKTPL_TEMPLATE	CRM_BOOLEAN	CHAR	1	0	Template Indicator

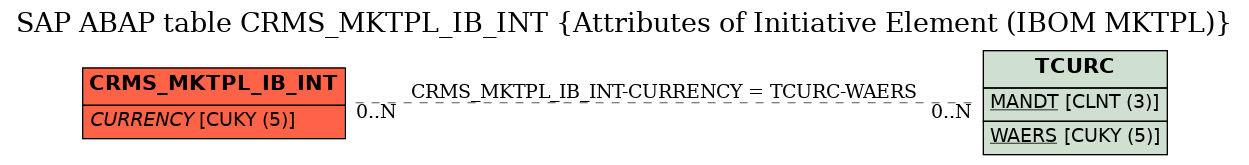

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMS_MKTPL_IB_INT	CURRENCY	TCURC	WAERS

History

Last changed by/on	SAP	20130604
SAP Release Created in	520
