SAP ABAP Table CRMS_ICM_REL_ATTRIBUTE (ICM Relationship: Relationship attribute (object layer))
Hierarchy
☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IPS-ICM-REL (Application Component) Relationships and Reliability
     ⤷ CRM_ICM_REL_APP (Package) CRM ICM Relation - Relation application
Basic Data
Table Category INTTAB    Structure

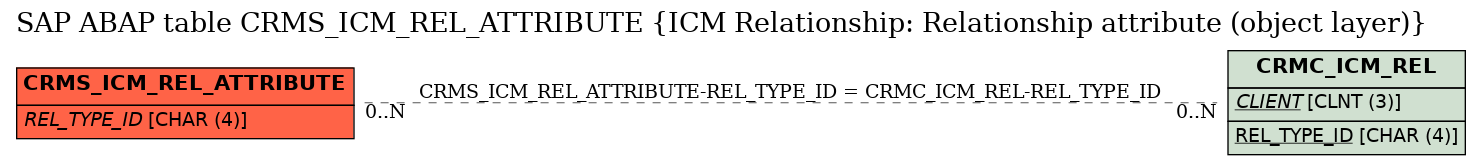

Structure CRMS_ICM_REL_ATTRIBUTE   Table Relationship Diagram
Short Description ICM Relationship: Relationship attribute (object layer)
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 .INCLUDE       0   0   ICM Relationship: Relationship
2 CLIENT MANDT MANDT CLNT 3   0   Client *
3 GUID CRM_ICM_REL_GUID SYSUUID RAW 16   0   ICM Relationship: Relationship GUID
4 .INCLUDE       0   0   ICM Relationship: Relationship attributes
5 REL_TYPE_ID CRM_ICM_REL_TYPE_ID   CHAR 4   0   CRM ICM Relationship Type ID CRMC_ICM_REL
6 SOURCE_GUID CRM_ICM_REL_ENTITY_GUID CHAR45 CHAR 45   0   ICM Relationship: Relationship DB Table Entity GUID
7 TARGET_GUID CRM_ICM_REL_ENTITY_GUID CHAR45 CHAR 45   0   ICM Relationship: Relationship DB Table Entity GUID
8 SECURITY_LEVEL CRM_AUTH_SCOPE CRM_AUTH_SCOPE NUMC 6   0   Authorization Scope *
9 EXPUNGE_DATE CRM_ICM_REL_DATE SYDATS DATS 8   0   ICM Relationship: Dates
10 VALID_FROM CRM_ICM_REL_DATE SYDATS DATS 8   0   ICM Relationship: Dates
11 VALID_TO CRM_ICM_REL_DATE SYDATS DATS 8   0   ICM Relationship: Dates
12 SOURCE_TYPE CRM_ICM_REL_SRC_ENT_TYPE_ID CRM_ICM_REL_SRC_ENTITY_TYPE CHAR 10   0   CRM ICM Relationship, Entity Type ID
13 TARGET_TYPE CRM_ICM_REL_TGT_ENT_TYPE_ID CRM_ICM_REL_TGT_ENTITY_TYPE CHAR 10   0   CRM ICM Relationship, Entity Type ID
14 DELETED CRM_ICM_REL_FLAG FLAG CHAR 1   0   ICM Relationship: Delete Flag
15 ARCHIV_STATUS CRM_ICM_REL_ARCHIV_STATUS CRM_ICM_REL_ARCHIV_STATUS CHAR 1   0   ICM Relationship Archive Status
16 ENTITIES_HASH CRM_ICM_REL_ENTITIES_HASH   CHAR 90   0   ICM Relationship: Entities Hash
17 .INCLUDE       0   0   ICM Relationship: Administrative data for relation
18 CREATED_ON CRM_ICM_REL_ADMIN_DATE TZNTSTMPS DEC 15   0   ICM Relationship: Administration Date
19 CREATED_BY CRM_ICM_REL_USER SYCHAR12 CHAR 12   0   ICM Relationship: User Name
20 CHANGED_ON CRM_ICM_REL_ADMIN_DATE TZNTSTMPS DEC 15   0   ICM Relationship: Administration Date
21 CHANGED_BY CRM_ICM_REL_USER SYCHAR12 CHAR 12   0   ICM Relationship: User Name
22 CREATED_BY_ORG CRM_ICM_REL_ORG BU_PARTNER CHAR 10   0   ICM Relationship: Organizational Element *
23 CHANGED_BY_ORG CRM_ICM_REL_ORG BU_PARTNER CHAR 10   0   ICM Relationship: Organizational Element *
24 .INCLUDE       0   0   ICM: Relationship include structure
25 CRM_ICM_REL DUMMY DUMMY CHAR 1   0   Dummy function in length 1
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 CRMS_ICM_REL_ATTRIBUTE REL_TYPE_ID CRMC_ICM_REL REL_TYPE_ID
History
Last changed by/on SAP  20130604
SAP Release Created in 700
