SAP ABAP Table CRMS_FM_LRTP_PMDC_MESSAGE (Message type for PMDC)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-FM-LR-TPM (Application Component) Live Rates Planning for Trade Promotion Management
     ⤷ CRM_FM_LR_TPM_PMDC (Package) Live Rates TPM Pertinent Master Data Changes

Basic Data

Table Category	INTTAB	Structure
Structure	CRMS_FM_LRTP_PMDC_MESSAGE	Table Relationship Diagram
Short Description	Message type for PMDC

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Return Parameter
2	TYPE	☐	BAPI_MTYPE	SYCHAR01	CHAR	1	0	Message type: S Success, E Error, W Warning, I Info, A Abort
3	ID	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	T100A
4	NUMBER	☐	SYMSGNO	SYMSGNO	NUMC	3	0	Message Number
5	MESSAGE	☐	BAPI_MSG	TEXT220	CHAR	220	0	Message Text
6	LOG_NO	☐	BALOGNR	BALOGNR	CHAR	20	0	Application log: log number	BALHDR
7	LOG_MSG_NO	☐	BALMNR	BALMNR	NUMC	6	0	Application log: Internal message serial number	BALM
8	MESSAGE_V1	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
9	MESSAGE_V2	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
10	MESSAGE_V3	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
11	MESSAGE_V4	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
12	PARAMETER	☐	BAPI_PARAM	SWC_ELEM	CHAR	32	0	Parameter Name
13	ROW	☐	BAPI_LINE	INT4	INT4	10	0	Lines in parameter
14	FIELD	☐	BAPI_FLD	FDNAME	CHAR	30	0	Field in parameter	*
15	SYSTEM	☐	BAPILOGSYS	LOGSYS	CHAR	10	0	Logical system from which message originates	*
16	.INCLUDE	☐				0	0	Structure for the simple product changes
17	MD_GUID	☐	CRM_FM_LRTP_PMDC_MD_GUID	SYSUUID	RAW	16	0	PMDC Master Data GUID (Prod/Prod Cat)
18	ACTION	☐	CRM_FM_LRTP_KFP_ACTION	CRM_FM_LRTP_KFP_ACTION	CHAR	1	0	Action Triggered for Updating Planning Combinations
19	TIMESTAMP	☐	CRM_FM_LRTP_PMDC_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Time Stamp for PMDC Relevant Change
20	CHG_TYPE	☐	CRM_FM_LRTP_PMDC_CHANGE_TYPE	CRM_FM_LRTP_PMDC_CHANGE_TYPE	CHAR	4	0	Type of Changes for PMDC
21	ELM_ID	☐	CRM_FM_LR_PLAN_ELEMENT_ID	CRM_FM_LR_OBJECT_ID	CHAR	10	0	Live Rates Planning Element ID

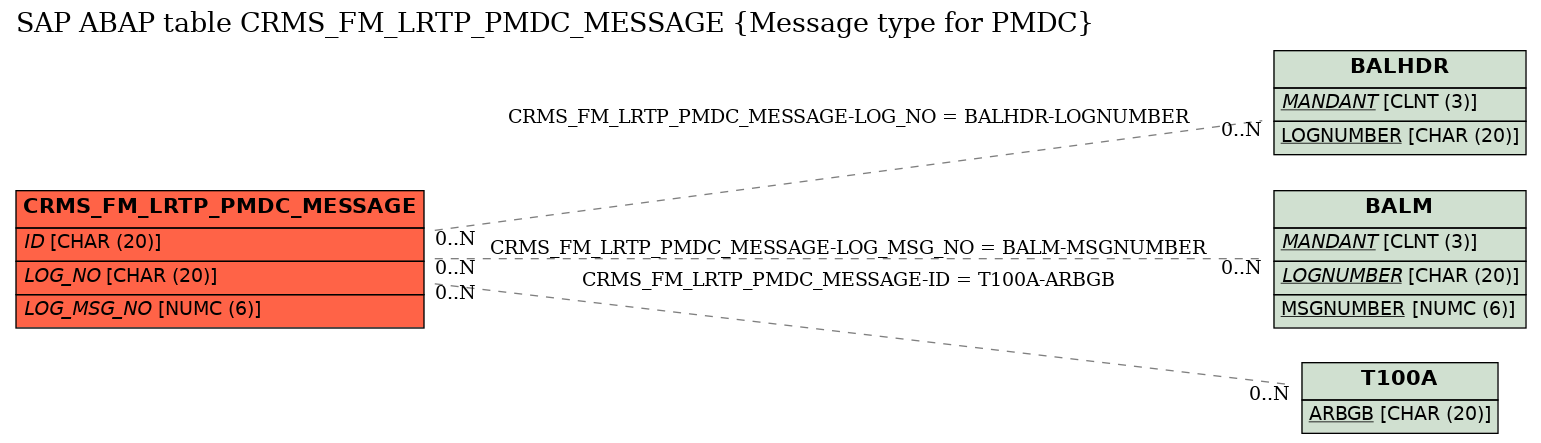

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMS_FM_LRTP_PMDC_MESSAGE	ID	T100A	ARBGB
2	CRMS_FM_LRTP_PMDC_MESSAGE	LOG_MSG_NO	BALM	MSGNUMBER
3	CRMS_FM_LRTP_PMDC_MESSAGE	LOG_NO	BALHDR	LOGNUMBER

History

Last changed by/on	SAP	20130604
SAP Release Created in	701
