SAP ABAP Table CRMS_BRFP_WD_COMMON_DATA (CRM BRFplus Activity Model UI structure - Common Data)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IPS (Application Component) Public Sector
     ⤷ CRM_PS_BRFPLUS (Package) CRM / Social Services BRFPlus functionalties

Basic Data

Table Category	INTTAB	Structure

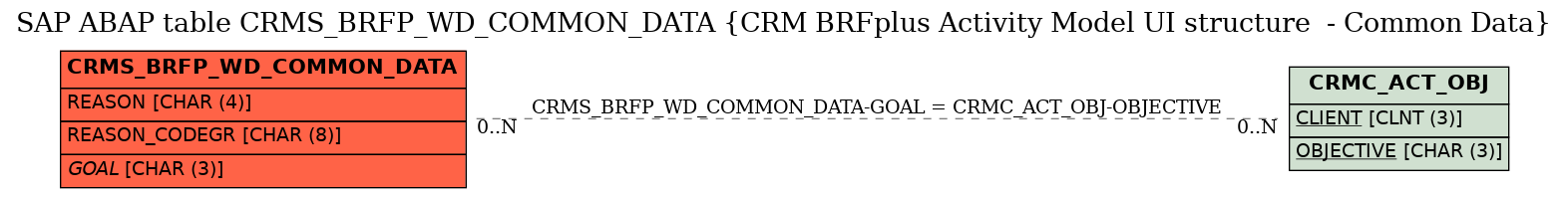

Structure	CRMS_BRFP_WD_COMMON_DATA	Table Relationship Diagram
Short Description	CRM BRFplus Activity Model UI structure - Common Data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Action CRM Activity - Common Data Structure
2	TRANSACTION_TYPE	☐	CRMT_PROCESS_TYPE	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
3	CASE_EXPR	☐	FDT_UUID	SYSUUID_C	CHAR	32	0	FDT: Universal Unique Identifier
4	REASON	☐	QCODE	QCODE	CHAR	4	0	Code	*
5	REASON_CODEGR	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
6	STATUS	☐	CRM_J_STATUS	CRM_J_STATUS	CHAR	5	0	Object Status
7	PRIORITY	☐	CRMT_PRIORITY	SC_PRIO	NUMC	1	0	Activity Priority	*
8	CATEGORY	☐	CRMT_ACTIVITY_CATEGORY	CRM_ACTIVITY_CATEGORY	CHAR	3	0	Activity Category (Communication Type)	*
9	GOAL	☐	CRMT_OBJECTIVE	CRM_OBJECTIVE	CHAR	3	0	Goal of an Activity	CRMC_ACT_OBJ
10	START_EXPR	☐	FDT_UUID	SYSUUID_C	CHAR	32	0	FDT: Universal Unique Identifier
11	END_EXPR	☐	FDT_UUID	SYSUUID_C	CHAR	32	0	FDT: Universal Unique Identifier
12	BP_NO_DETERM	☐	BOOLE_D	BOOLE	CHAR	1	0	Data element for domain BOOLE: TRUE (='X') and FALSE (=' ')
13	TRANS_HIST_EXPR	☐	FDT_UUID	SYSUUID_C	CHAR	32	0	FDT: Universal Unique Identifier
14	CALLED_IN_EC	☐	BOOLE_D	BOOLE	CHAR	1	0	Data element for domain BOOLE: TRUE (='X') and FALSE (=' ')
15	LANGUAGE_EXPR	☐	FDT_UUID	SYSUUID_C	CHAR	32	0	FDT: Universal Unique Identifier
16	ACT_TEMP_EXPR	☐	FDT_UUID	SYSUUID_C	CHAR	32	0	FDT: Universal Unique Identifier
17	CALED_IN_EC_EXPR	☐	FDT_UUID	SYSUUID_C	CHAR	32	0	FDT: Universal Unique Identifier
18	CASE_NAME	☐	CRM_PS_4S_BRFP_RESOBJ_NAME		STRG	0	0	Result Object Name for CRM Search Expression Type
19	START_NAME	☐	CRM_PS_4S_BRFP_RESOBJ_NAME		STRG	0	0	Result Object Name for CRM Search Expression Type
20	END_NAME	☐	CRM_PS_4S_BRFP_RESOBJ_NAME		STRG	0	0	Result Object Name for CRM Search Expression Type
21	TRANS_HIST_NAME	☐	CRM_PS_4S_BRFP_RESOBJ_NAME		STRG	0	0	Result Object Name for CRM Search Expression Type
22	CALED_IN_EC_NAME	☐	CRM_PS_4S_BRFP_RESOBJ_NAME		STRG	0	0	Result Object Name for CRM Search Expression Type
23	LANGUAGE_NAME	☐	CRM_PS_4S_BRFP_RESOBJ_NAME		STRG	0	0	Result Object Name for CRM Search Expression Type
24	ACT_TEMP_NAME	☐	CRM_PS_4S_BRFP_RESOBJ_NAME		STRG	0	0	Result Object Name for CRM Search Expression Type
25	TRANSACTION_TYPE_TXT	☐	CHAR30	CHAR30	CHAR	30	0	30 Characters
26	REASON_TXT	☐	CHAR30	CHAR30	CHAR	30	0	30 Characters
27	STATUS_TXT	☐	CHAR30	CHAR30	CHAR	30	0	30 Characters
28	PRIORITY_TXT	☐	CHAR30	CHAR30	CHAR	30	0	30 Characters
29	CATEGORY_TXT	☐	CHAR30	CHAR30	CHAR	30	0	30 Characters
30	GOAL_TXT	☐	CHAR30	CHAR30	CHAR	30	0	30 Characters

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMS_BRFP_WD_COMMON_DATA	GOAL	CRMC_ACT_OBJ	OBJECTIVE

History

Last changed by/on	SAP	20100420
SAP Release Created in	701
