SAP ABAP Table CRMORDERPHRIPR (Business Transaction: Attributes of Incom.Relations of PHIOs)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BF-COM (Application Component) Content Management
     ⤷ CRM_KNOWLEDGE (Package) Content Management in CRM

Basic Data

Table Category	TRANSP	Transparent table

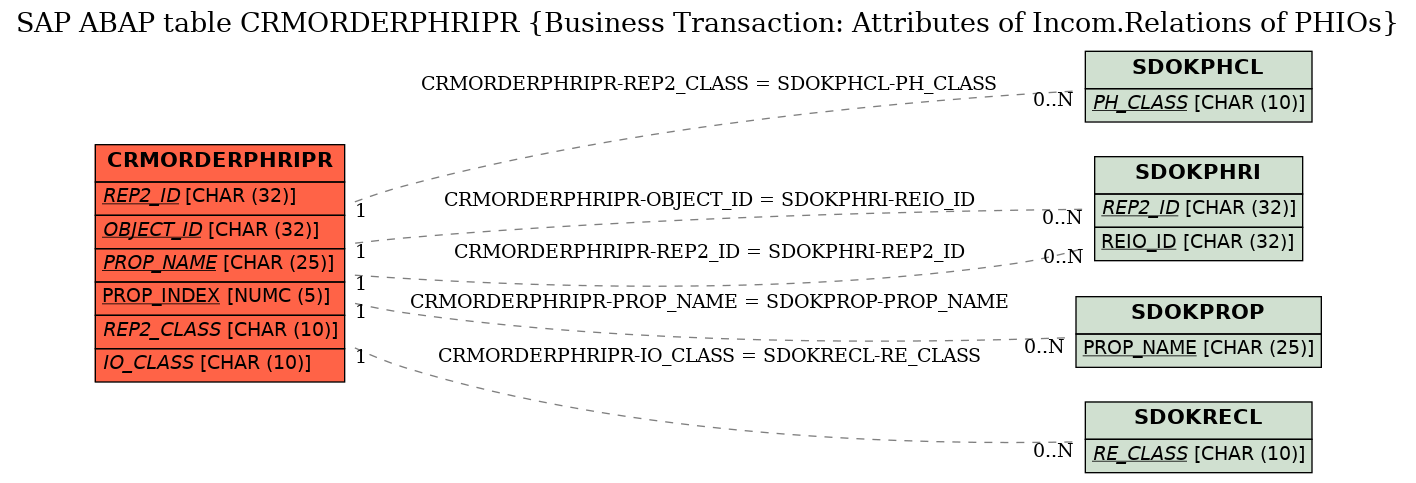

Transparent table	CRMORDERPHRIPR	Table Relationship Diagram
Short Description	Business Transaction: Attributes of Incom.Relations of PHIOs

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	REP2_ID	☑	SDOK_PHID	SDOK_DOCID	CHAR	32	0	Physical document	SDOKPHRI
2	OBJECT_ID	☑	SDOK_REID	SDOK_DOCID	CHAR	32	0	Relationship between logical and physical documents	SDOKPHRI
3	PROP_NAME	☑	SDOK_PROPN	SDOK_PROPN	CHAR	25	0	Attribute of a document or a relationship	SDOKPROP
4	PROP_INDEX	☑	SDOK_INDX	SYNUM05	NUMC	5	0	KPro: General counter (uniqueness in DB)
5	REP2_CLASS	☐	SDOK_CLASS	SDOK_CLASS	CHAR	10	0	Document class	SDOKPHCL
6	IO_CLASS	☐	SDOK_RECL	SDOK_CLASS	CHAR	10	0	Relationship class	SDOKRECL
7	PROP_VALUE	☐	SDOK_PROPV	SDOK_PROPV	CHAR	64	0	Attribute Value
8	PROP_SECI	☐	SDOK_PROPI	SDOK_PROPI	CHAR	12	0	Attribute feature (shortened)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMORDERPHRIPR	IO_CLASS	SDOKRECL	RE_CLASS	REF	1	CN
2	CRMORDERPHRIPR	OBJECT_ID	SDOKPHRI	REIO_ID	KEY	1	CN
3	CRMORDERPHRIPR	PROP_NAME	SDOKPROP	PROP_NAME	KEY	1	CN
4	CRMORDERPHRIPR	REP2_CLASS	SDOKPHCL	PH_CLASS	REF	1	CN
5	CRMORDERPHRIPR	REP2_ID	SDOKPHRI	REP2_ID	KEY	1	CN

History

Last changed by/on	SAP	20030214
SAP Release Created in	400
