SAP ABAP Table CRMM_BUS_SET0020_WP_BW (BI Extraction: CRM Shipping Data (for Profiles))

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MD-BP-DAT (Application Component) CRM Specific Business Partner Data
     ⤷ CRMM_BUPA_PROFILE_FRG (Package) Profiles for CRM Datasets

Basic Data

Table Category	INTTAB	Structure

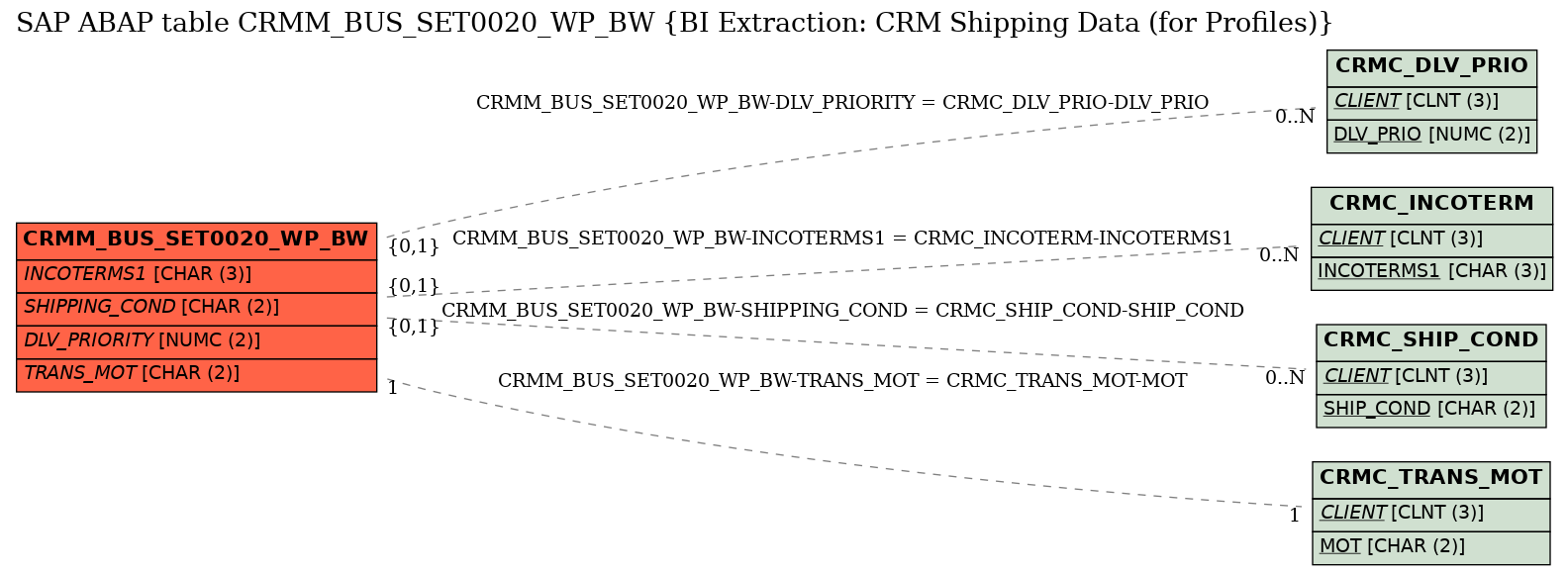

Structure	CRMM_BUS_SET0020_WP_BW	Table Relationship Diagram
Short Description	BI Extraction: CRM Shipping Data (for Profiles)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
2	PARTNER	☐	BU_PARTNER	BU_PARTNER	CHAR	10	0	Business Partner Number	*
3	PROFILE_ID	☐	CRMT_SPL_BUPA_PROFILE_ID	CRM_SPL_BUPA_PROFILE_ID	CHAR	10	0	Profile ID	*
4	.INCLUDE	☐				0	0	Internal Structure for Sales and Distribution Area
5	SALES_ORG	☐	CRMT_SALES_ORG	HROBJEC_14	CHAR	14	0	Sales Organization ID
6	CHANNEL	☐	CRMT_DISTRIBUTION_CHANNEL	CRM_DISTRIBUTION_CHANNEL	CHAR	2	0	Distribution Channel	*
7	DIVISION	☐	CRMT_DIVISION	CRM_DIVISION	CHAR	2	0	Division	*
8	.INCLUDE	☐				0	0	CRM BP Set Structure for Shipping Data
9	INCOTERMS1	☐	CRMT_INCOTERMS1	CRM_INCOTERMS1	CHAR	3	0	Incoterms (Part 1)	CRMC_INCOTERM
10	INCOTERMS2	☐	CRMT_INCOTERMS2	CRM_INCOTERMS2	CHAR	28	0	Incoterms (Part 2)
11	SHIPPING_COND	☐	CRMT_SHIP_COND	CRM_SHIP_COND	CHAR	2	0	Shipping Conditions	CRMC_SHIP_COND
12	OVER_DLV_TOL	☐	CRMT_OVER_DLV_TOL	PRZ21	DEC	3	1	Overdelivery Tolerance Limit
13	UNDER_DLV_TOL	☐	CRMT_UNDER_DLV_TOL	PRZ21	DEC	3	1	Underdelivery Tolerance Limit
14	UNLIM_DLV_TOL	☐	CRMT_DELI_UNLIM_TOL	CRM_BOOLEAN	CHAR	1	0	Indicator: Unlimited Overdelivery Allowed
15	DLV_PRIORITY	☐	CRMT_DLV_PRIO	CRM_DLV_PRIO	NUMC	2	0	Delivery Priority	CRMC_DLV_PRIO
16	ORDER_COMBINED	☐	CRMT_ORDERCOMBIND	CRM_BOOLEAN	CHAR	1	0	Indicator: Order Combination
17	PARTIAL_DLV	☐	CRMT_PART_DLV	CRM_PART_DLV	CHAR	1	0	Delivery Control
18	TRANS_MOT	☐	CRMT_TRANS_MOT	CRM_TRANS_MOT	CHAR	2	0	Mode of Transport	CRMC_TRANS_MOT
19	PART_DLV_ITM	☐	CRMT_PART_DLV_ITM	CRM_PART_DLV_ITM	CHAR	1	0	Delivery Control (Item)
20	INV_BEFORE_GI	☐	CRMT_BEFORE_LOADING	CRM_BEFORE_LOADING	CHAR	1	0	Invoice Before Goods Issue (IBGI)
21	MAX_NO_DLV	☐	CRMT_MAX_PL_DLV		DEC	1	0	Maximum number of partial deliveries allowed per item

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMM_BUS_SET0020_WP_BW	DLV_PRIORITY	CRMC_DLV_PRIO	DLV_PRIO	REF	C	CN
2	CRMM_BUS_SET0020_WP_BW	INCOTERMS1	CRMC_INCOTERM	INCOTERMS1	REF	C	CN
3	CRMM_BUS_SET0020_WP_BW	SHIPPING_COND	CRMC_SHIP_COND	SHIP_COND	REF	C	CN
4	CRMM_BUS_SET0020_WP_BW	TRANS_MOT	CRMC_TRANS_MOT	MOT		1	1

History

Last changed by/on	SAP	20130604
SAP Release Created in	520
