SAP ABAP Table CRMD_WR_BRF_EXP (Database Table for Created Web Request Expressions)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-ISE-WBF (Application Component) Web Forms
     ⤷ CRM_SERVICE_WEBREQUEST_BRF (Package) Business Rule Framework Objectives for Web Requests

Basic Data

Table Category	TRANSP	Transparent table

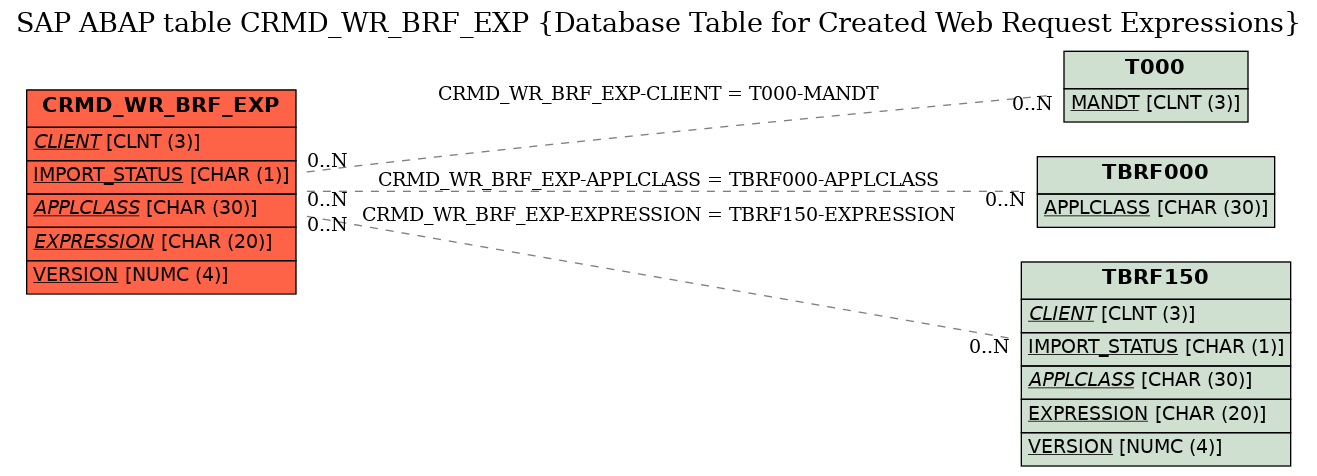

Transparent table	CRMD_WR_BRF_EXP	Table Relationship Diagram
Short Description	Database Table for Created Web Request Expressions

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	IMPORT_STATUS	☑	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
3	APPLCLASS	☑	BRF_APPLCLASS	BRF_APPLCLASS	CHAR	30	0	BRF: Application Class	TBRF000
4	EXPRESSION	☑	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
5	VERSION	☑	BRF_EXPRESSION_VERSION	BRF_VERSION	NUMC	4	0	Expression Version
6	XPATH	☐	CRMT_WR_XPATH		CHAR	255	0	XML Path Language Expression for Web Request
7	HEADER	☐	CRMT_WR_HEADER_NAME	TEXT40	CHAR	40	0	Administration Field for Web Request
8	SERVICE_PARAM	☐	UWS_SERVICE_PARAMETER_VALUE		CHAR	254	0	Service Parameter Value
9	XPATH_OPT	☐	UXB_FLAG	UXB_FLAG	CHAR	1	0	Indicator (X or Space)
10	HEADER_OPT	☐	UXB_FLAG	UXB_FLAG	CHAR	1	0	Indicator (X or Space)
11	SERVICE_PARA_OPT	☐	UXB_FLAG	UXB_FLAG	CHAR	1	0	Indicator (X or Space)
12	REQ_TYPE	☐	CRMT_REQ_TYPE	CRM_REQ_TYPE	CHAR	10	0	Request Category	*
13	DDIC_FIELD	☐	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMD_WR_BRF_EXP	APPLCLASS	TBRF000	APPLCLASS
2	CRMD_WR_BRF_EXP	CLIENT	T000	MANDT
3	CRMD_WR_BRF_EXP	EXPRESSION	TBRF150	EXPRESSION

History

Last changed by/on	SAP	20110908
SAP Release Created in	500
