SAP ABAP Table CRMD_TC_LOCK (TC: Lock Management)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-ITT-ETC-BTX (Application Component) Business Transaction
     ⤷ CRM_TC_BTX_LOCKS (Package) Toll Collection: Lock extension

Basic Data

Table Category	TRANSP	Transparent table

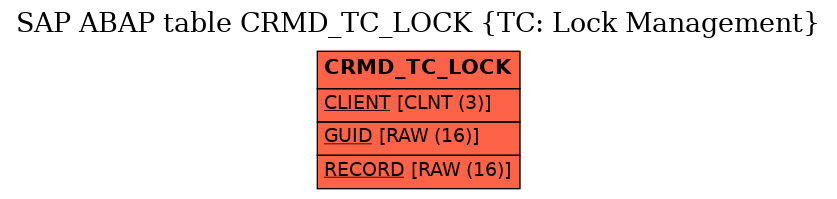

Transparent table	CRMD_TC_LOCK	Table Relationship Diagram
Short Description	TC: Lock Management

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	Key fields complex objects
2	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
3	GUID	☑	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
4	RECORD	☑	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	.INCLUDE	☐				0	0	TC: Lock Mangement
6	SOURCE	☐	CRMT_TC_LOCK_SOURCE	CRMT_IST_SOURCE	CHAR	3	0	TC: Origin of a Lock Object
7	LOCK_LEVEL	☐	CRMT_TC_LOCK_LEVEL	NUMC2	NUMC	2	0	TC: Lock Level for an IS-T Lock Object
8	REASON	☐	CRMT_TC_LOCK_REASON	IST_LOCK_REASON	CHAR	8	0	TC: Reason for Lock Object	*
9	VALID_TO	☐	CRMT_TC_VALID_TO	BCOS_TSTMP	DEC	15	0	TC: Valid To (Time Stamp)
10	.INCLUDE	☐				0	0

History

Last changed by/on	SAP	20100420
SAP Release Created in	700
