SAP ABAP Table CRMD_PPM_BO_REL (Relations between BOL Entities)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-ANA-PPM-IL (Application Component) Interaction Layer
     ⤷ CRM_PPM_IL (Package) Pipeline Performance Managment - Interaction Layer

Basic Data

Table Category	TRANSP	Transparent table

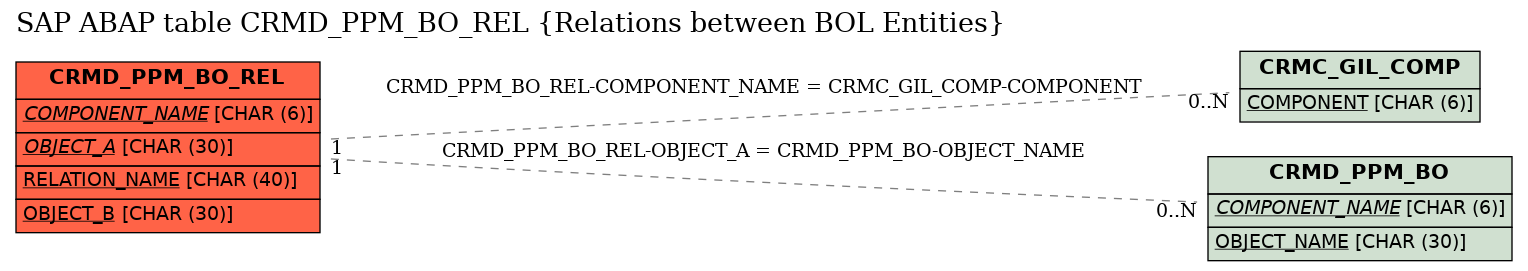

Transparent table	CRMD_PPM_BO_REL	Table Relationship Diagram
Short Description	Relations between BOL Entities

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	COMPONENT_NAME	☑	CRMT_COMPONENT_NAME	CRM_COMPONENT_NAME	CHAR	6	0	Component Name	CRMC_GIL_COMP
2	OBJECT_A	☑	CRMT_EXT_OBJ_A_NAME	CRM_OBJEXT_NAME	CHAR	30	0	External Name of Source Object	CRMD_PPM_BO
3	RELATION_NAME	☑	CRMT_RELATION_NAME	CRM_RELATION_NAME	CHAR	40	0	Relation Name
4	OBJECT_B	☑	CRMT_EXT_OBJ_B_NAME	CRM_OBJEXT_NAME	CHAR	30	0	External Name of Assigned Object
5	CARD_A	☐	CRMT_CARD_A	CRM_CARD	CHAR	1	0	Cardinality of Source Object
6	CARD_B	☐	CRMT_CARD_B	CRM_CARD	CHAR	1	0	Cardinality of the Assigned Object
7	RELATION_KIND	☐	CRMT_RELATION_KIND	CRM_RELATION_KIND	CHAR	1	0	Type of Object Relation
8	DO_NOT_BUFFER	☐	CRMT_GENIL_BOOLEAN	CRM_GENIL_BOOLEAN	CHAR	1	0	Logical Variable, Similar To ABAP_BOOL from Type Pool ABAP

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMD_PPM_BO_REL	COMPONENT_NAME	CRMC_GIL_COMP	COMPONENT	KEY	1	CN
2	CRMD_PPM_BO_REL	OBJECT_A	CRMD_PPM_BO	OBJECT_NAME	KEY	1	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	100
