SAP ABAP Table CRMD_IUDSM_PHEAD (DSM Program Header Table)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IU-DSM-PRG (Application Component) DSM - Program
     ⤷ CRM_IU_DSM_PRG_APP (Package) Utilities DSM (Demand Side management) Program

Basic Data

Table Category	TRANSP	Transparent table

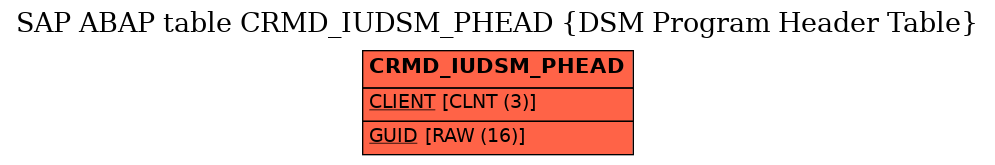

Transparent table	CRMD_IUDSM_PHEAD	Table Relationship Diagram
Short Description	DSM Program Header Table

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	LOY FRW : Primary key Include
2	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
3	GUID	☑	LOY_FRW_GUID	SYSUUID	RAW	16	0	Object GUID
4	.INCLUDE	☐				0	0	LOY FRW : Non-Key Framework Include
5	REF_GUID	☐	LOY_FRW_GUID	SYSUUID	RAW	16	0	Object GUID
6	APPLICATION	☐	LOY_FRW_APPLICATION	LOY_FRW_APPLICATION	CHAR	4	0	Application
7	PROCESS_TYPE	☐	LOY_FRW_PROCESS_TYPE	LOY_FRW_PROCESS_TYPE	CHAR	15	0	Process Type
8	.INCLUDE	☐				0	0	LOY FRW : Administrative Include
9	CREATED_ON	☐	LOY_FRW_CREATED_ON	SYDATS	DATS	8	0	Created On - OBSOLETE !!!
10	CREATED_BY	☐	LOY_FRW_CREATED_BY	UNAME	CHAR	12	0	Created By
11	CREATED_AT	☐	LOY_FRW_CREATED_AT	LOY_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
12	CHANGED_ON	☐	LOY_FRW_CHANGED_ON	SYDATS	DATS	8	0	Changed On - OBSOLETE !!!
13	CHANGED_BY	☐	LOY_FRW_CHANGED_BY	UNAME	CHAR	12	0	Changed By
14	CHANGED_AT	☐	LOY_FRW_CHANGED_AT	LOY_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
15	.INCLUDE	☐				0	0	DSM Program Header
16	OBJECT_ID	☐	CRM_IU_DSM_PRG_EXTERNAL_ID	CRM_IU_DSM_PRG_EXTERNAL_ID	CHAR	20	0	DSM Program External Identifier
17	PROG_TYPE	☐	CRM_IU_DSM_PRG_PROGRAM_TYPE	CRM_IU_DSM_PRG_PROGRAM_TYPE	CHAR	4	0	Program Type	*
18	BUAG_CLASS	☐	CRMT_BUAG_CLASS	CRMT_BUAG_CLASS	CHAR	10	0	Business Agreement Class	*
19	AUTH_GROUP	☐	CRM_IU_DSM_AUTH_GROUP	CRM_IU_DSM_AUTH_GROUP	CHAR	4	0	Authorization Group	*
20	SERV_ORG	☐	CRMT_SERVICE_ORG	HROBJEC_14	CHAR	14	0	Service Organization
21	PROG_MGMT_AREA	☐	CRM_IU_DSM_PRG_MGMT_AREA		CHAR	18	0	Program Management Area
22	TIME_ZONE	☐	TZNZONE	TZNZONE	CHAR	6	0	Time Zone	*
23	CURRENCY	☐	CRM_IU_DSM_CURRENCY	WAERS	CUKY	5	0	Currency	*
24	PROFILE_ID	☐	CRM_IU_DSM_PRG_PROFILE_ID		CHAR	10	0	Program Profile ID
25	PROG_START_DATE	☐	CRM_IU_DSM_PRG_START_DATE	SYDATS	DATS	8	0	Validity Start Date
26	PROG_START_TIME	☐	CRM_IU_DSM_PRG_START_TIME	SYTIME	TIMS	6	0	Validity Start Time
27	PROG_FINISH_DATE	☐	CRM_IU_DSM_PRG_FINISH_DATE	SYDATS	DATS	8	0	Validity End Date
28	PROG_FINISH_TIME	☐	CRM_IU_DSM_PRG_FINISH_TIME	SYTIME	TIMS	6	0	Validity End Time
29	PREMISE_REQUIRED	☐	CRM_IU_DSM_PREMISE_REQUIRED		CHAR	1	0	Premise Required
30	PROG_DESC_TEXT	☐	CRM_IU_DSM_PRG_DESC_TEXT	TEXT40	CHAR	40	0	Description of program
31	PROG_DESC_UP	☐	CRM_IU_DSM_PRG_DESC_TEXT_UP	CHAR40	CHAR	40	0	Description of program
32	AP_SUB_FROM_DATE	☐	CRM_IU_DSM_PRG_APFR_START_DATE	SYDATS	DATS	8	0	Application Submission Start Date
33	AP_SUB_TO_DATE	☐	CRM_IU_DSM_PRG_APFR_END_DATE	SYDATS	DATS	8	0	Application Submission End Date
34	AG_SUB_FROM_DATE	☐	CRM_IU_DSM_PRG_AGFR_START_DATE	SYDATS	DATS	8	0	Enrollment Period Start Date
35	AG_SUB_TO_DATE	☐	CRM_IU_DSM_PRG_AGFR_END_DATE	SYDATS	DATS	8	0	Enrollment Period End Date
36	AG_SUB_PER_TYPE	☐	CRM_IU_DSM_PRG_HEAD_SUB_TYPE	CRM_IU_DSM_PRG_SUB_PER_TYPE	CHAR	2	0	Program submission period type
37	AP_SUB_PER_TYPE	☐	CRM_IU_DSM_PRG_HEAD_SUB_TYPE	CRM_IU_DSM_PRG_SUB_PER_TYPE	CHAR	2	0	Program submission period type
38	BRF_FUNCTION_ID	☐	CRM_IU_DSM_PRG_SYSUUID	SYSUUID_C	CHAR	32	0	BRFplus Function Identifier
39	.INCLUDE	☐				0	0	Extension Include for DSM Program Header
40	HEADER_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1

History

Last changed by/on	SAP	20110908
SAP Release Created in	702
