SAP ABAP Table CRMD_ISX_ALLW_I (Allowance Item Object)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IT-BI (Application Component) Integration to Billing System
     ⤷ CRM_ISX_CC_ALLOW (Package) Integration to SAP Convergent Charging - Allowances

Basic Data

Table Category	TRANSP	Transparent table

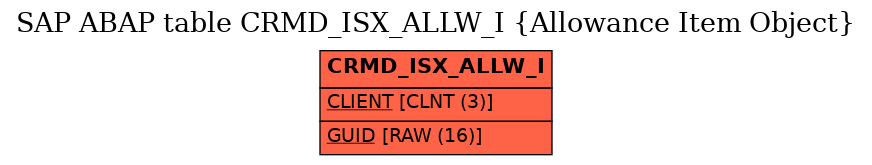

Transparent table	CRMD_ISX_ALLW_I	Table Relationship Diagram
Short Description	Allowance Item Object

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	LOY FRW : Primary key Include
2	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
3	GUID	☑	LOY_FRW_GUID	SYSUUID	RAW	16	0	Object GUID
4	.INCLUDE	☐				0	0	LOY FRW : Non-Key Framework Include
5	REF_GUID	☐	LOY_FRW_GUID	SYSUUID	RAW	16	0	Object GUID
6	APPLICATION	☐	LOY_FRW_APPLICATION	LOY_FRW_APPLICATION	CHAR	4	0	Application
7	PROCESS_TYPE	☐	LOY_FRW_PROCESS_TYPE	LOY_FRW_PROCESS_TYPE	CHAR	15	0	Process Type
8	.INCLUDE	☐				0	0	LOY FRW : Administrative Include
9	CREATED_ON	☐	LOY_FRW_CREATED_ON	SYDATS	DATS	8	0	Created On - OBSOLETE !!!
10	CREATED_BY	☐	LOY_FRW_CREATED_BY	UNAME	CHAR	12	0	Created By
11	CREATED_AT	☐	LOY_FRW_CREATED_AT	LOY_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
12	CHANGED_ON	☐	LOY_FRW_CHANGED_ON	SYDATS	DATS	8	0	Changed On - OBSOLETE !!!
13	CHANGED_BY	☐	LOY_FRW_CHANGED_BY	UNAME	CHAR	12	0	Changed By
14	CHANGED_AT	☐	LOY_FRW_CHANGED_AT	LOY_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
15	.INCLUDE	☐				0	0	Data Fields for Allowance Item Object
16	ALLOWANCE_DEF_ID	☐	CRM_ISX_CC_ALLW_DEF_ID	CRMT_ISX_CC_WS_STRING_256	CHAR	256	0	Allowance Definition ID
17	MANUAL_ALLOWED	☐	CRM_ISX_ALLW_MANUAL_ALLOWED	BOOLE	CHAR	1	0	Allowance: Flag for Manual Refill Allowed
18	USED_WHEN_CONTR_CREATED	☐	CRM_ISX_ALLW_USED_CONTR_CREA	BOOLE	CHAR	1	0	Allowance: Flag for Using in Contract Creation
19	USED_WHEN_CONTR_CHANGED	☐	CRM_ISX_ALLW_USED_CONTR_CHNG	BOOLE	CHAR	1	0	Allowance: Flag for Using in Contract Change
20	BRF_EVENT	☐	CRM_ISX_ALLW_CONDITION_CREATE	BRF_EVENT	CHAR	20	0	Condition for usage after contract creation	*
21	BRF_EVENT_2	☐	CRM_ISX_ALLW_CONDITION_CHANGE	BRF_EVENT	CHAR	20	0	Condition for usage after contract change	*
22	VALID_FROM	☐	CRM_ISX_ALLW_VALID_FROM	BCOS_TSTMP	DEC	15	0	Allowance Definition Validity (valid from)
23	VALID_TO	☐	CRM_ISX_ALLW_VALID_TO	BCOS_TSTMP	DEC	15	0	Allowance Definition Validity (valid to)

History

Last changed by/on	SAP	20140802
SAP Release Created in
