SAP ABAP Table CRMD_IM_ML_ITEM_DS (Dialog Structure of E-mail Item)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MKT-ML (Application Component) Direct Mailing
     ⤷ CRM_INTERNET_MARKETING (Package) CRM Marketing: 'Personalized Mails' Functions

Basic Data

Table Category	INTTAB	Structure

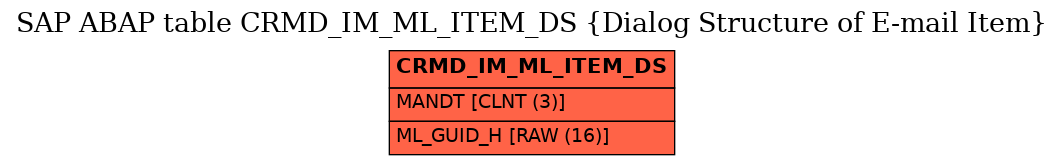

Structure	CRMD_IM_ML_ITEM_DS	Table Relationship Diagram
Short Description	Dialog Structure of E-mail Item

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Personalized Mails: Contact Tracking Outbound Table (Item)
2	.INCLUDE	☐				0	0	Key for Table CRMD_IM_ML_ITEM: Mailing Items
3	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	*
4	ML_GUID_I	☐	CRMT_IM_GUID	SYSUUID	RAW	16	0	GUID of an Object in the Mailing List
5	.INCLUDE	☐				0	0	Data for CRMD_IM_ML_ITEM
6	ML_GUID_H	☐	CRMT_IM_GUID	SYSUUID	RAW	16	0	GUID of an Object in the Mailing List	*
7	PARTNER_GUID	☐	BU_PARTNER_GUID	SYSUUID	RAW	16	0	Business Partner GUID
8	ADD_PARTNER_GUID	☐	CRMT_IM_ADD_PARTNER	SYSUUID	RAW	16	0	Additional Business Partner
9	SUM_ACCESS	☐	CRMT_IM_NUMBER_ACCESS	INT2	INT2	5	0	Number of Times a Link is Accessed
10	SUM_REPLIES	☐	CRMT_IM_NUMBER_REPLIES	INT2	INT2	5	0	Obsolete. See Table CRMD_MKTCA_CT for Inbounds.
11	OBJKEY	☐	SWO_TYPEID	SWO_TYPEID	CHAR	70	0	Object key
12	OBJTYPE	☐	SWO_OBJTYP	OJ_NAME	CHAR	10	0	Object Type	*
13	LOGSYS	☐	LOGSYS	LOGSYS	CHAR	10	0	Logical system	*
14	CHANNEL	☐	CRM_MKTPL_COM_CHANNEL	CRM_MKTPL_COM_CHANNEL	NUMC	2	0	CRM Marketing Planning - Communication Method
15	MSGID	☐	ARBGB	ARBGB	CHAR	20	0	Application Area	*
16	MSGNR	☐	MSGNR	MSGNR	CHAR	3	0	Message number	*
17	CHANGED_AT	☐	CRMT_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
18	STATUS	☐	CRMT_IM_STATUS	CRM_IM_STATUS	CHAR	1	0	CRM Marketing: Technical Status for an Outbound
19	.INCLU--AP	☐				0	0	Interaction Object Enhancement Social Media Data
20	.INCLUDE	☐				0	0	Interaction Object Enhancement Social Media Data
21	MP_GUID	☐	CRMT_MKTHV_MC_GENERIC_GUID	SYSUUID	RAW	16	0	CRM Marketing: Marketing Prospect Generic GUID
22	IO_DESCRIPTION	☐	CRMT_IO_DESCRIPTION	CHAR40	CHAR	40	0	Description of Interaction Object (Language Independent)
23	IO_TYPE	☐	CRMT_IM_IO_TYPE	CRMT_IM_IO_TYPE	NUMC	2	0	Interaction Object Category
24	IO_STATUS	☐	CRMT_IM_IO_STATUS	CRMT_IM_IO_STATUS	CHAR	2	0	Status of Inbound Interaction Object
25	IO_CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
26	URL_GUID	☐	CRMT_IM_URL_GUID	SYSUUID	RAW	16	0	Personalized Mails: GUID of a URL
27	IO_SCORE	☐	CRMT_IM_IO_SCORE	NUMC02	NUMC	2	0	Interaction Object Score
28	ITM_CREATED_AT	☐	CRMT_CREATED_AT	BCOS_TSTMP	DEC	15	0	Transaction was Created at this Time
29	ITM_CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
30	.INCLUDE	☐				0	0	Detail Information for Contact Tracking
31	ELM_ITEM_GUID	☐	CRMT_MKTLIST_I_GUID	SYSUUID	RAW	16	0	CRM Marketing: Line GUID for External List Item
32	ORDER_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
33	PRC	☐	CRMT_MKT_ICRH_PRC_CHAR	CRM_MKT_ICRH_PRC_CHAR	CHAR	12	0	CRM Marketing: ICRH - Personalized Response Code - character
34	TABIX	☐	CRM_IM_TABIX	SYST_LONG	INT4	10	0	Index of Entry in Document Table

History

Last changed by/on	SAP	20140117
SAP Release Created in
