SAP ABAP Table CRMD_ERMS_RULE (ERMS Rules)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IC-EMS-RUL (Application Component) Rule Maintenance
     ⤷ CRM_ERMS_REPOSITORY (Package) CRM_ERMS_REPOSITORY

Basic Data

Table Category	TRANSP	Transparent table

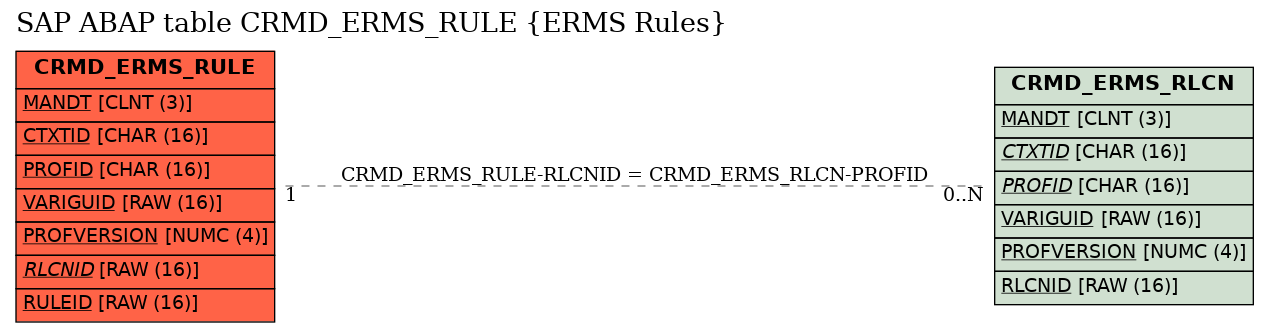

Transparent table	CRMD_ERMS_RULE	Table Relationship Diagram
Short Description	ERMS Rules

Delivery and Maintenance

Pool/cluster
Delivery Class	G	Customizing table, protected against SAP Upd., only INS all.
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	Key Fields for Table CRMD_ERMS_RULE
2	.INCLUDE	☑				0	0	Key Fields for Table CRMD_ERMS_RLCN
3	.INCLUDE	☑				0	0	Key Fields of Table CRMD_ERMS_PROF
4	.INCLUDE	☑				0	0	Key Fields of Table CRMD_ERMS_PLVR
5	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
6	CTXTID	☑	CRM_ERMS_CTXTID	CRM_ERMS_CHARID	CHAR	16	0	Context
7	PROFID	☑	CRM_ERMS_PROFID	CRM_ERMS_CHARID	CHAR	16	0	Rule Policy ID
8	VARIGUID	☑	CRMT_ERMS_VARIANTGUID	SYSUUID	RAW	16	0	Variant GUID
9	PROFVERSION	☑	CRM_ERMS_PROFVERS	CRM_ERMS_PROFVERS	NUMC	4	0	Version Number of Policy Variant
10	RLCNID	☑	CRM_ERMS_RLCNID	SYSUUID	RAW	16	0	Rule Container ID	CRMD_ERMS_RLCN
11	RULEID	☑	CRM_ERMS_RULEID	SYSUUID	RAW	16	0	Rule ID
12	.INCLUDE	☐				0	0	Data (Non-Key) Fields of Table CRMD_ERMS_RULE
13	SEQNO	☐	CRM_ERMS_SEQNO	CRM_ERMS_SEQNO	NUMC	5	0	Parameter Sequence Number
14	.INCLUDE	☐				0	0	ERMS: Create/Change Info
15	CREATED_AT	☐	CRMT_CREATED_AT	BCOS_TSTMP	DEC	15	0	Transaction was Created at this Time
16	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
17	CHANGED_AT	☐	CRMT_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
18	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
19	SUBRLCN	☐	CRM_ERMS_SRLCNID	SYSUUID	RAW	16	0	Sub Rule Container
20	CONDITIONSOURCE	☐	CRM_ERMS_XSTRING	CRM_ERMS_XSTRING	RSTR	0	0	Xstring Containing XML Code
21	ACTIONSOURCE	☐	CRM_ERMS_XSTRING	CRM_ERMS_XSTRING	RSTR	0	0	Xstring Containing XML Code
22	CONDITIONSOURCET	☐	CRM_ERMS_XSTRING	CRM_ERMS_XSTRING	RSTR	0	0	Xstring Containing XML Code

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMD_ERMS_RULE	RLCNID	CRMD_ERMS_RLCN	PROFID	KEY	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	100
