SAP ABAP Table CRMD_DHR_SERVICE (Service Tickets)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-ANA-RFW (Application Component) Reporting Framework
     ⤷ CRM_REPORT (Package) Operative Reporting in CRM

Basic Data

Table Category	TRANSP	Transparent table

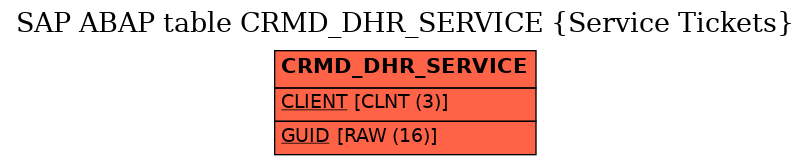

Transparent table	CRMD_DHR_SERVICE	Table Relationship Diagram
Short Description	Service Tickets

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	GUID	☑	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
3	ITEMS_INVALID	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
4	.INCLUDE	☐				0	0	Structure for service buffer table
5	CHANGED_AT	☐	CRMT_CHANGED_AT_USR	CRM_TSTMP	DEC	15	0	Changed On (Output in User Time Zone)
6	.INCLUDE	☐				0	0	Extract Structure for OLTP Service Internal Fields
7	OBJECT_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
8	PRIORITY	☐	CRMT_PRIORITY	SC_PRIO	NUMC	1	0	Activity Priority	*
9	DESCRIPTION_UC	☐	CRMT_PROCESS_DESCRIPTION_UC	CRM_PROCESS_DESCRIPTION_UC	CHAR	40	0	Transaction Description (Upper Case)
10	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE_DB	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
11	STAT_OPEN	☐	CRMT_STATUS_OPEN	CRM_BOOLEAN	CHAR	1	0	Transaction is Still Open
12	RESP_GROUP_RFW	☐	CRMT_RESPONSIBLE_GROUP	BU_PARTNER	CHAR	10	0	Responsible Group	*
13	PERSON_RESP	☐	CRMT_PERSON_RESP	BU_PARTNER	CHAR	10	0	Employee Responsible	*
14	POSTING_DATE	☐	CRMT_POSTING_DATE		DATS	8	0	Posting Date for a Business Transaction
15	CREATED_AT	☐	CRMT_CREATED_AT_USR	CRM_TSTMP	DEC	15	0	Created On (Output in User Time Zone)
16	KATALOGART_SRV	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
17	CODEGRUPPE_SRV	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
18	CODE_SRV	☐	QCODE	QCODE	CHAR	4	0	Code	*
19	STATUS	☐	CRM_J_STATUS	CRM_J_STATUS	CHAR	5	0	Object Status
20	.INCLUDE	☐				0	0	EEW Include Service Order Search Result
21	EEW_R_SRVO_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1

History

Last changed by/on	SAP	20110908
SAP Release Created in	701
