SAP ABAP Table CRMC_UBB_OUT_CHM (UBB: Output Channel - Medium + Partner)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-CTR-UCO (Application Component) Usage-Based Service Contract
     ⤷ CRM_UBB (Package) Usage-Based Billing (UBB)

Basic Data

Table Category	TRANSP	Transparent table

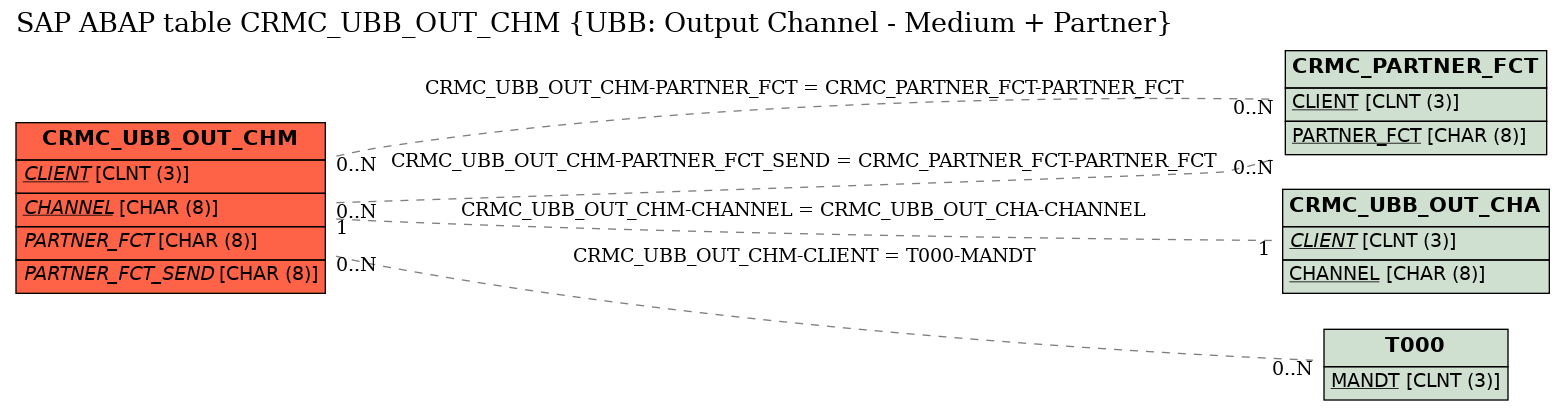

Transparent table	CRMC_UBB_OUT_CHM	Table Relationship Diagram
Short Description	UBB: Output Channel - Medium + Partner

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	CHANNEL	☑	CRMT_UBB_CHANNEL	CRM_UBB_CHANNEL	CHAR	8	0	Reading Reminder Output Channel	CRMC_UBB_OUT_CHA
3	OUT_MEDIA	☐	CRMT_UBB_OUT_MEDIA	CRM_UBB_OUT_MEDIA	CHAR	8	0	Reading Reminder Messaging Medium
4	PARTNER_FCT	☐	CRM_UBB_PARTNER_FCT_RECIPT	COM_PARTNER_FCT	CHAR	8	0	Partner Function to Determine Recip. of Reading Reminder	CRMC_PARTNER_FCT
5	PARTNER_FCT_SEND	☐	CRM_UBB_PARTNER_FCT_SENDER	COM_PARTNER_FCT	CHAR	8	0	Partner Function to Determine Sender of Reading Reminder	CRMC_PARTNER_FCT
6	FORMNAME	☐	TDSFNAME	TDSFNAME	CHAR	30	0	Smart Forms: Form Name	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMC_UBB_OUT_CHM	CHANNEL	CRMC_UBB_OUT_CHA	CHANNEL		1	1
2	CRMC_UBB_OUT_CHM	CLIENT	T000	MANDT
3	CRMC_UBB_OUT_CHM	PARTNER_FCT	CRMC_PARTNER_FCT	PARTNER_FCT
4	CRMC_UBB_OUT_CHM	PARTNER_FCT_SEND	CRMC_PARTNER_FCT	PARTNER_FCT

History

Last changed by/on	SAP	20041011
SAP Release Created in	320
