SAP ABAP Table CRMC_TC_SCHEMADN (Toll Collection: Assignment schema for technical resources)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-ITT-ETC-BTX (Application Component) Business Transaction
     ⤷ CRM_TC_BTX_TECH_RES (Package) Toll Collection: Technical resources extension

Basic Data

Table Category	TRANSP	Transparent table

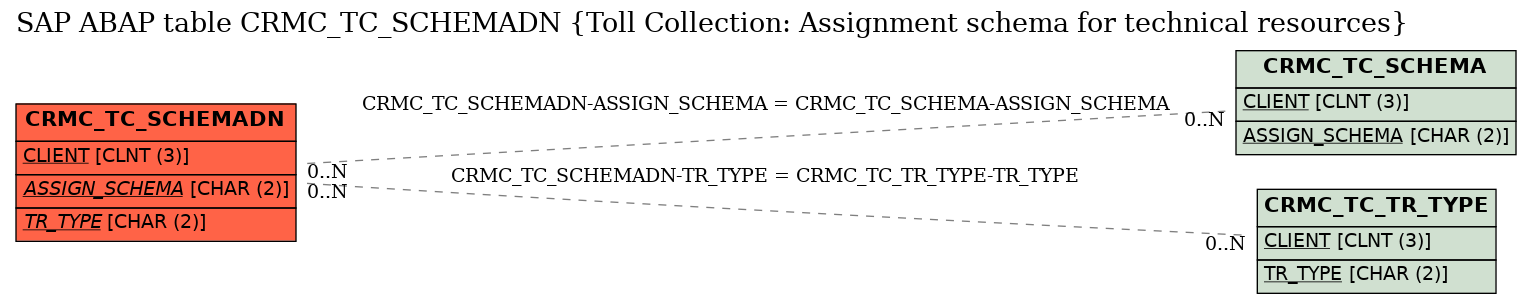

Transparent table	CRMC_TC_SCHEMADN	Table Relationship Diagram
Short Description	Toll Collection: Assignment schema for technical resources

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	ASSIGN_SCHEMA	☑	CRMT_TC_ASSIGN_SCHEMA	CRM_TC_ASSIGN_SCHEMA	CHAR	2	0	Assignment Schema for Technical Resources	CRMC_TC_SCHEMA
3	TR_TYPE	☑	CRMT_TC_TR_TYPE	CRM_TC_TR_TYPE	CHAR	2	0	Technical Resource Type	CRMC_TC_TR_TYPE
4	QUAN_MIN	☐	CRMT_TC_MIN_QUAN	CRM_TC_MIN_QUAN	NUMC	1	0	Toll collection: Minimum Number of Resources
5	QUAN_MAX	☐	CRMT_TC_MAX_QUAN	CRM_TC_RES_QUAN	NUMC	3	0	Toll Collection: Maximum Number of Resources
6	TR_TYPE_ORDER	☐	CRMT_TC_TR_ORDER		NUMC	3	0	Order Criteria for Technical Resources in Assignment Schema
7	CSTIC_MIN	☐	CRMT_TC_CSTIC_MIN	CHAR40	CHAR	40	0	Characteristic Name to Obtain Minimum Value From
8	CSTIC_MAX	☐	CRMT_TC_CSTIC_MAX	CHAR40	CHAR	40	0	Characteristic Name to Obtain Maximum Value From

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMC_TC_SCHEMADN	ASSIGN_SCHEMA	CRMC_TC_SCHEMA	ASSIGN_SCHEMA	KEY
2	CRMC_TC_SCHEMADN	TR_TYPE	CRMC_TC_TR_TYPE	TR_TYPE

History

Last changed by/on	SAP	20130604
SAP Release Created in	701
