SAP ABAP Table CRMC_HH_MD_BP (CRM Handheld: Business Partner Attributes)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-HH (Application Component) Handheld
     ⤷ CRM_HH (Package) CRM Mobile Applications for Handhelds

Basic Data

Table Category	TRANSP	Transparent table

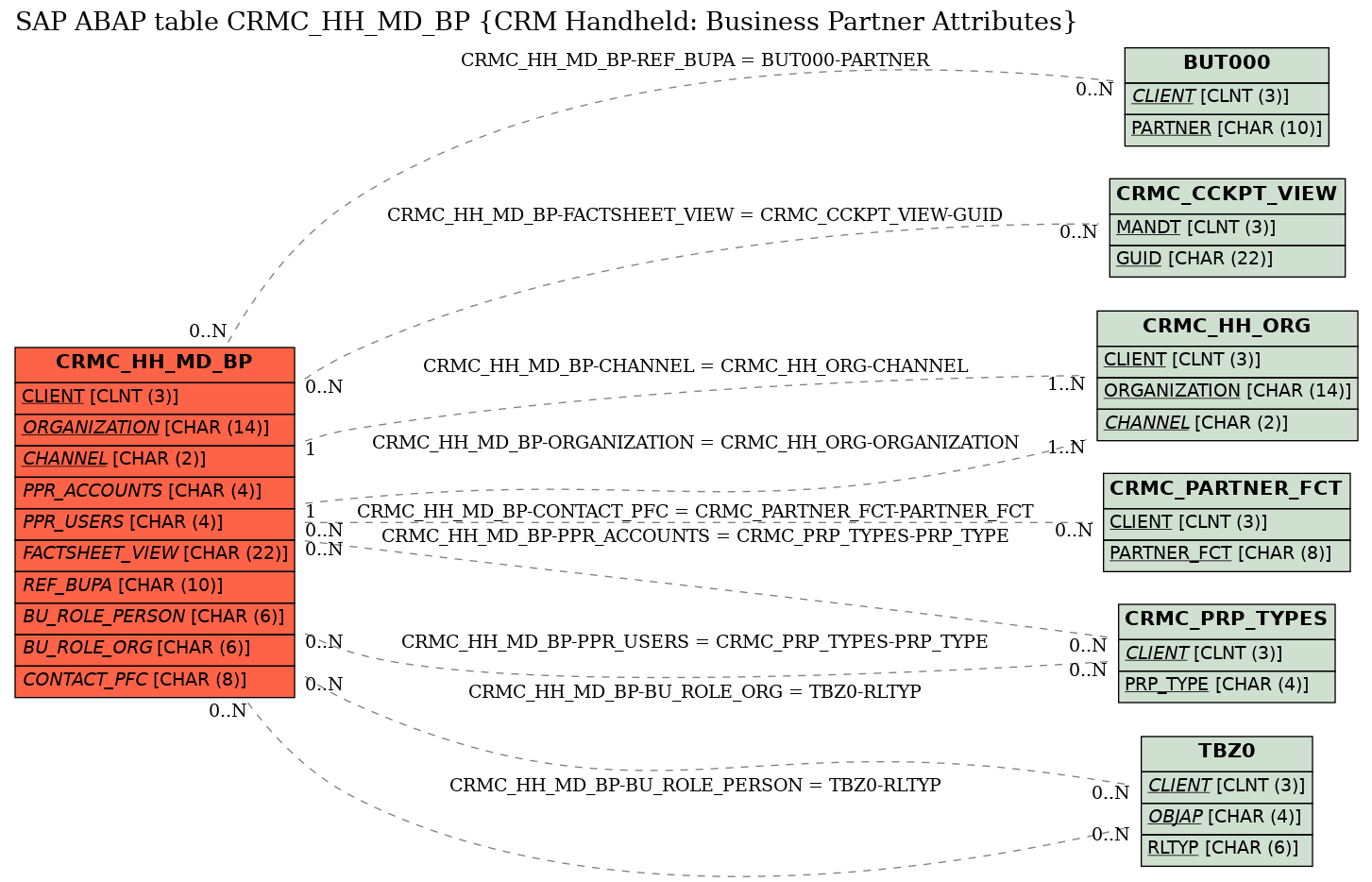

Transparent table	CRMC_HH_MD_BP	Table Relationship Diagram
Short Description	CRM Handheld: Business Partner Attributes

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	ORGANIZATION	☑	CRMT_HH_ORGANIZATION	HROBJEC_14	CHAR	14	0	CRM Handheld: Organization	CRMC_HH_ORG
3	CHANNEL	☑	CRMT_DISTRIBUTION_CHANNEL	CRM_DISTRIBUTION_CHANNEL	CHAR	2	0	Distribution Channel	CRMC_HH_ORG
4	PPR_ACCOUNTS	☐	CRMT_HH_PRP_TYPE_ACCOUNTS	CRM_PRP_TYPE	CHAR	4	0	CRM Handheld: partner/product range type for accounts	CRMC_PRP_TYPES
5	PPR_USERS	☐	CRMT_HH_PRP_TYPE_USERS	CRM_PRP_TYPE	CHAR	4	0	CRM Handheld: partner/product range type for users	CRMC_PRP_TYPES
6	STD_ADDRESS_ONLY	☐	CRMT_HH_STANDARD_ADDRESS	CRM_BOOLEAN	CHAR	1	0	CRM Handheld: standard address for accounts
7	FACTSHEET_VIEW	☐	CRMT_HH_FACTSHEET_VIEW	SYSUUID_22	CHAR	22	0	CRM Handheld: factsheet view	CRMC_CCKPT_VIEW
8	REF_BUPA	☐	CRMT_HH_REF_BU_PARTNER	BU_PARTNER	CHAR	10	0	CRM Handheld: reference business partner	BUT000
9	BU_ROLE_PERSON	☐	CRMT_HH_BU_ROLE_PERSON	BU_RLTYP	CHAR	6	0	CRM Handheld: role for a person	TBZ0
10	BU_ROLE_ORG	☐	CRMT_HH_BU_ROLE_ORG	BU_RLTYP	CHAR	6	0	CRM Handheld: role for an organization	TBZ0
11	UPDATE_FAVORITES	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
12	EXECUTE_BP_SEL	☐	CRMT_HH_MD_SELECT_EXECUTE	CRM_BOOLEAN	CHAR	1	0	CRM Handheld: execute master data select method
13	CONTACT_PFC	☐	COMT_PARTNER_FCT	COM_PARTNER_FCT	CHAR	8	0	Partner Function	CRMC_PARTNER_FCT
14	PHA_STRUC_1	☐	CRMT_HH_PHA_STRUCTURE	CRM_HH_PHA_STRUCTURE	CHAR	2	0	CRM HH Pharma: Accessible Structures
15	PHA_FIELD_1	☐	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*
16	PHA_STRUC_2	☐	CRMT_HH_PHA_STRUCTURE	CRM_HH_PHA_STRUCTURE	CHAR	2	0	CRM HH Pharma: Accessible Structures
17	PHA_FIELD_2	☐	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*
18	PHA_STRUC_3	☐	CRMT_HH_PHA_STRUCTURE	CRM_HH_PHA_STRUCTURE	CHAR	2	0	CRM HH Pharma: Accessible Structures
19	PHA_FIELD_3	☐	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*
20	PHA_STRUC_4	☐	CRMT_HH_PHA_STRUCTURE	CRM_HH_PHA_STRUCTURE	CHAR	2	0	CRM HH Pharma: Accessible Structures
21	PHA_FIELD_4	☐	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*
22	LOOK_BACK	☐	CRMT_HH_LOOK_BACK	NUMC4	NUMC	4	0	CRM Handheld: number of days back to search for documents
23	LOOK_AHEAD	☐	CRMT_HH_LOOK_AHEAD	NUMC4	NUMC	4	0	CRM Handheld: number of days ahead to search for documents

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMC_HH_MD_BP	BU_ROLE_ORG	TBZ0	RLTYP
2	CRMC_HH_MD_BP	BU_ROLE_PERSON	TBZ0	RLTYP
3	CRMC_HH_MD_BP	CHANNEL	CRMC_HH_ORG	CHANNEL		1	N
4	CRMC_HH_MD_BP	CONTACT_PFC	CRMC_PARTNER_FCT	PARTNER_FCT
5	CRMC_HH_MD_BP	FACTSHEET_VIEW	CRMC_CCKPT_VIEW	GUID
6	CRMC_HH_MD_BP	ORGANIZATION	CRMC_HH_ORG	ORGANIZATION		1	N
7	CRMC_HH_MD_BP	PPR_ACCOUNTS	CRMC_PRP_TYPES	PRP_TYPE
8	CRMC_HH_MD_BP	PPR_USERS	CRMC_PRP_TYPES	PRP_TYPE
9	CRMC_HH_MD_BP	REF_BUPA	BUT000	PARTNER

History

Last changed by/on	SAP	20110908
SAP Release Created in	400
