SAP ABAP Table CRMC_GPI_PARAMS (Parameters for Calling the GPI (Gen. Process Container))
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM-IU-S (Application Component) Utilities Industry: Sales
⤷ CRM_BSP_MODEL_IL_GPI (Package) Utilities Generic Process Invocator
⤷ CRM-IU-S (Application Component) Utilities Industry: Sales
⤷ CRM_BSP_MODEL_IL_GPI (Package) Utilities Generic Process Invocator
Basic Data
Table Category | TRANSP | Transparent table |

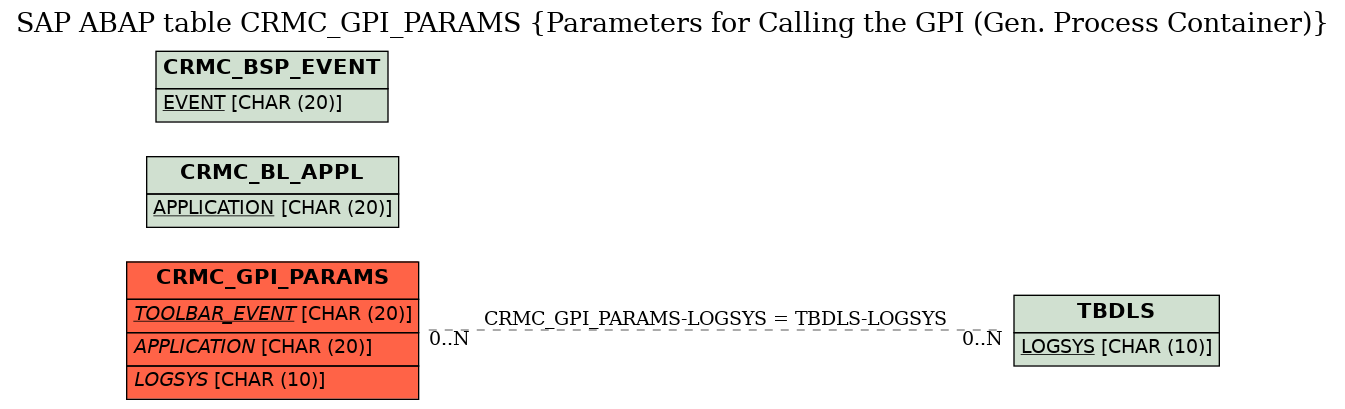

Transparent table | CRMC_GPI_PARAMS | Table Relationship Diagram |
Short Description | Parameters for Calling the GPI (Gen. Process Container) |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | L | Table for storing temporary data, delivered empty |
Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | TOOLBAR_EVENT | CRMT_BSP_EVENT | CRM_BSP_EVENT | CHAR | 20 | 0 | Event | CRMC_BSP_EVENT | |
2 | APPLICATION | CRMT_BSP_APPL | CRM_BSP_APPL | CHAR | 20 | 0 | Application Scenario | CRMC_BL_APPL | |
3 | RFCDEST | RFCDEST | RFCDEST | CHAR | 32 | 0 | Logical Destination (Specified in Function Call) | * | |
4 | LOGSYS | LOGSYS | LOGSYS | CHAR | 10 | 0 | Logical system | TBDLS | |
5 | OBJECTTYPE | SWO_OBJTYP | OJ_NAME | CHAR | 10 | 0 | Object Type | * | |
6 | ABOX_CONF | EWF_CONFIG | EWF_CONFIG | CHAR | 8 | 0 | Action Box Configuration | * | |
7 | ABOX_CALLID | EWF_CALLID | EWF_CALLID | CHAR | 4 | 0 | Action Box transaction code | * |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | CRMC_GPI_PARAMS | LOGSYS | TBDLS | LOGSYS |
History
Last changed by/on | SAP | 20110908 |
SAP Release Created in | 310 |
