SAP ABAP Table CRMC_GPI_CALL_RL (Store Action Box Calls by Role)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM-IU-S (Application Component) Utilities Industry: Sales
⤷ CRM_BSP_MODEL_IL_GPI (Package) Utilities Generic Process Invocator
⤷ CRM-IU-S (Application Component) Utilities Industry: Sales
⤷ CRM_BSP_MODEL_IL_GPI (Package) Utilities Generic Process Invocator
Basic Data
Table Category | TRANSP | Transparent table |

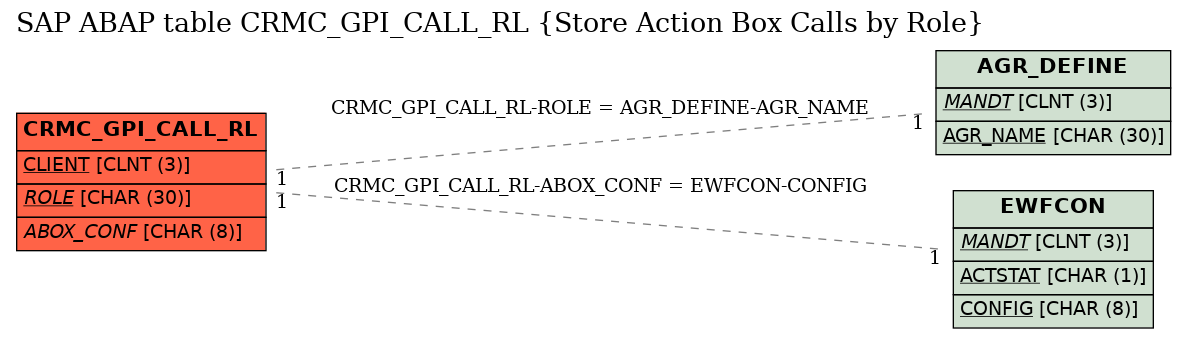

Transparent table | CRMC_GPI_CALL_RL | Table Relationship Diagram |
Short Description | Store Action Box Calls by Role |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | E | Control table, SAP and customer have separate key areas |
Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | CLIENT | MANDT | MANDT | CLNT | 3 | 0 | Client | * | |
2 | ROLE | AGR_NAME | AGR_NAME | CHAR | 30 | 0 | Role Name | AGR_DEFINE | |
3 | ABOX_CONF | EWF_CONFIG | EWF_CONFIG | CHAR | 8 | 0 | Action Box Configuration | EWFCON | |
4 | LOGSYS | CRMT_GPI_LOGSYS | LOGSYS | CHAR | 10 | 0 | Logical System of Selected Business Objects | * |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | CRMC_GPI_CALL_RL | ABOX_CONF | EWFCON | CONFIG | KEY | 1 | 1 |
2 | CRMC_GPI_CALL_RL | ROLE | AGR_DEFINE | AGR_NAME | KEY | 1 | 1 |
History
Last changed by/on | SAP | 20110908 |
SAP Release Created in | 400 |
