SAP ABAP Table CRMC_DAM_CONV_PC (Predefined Conversions for Conversion Dialog)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MKT-DAM (Application Component) Digital Asset Management
     ⤷ CRM_DAM (Package) CRM - Digital Asset Management

Basic Data

Table Category	TRANSP	Transparent table

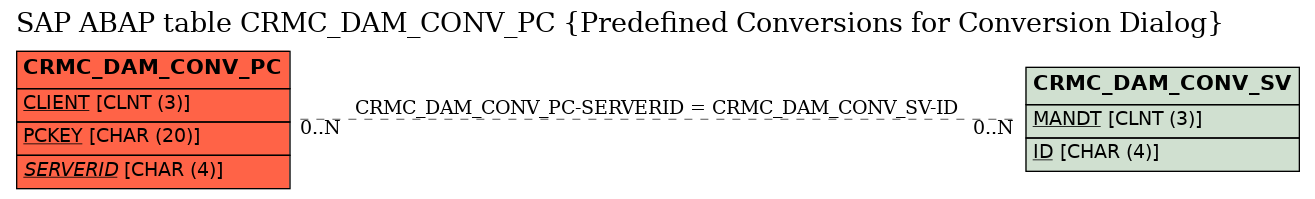

Transparent table	CRMC_DAM_CONV_PC	Table Relationship Diagram
Short Description	Predefined Conversions for Conversion Dialog

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	PCKEY	☑	CRMC_DAM_CONV_PC_KEY	CRMC_DAM_PROPERTY_KEY	CHAR	20	0	Preconfigured Conversion Settings: Key
3	SERVERID	☑	CRMC_DAM_CONV_ID	CRMC_DAM_CONV_INST_ID	CHAR	4	0	Conversion Service Server ID	CRMC_DAM_CONV_SV
4	PC_WIDTH	☐	CRMC_DAM_CONV_PC_WIDTH	CRMC_DAM_CONV_BOUNDS	NUMC	5	0	Preconfigured Conversion Settings: width
5	PC_HEIGHT	☐	CRMC_DAM_CONV_PC_HEIGHT	CRMC_DAM_CONV_BOUNDS	NUMC	5	0	Preconfigured Conversion Settings: Height
6	PC_TARGET_FORMAT	☐	CRMT_DAM_CONV_TARGET	CRM_DAM_MT_NUMBER	CHAR	6	0	Target for Conversion
7	PC_DISP_TEXT	☐	CRMD_DAM_CONV_DISP_TEXT	CRM_DAM_DESCRIPTION	CHAR	64	0	Preconfigured Conversion Display Text
8	PC_TOOLTIP	☐	CRMC_DAM_CONV_TOOLTIP	CRM_DAM_CUST_VALUE	CHAR	255	0	Conversion Tooltip in CRM DAM
9	PC_JPEG_OPT	☐	CRMT_DAM_CONV_JPEG_OPT	INT4	INT4	10	0	JPEG Optimization
10	PC_COLORSPACE	☐	CRMT_DAM_CONV_COL_SPACE	CRM_DAM_CONV_COL_SPACE	CHAR	64	0	DAM Conversion Colorspace
11	PC_RESOLUTION	☐	CRMT_DAM_CONV_RESOLUTION	INT4	INT4	10	0	DAM Conversion Resolution

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMC_DAM_CONV_PC	SERVERID	CRMC_DAM_CONV_SV	ID

History

Last changed by/on	SAP	20110908
SAP Release Created in	500
