SAP ABAP Table CRMC_BRF_TAG_DEF (DB Table for Expressions Created)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-BRF (Application Component) Integration Business Rules Framework in the Bus. Transaction
     ⤷ CRM_BRF (Package) BRF Integration into CRM

Basic Data

Table Category	TRANSP	Transparent table

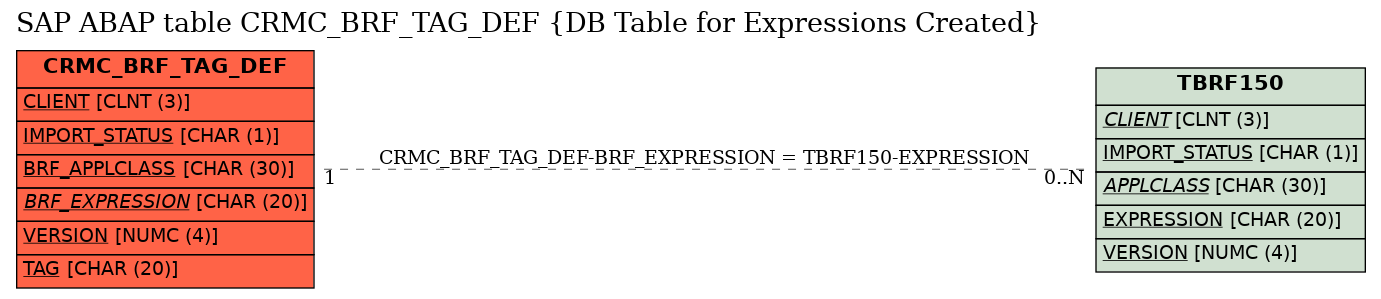

Transparent table	CRMC_BRF_TAG_DEF	Table Relationship Diagram
Short Description	DB Table for Expressions Created

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	IMPORT_STATUS	☑	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
3	BRF_APPLCLASS	☑	BRF_APPLCLASS	BRF_APPLCLASS	CHAR	30	0	BRF: Application Class	*
4	BRF_EXPRESSION	☑	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
5	VERSION	☑	BRF_VERSION	BRF_VERSION	NUMC	4	0	BRF: Version
6	TAG	☑	CRMT_BRF_TAG_NAME	CRM_BRF_TAG_NAME	CHAR	20	0	Name of Tag to Be Defined	*
7	PARENT_TAG	☐	CRMT_BRF_PAR_TAG_NAME	CRM_BRF_TAG_NAME	CHAR	20	0	Name of Parent Tag	*
8	MULTI_INSTANCES	☐	CRMT_BRF_TAG_MULTI_INSTANCES	CRM_BOOLEAN	CHAR	1	0	Use Different Instances
9	CRITERIA	☐	CRMT_TAG_CRITERIA_VAL		CHAR	40	0	Tag Criterion
10	TAGID	☐	CRMT_BRF_TAG_ID	CRM_BRF_TAG_ID	CHAR	12	0	ID for Grouping Tags	*
11	FORMULA_ID	☐	SFBEID	SYSUUID_C	CHAR	32	0	Formula ID
12	USE_FORMULA	☐	CRMT_BRF_USE_FORMULA	CRM_BOOLEAN	CHAR	1	0	Use Formula
13	TAG_PURPOSE	☐	CRMT_BRF_TAG_PURPOSE	CRM_BRF_TAG_PURPOSE	INT1	3	0	Purpose of Tag Expression

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMC_BRF_TAG_DEF	BRF_EXPRESSION	TBRF150	EXPRESSION		1	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	500
