SAP ABAP Table CRM_PROD_FIN05_MV_ROW (Structure for Maintenance of Set Type CRM_PROD_FIN05)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-LAM-MD-FPR (Application Component) Financing Product
     ⤷ CRM_PRODUCT_FINANCE (Package) Product Master Financial

Basic Data

Table Category	INTTAB	Structure
Structure	CRM_PROD_FIN05_MV_ROW	Table Relationship Diagram
Short Description	Structure for Maintenance of Set Type CRM_PROD_FIN05

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Set Key
2	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
3	FRG_GUID	☐	COMT_FRG_GUID	SYSUUID	RAW	16	0	Set GUID
4	.INCLUDE	☐				0	0	Product Administration Data
5	VALID_FROM	☐	COMT_VALID_FROM	BCOS_TSTMP	DEC	15	0	Valid From (Time Stamp)
6	VALID_TO	☐	COMT_VALID_TO	BCOS_TSTMP	DEC	15	0	Valid To (Time Stamp)
7	UPNAME	☐	COMT_UPNAME	UNAME	CHAR	12	0	Name of the User Who Last Changed the Set
8	HISTEX	☐	COMT_HISTEX	COM_BOOLEAN	CHAR	1	0	History Exists
9	LOGSYS	☐	COMT_LOGSYS	LOGSYS	CHAR	10	0	Original System	*
10	.INCLUDE	☐				0	0	Payment Structure
11	CFLOW_TYPE	☐	CRMT_CFLOWTYPE01	CRMT_CASHFLOW_TYPE	CHAR	4	0	Flow Category	CRMC_CFTYPE
12	NO_OF_PERIODS	☐	CRMT_FIN_PERIODS01		NUMC	5	0	Number of Periods in Billing Plan
13	PAYMENT_FREQU	☐	CRMT_FIN_PAYMENTFR01	CRMT_FIN_PAYMENTFR01	NUMC	2	0	Payment Frequency
14	PAYMENT_FORM	☐	CRMT_FIN_PAYMENTFO01	CRMT_PAYMENTFORM	NUMC	1	0	Payment Form	CRMC_PAYMFORM
15	PERCENTAGE	☐	CRMT_FINPROD_PROZ01	DECV3_7	DEC	10	7	Percentage Rate
16	RATE_PER_X	☐	CRMT_FIN_RATEPERX01	CRMT_DECV7_10	DEC	17	10	Rate per x
17	TIMERU_FROM	☐	CRMT_FIN_TIMERU_FR01	TIMENAME	CHAR	12	0	Date Rule From	TIMERUNA
18	TIMERU_TO	☐	CRMT_FIN_TIMERU_TO01	TIMENAME	CHAR	12	0	Date Rule To	TIMERUNA
19	SETTL_TO	☐	CRMT_FIN_SETTL_TO_01		DATS	8	0	To Date
20	FIX	☐	CRMT_FINPROD_FIX01	CRMT_FINPROD_FIX01	NUMC	2	0	Fixing
21	DATE_UPD	☐	CRMT_FIN_DATE_UPD_01	CRMT_FIN_DATE_UPD_01	CHAR	1	0	No Date Update

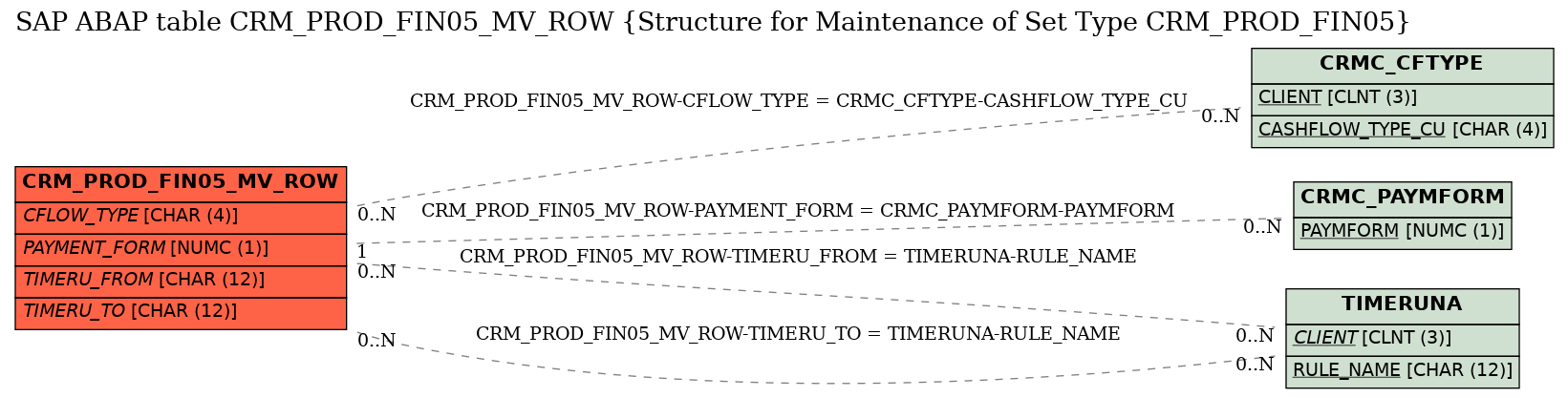

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRM_PROD_FIN05_MV_ROW	CFLOW_TYPE	CRMC_CFTYPE	CASHFLOW_TYPE_CU
2	CRM_PROD_FIN05_MV_ROW	PAYMENT_FORM	CRMC_PAYMFORM	PAYMFORM	KEY	1	CN
3	CRM_PROD_FIN05_MV_ROW	TIMERU_FROM	TIMERUNA	RULE_NAME
4	CRM_PROD_FIN05_MV_ROW	TIMERU_TO	TIMERUNA	RULE_NAME

History

Last changed by/on	SAP	20110908
SAP Release Created in	30A
