SAP ABAP Table CRM_MKTCA_MKTELEMENT (Attribute of Marketing Element for Displaying in HTML)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MKT-MPL-CA-MOD (Application Component) Graphical Modeling
     ⤷ CRM_MKTCA_PROCESSMODEL (Package) Campaign Automation - Process Model

Basic Data

Table Category	INTTAB	Structure

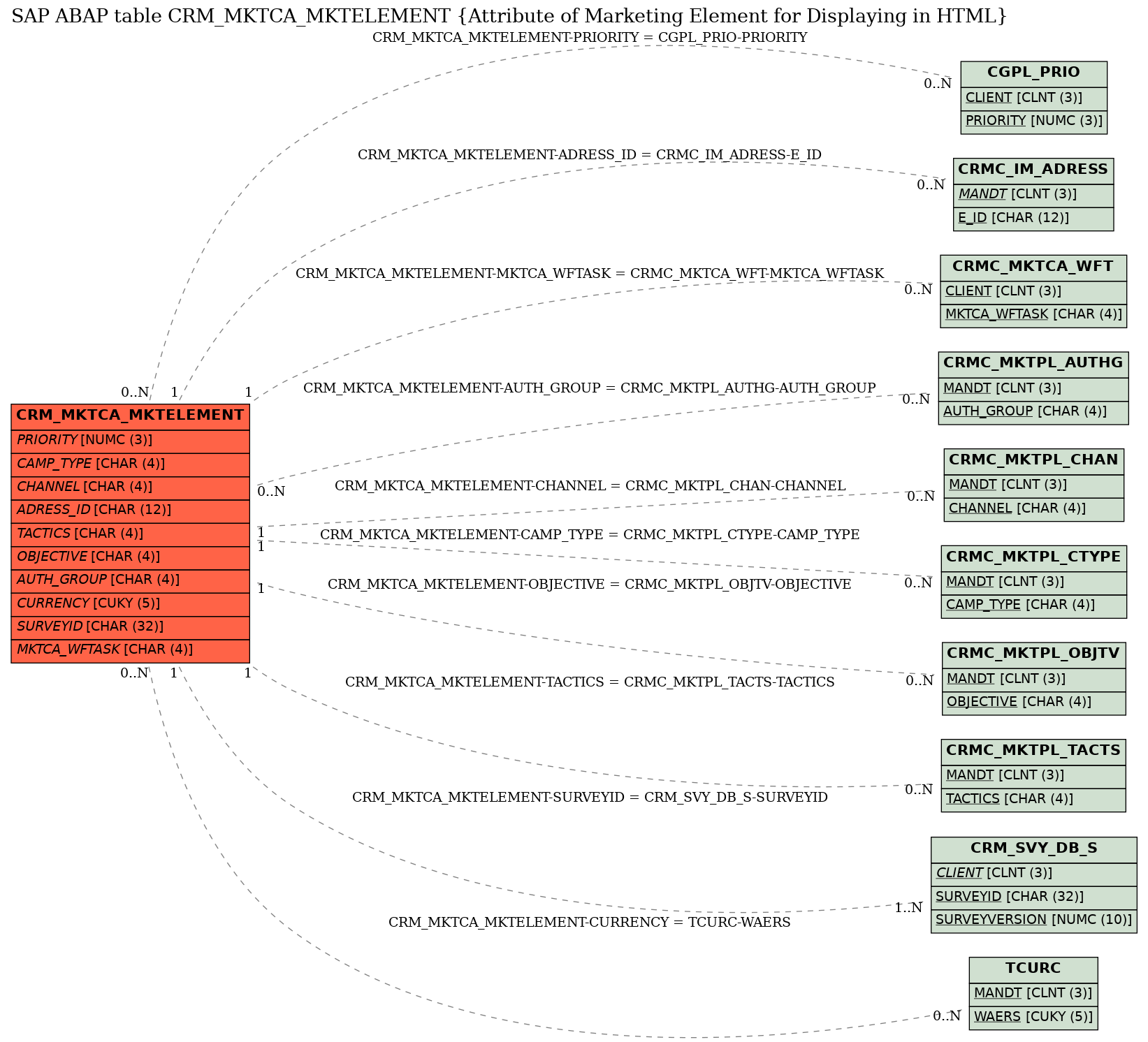

Structure	CRM_MKTCA_MKTELEMENT	Table Relationship Diagram
Short Description	Attribute of Marketing Element for Displaying in HTML

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	GUID	☐	CGPL_GUID16	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16-Character GUID for Projects and Activts
2	EXTERNAL_ID	☐	CGPL_EXTID	CGPL_EXTID	CHAR	24	0	Project Planning: External Indentifier of an Element
3	.INCLUDE	☐				0	0	Project Planning: Projects and Activities Include Structure
4	PROJECT_GUID	☐	CGPL_PROJECT_GUID	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16 Character GUID for Projects
5	OBJECT_TYPE	☐	CGPL_OBJECT_TYPE	CHAR3	CHAR	3	0	Object Type in Project Planning
6	PRIORITY	☐	CGPL_PRIORITY	NUMC3	NUMC	3	0	Priority	CGPL_PRIO
7	ACTUALSTART	☐	CGPL_ACTUALSTART	BCOS_TSTMP	DEC	15	0	Actual Start Date
8	ACTUALFINISH	☐	CGPL_ACTUALFINISH	BCOS_TSTMP	DEC	15	0	Actual Finish Date
9	PLANSTART	☐	CGPL_PLANSTART	BCOS_TSTMP	DEC	15	0	Planned start date
10	PLANFINISH	☐	CGPL_PLANFINISH	BCOS_TSTMP	DEC	15	0	Planned Finish Date
11	COMPLETION	☐	CGPL_COMPLETION	CGPL_COMPLETION	NUMC	3	0	Percentage of Completion
12	MILESTONE	☐	CGPL_MILESTONE	CHAR1	CHAR	1	0	Milestone indicator
13	CONSTRAINT_TYPE	☐	CGPL_CONSTRAINT	CGPL_CONSTRAINT	CHAR	1	0	Type of Scheduling Constraint
14	CONSTRAINT_TIME	☐	CGPL_CONSTRAINT_TIME	BCOS_TSTMP	DEC	15	0	Constraint Date
15	CREATED_BY	☐	CGPL_CREATED_BY	USNAM	CHAR	12	0	Name of Person Who Created Object
16	CREATED_ON	☐	CGPL_CREATED_ON	DATUM	DATS	8	0	Date on Which the Object was Created
17	CREATED_IN_BW	☐	CGPL_CREATED_BW	CHAR1	CHAR	1	0	Transfer Object to BW
18	CHANGED_BY	☐	CGPL_CHANGED_BY	USNAM	CHAR	12	0	Name of Person Who Changed Object
19	CHANGED_ON	☐	CGPL_CHANGED_ON	DATUM	DATS	8	0	Date on Which Object Was Last Changed
20	UPDATED_IN_BW	☐	CGPL_UPDATED_BW	CHAR1	CHAR	1	0	Current Object in BW
21	BWIDENTIFIER	☐	CGPL_BWIDENTIFIER	CGPL_BWIDENTIFIER	NUMC	8	0	Project Planning - BW Identification
22	PLANGROUP	☐	CGPL_SEM_PLGRP		CHAR	4	0	Planning Profile Group
23	LATEST_START	☐	CGPL_LATEST_START	BCOS_TSTMP	DEC	15	0	Latest start
24	LATEST_FINISH	☐	CGPL_LATEST_FINISH	BCOS_TSTMP	DEC	15	0	Latest finish date
25	TOTAL_FLOAT	☐	CGPL_TOTAL_FLOAT	CGPL_FLOAT	DEC	8	2	Total Float
26	DURATION	☐	CGPL_DURATION	CGPL_DURATION	DEC	8	2	Duration of Execution
27	DURATION_UNIT	☐	CGPL_DURATION_UNIT	MEINS	UNIT	3	0	Time Unit for Execution Duration	*
28	CALENDAR_ID	☐	WFCID	WFCID	CHAR	2	0	Factory Calendar	*
29	CONSTR_TYPE_FIN	☐	CGPL_CONSTRAINT	CGPL_CONSTRAINT	CHAR	1	0	Type of Scheduling Constraint
30	CONSTR_TIME_FIN	☐	CGPL_CONSTRAINT_TIME	BCOS_TSTMP	DEC	15	0	Constraint Date
31	APPLICATION	☐	CGPL_APPLICATION_TYPE	CGPL_APPLICATION_TYPE	CHAR	3	0	Application in Project Planning	*
32	FORECAST_START	☐	CGPL_FORECAST_START	BCOS_TSTMP	DEC	15	0	Forecast Start
33	FORECAST_FINISH	☐	CGPL_FORECAST_FINISH	BCOS_TSTMP	DEC	15	0	Forecast Finish
34	.INCLUDE	☐				0	0	CRM Marketing Planning: Include Structure Appl. Attrtibutes
35	CAMP_TYPE	☐	CRM_MKTPL_CAMPTYPE	CRM_MKTPL_CAMPTYPE	CHAR	4	0	Type	CRMC_MKTPL_CTYPE
36	CHANNEL	☐	CRM_MKTPL_CHANNEL	CRM_MKTPL_CHANNEL	CHAR	4	0	ID of Communication Medium	CRMC_MKTPL_CHAN
37	RESPONSIBLE	☐	BU_PARTNER_GUID	SYSUUID	RAW	16	0	Business Partner GUID
38	SMARTFORM	☐	CRMT_MKTPL_EMAIL_FORM	TDSFNAME	CHAR	30	0	Form for E-Mail	*
39	ADRESS_ID	☐	CRMT_IM_E_ID	CHAR12	CHAR	12	0	Identification for an E-mail Address	CRMC_IM_ADRESS
40	SCRIPT	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
41	SHORTCUT	☐	CRMT_MKTPL_CAMPAIGN_SHORTCUT	CHAR4	CHAR	4	0	Campaign Code
42	MAIL_FORM	☐	CRMT_MKTPL_MAIL_FORM	TDSFNAME	CHAR	30	0	Form for Sending a Letter	*
43	FAX_FORM	☐	CRMT_MKTPL_FAX_FORM	TDSFNAME	CHAR	30	0	Form for Fax	*
44	PRINT_ID	☐	CRMT_IM_PRINT_ID	CHAR12	CHAR	12	0	Profile for Print Parameters
45	SEND_PARTNER	☐	CRM_IM_SEND_PARTNER	BU_PARTNER	CHAR	10	0	Business partner for Sender Address Determination	*
46	SMS_FORM	☐	CRMT_MKTPL_SMS_FORM	TDSFNAME	CHAR	30	0	Form for SMS/Pager Services	*
47	TACTICS	☐	CRM_MKTPL_TACTICS	CRM_MKTPL_TACTICS	CHAR	4	0	Tactic	CRMC_MKTPL_TACTS
48	OBJECTIVE	☐	CRM_MKTPL_OBJECTIVE	CRM_MKTPL_OBJECTIVE	CHAR	4	0	Objective	CRMC_MKTPL_OBJTV
49	AUTH_GROUP	☐	CRM_MKTPL_AUTH_GROUP	CRM_MKTPL_AUTH_GROUP	CHAR	4	0	Authorization Group	CRMC_MKTPL_AUTHG
50	ORIG_SYSTEM	☐	CRM_MKTPL_ORIG_SYST	CHAR1	CHAR	1	0	CRM Marketing Planning - Campaign Original System
51	SPICE_SCRIPT	☐	CRM_IC_SCRNAME	CRM_IC_XMLNAME	CHAR	32	0	Name of Interaction Center (IC) WebClient Script
52	ACTION_PROFILE	☐	CRM_MKTPL_ACTION_PROFILE	PPFDCNTXT	CHAR	30	0	ID of Action Profile	*
53	CAMPAIGN_LINK	☐	CGPL_GUID16	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16-Character GUID for Projects and Activts
54	CURRENCY	☐	CRM_MKTPL_CUKY	WAERS	CUKY	5	0	MKTPL: Currency Object	TCURC
55	NO_R3_INT	☐	CRM_MKTPL_NO_R3_INT	CHAR1	CHAR	1	0	Marketing Planning: Object Not Integrated into ERP PS
56	MKT_ORG	☐	CRM_MKTPL_MORG	HROBJEC_14	CHAR	14	0	Marketing Organization
57	FILE_EXPORT_FORM	☐	CRMT_IM_EXPORT_FORM	TDSFNAME	CHAR	30	0	File Export Form	*
58	.INCLUDE	☐				0	0	Structure Additional Attributes for Campaign Automation
59	CPT_TYPE	☐	CRMT_MKTCA_CPT_TYPE	CRM_MKTCA_CPT_TYPE	CHAR	2	0	Type of Campaign Element Used
60	SURVEYID	☐	CRM_SVY_DB_SID	CHAR32	CHAR	32	0	CRM Surveys: Survey ID	CRM_SVY_DB_S
61	SURVEYVERSION	☐	CRM_SVY_DB_SVERS	NUMC10	NUMC	10	0	CRM Surveys: Survey Version
62	RECURRING	☐	CRMT_MKTCA_CPG_RECURRING	CRM_MKTCA_CPG_RECURRING	CHAR	1	0	Indicator Recurring Campaign for Camp. Automation
63	MKTCA_WFTASK	☐	CRMT_MKTCA_WFTASK	CRM_MKTCA_WFTASK	CHAR	4	0	Assignment Term Workflow for Task ID	CRMC_MKTCA_WFT
64	CAMP_PERIOD	☐	CRMT_MKTCA_PERIOD	CRM_MKTCA_PERIOD	CHAR	30	0	Period for Campaign
65	N_CAMP_PERIODS	☐	CRMT_MKTCA_NUMBER_PERIODS	CRM_MKTCA_NUMBER_PERIODS	INT4	10	0	No. of Processing Periods
66	RESPONSE_FLAG	☐	CRMT_MKTCA_RESPONSE_FLAG	XFELD	CHAR	1	0	Start for Every Respondent?
67	ET_CAMPAIGN	☐	CRMT_MKTCA_EVENT_TRIGGERED_CPG	XFELD	CHAR	1	0	Indicator for Event Triggered Campaigns
68	SCHEDULING_TYPE	☐	CRMT_MKTCA_SCHEDULING_TYPE	CRM_MKTCA_SCHEDULING_TYPE	CHAR	2	0	Scheduling Type
69	DELAY	☐	CRMT_MKTCA_DELAY	CRM_MKTCA_DELAY	INT1	3	0	Delay (Relative Scheduling)
70	DELAY_UNIT	☐	CRMT_MKTCA_DELAY_UNIT	CRM_MKTCA_DELAY_UNIT	CHAR	2	0	Unit for Delay (Relative Scheduling)
71	CAMP_PERIOD_DUR	☐	CRMT_MKTCA_PERIOD_N	INT4	INT4	10	0	Period Duration for Recurring Campaigns
72	TERR_PATH_GUID	☐	CRMT_TERRITORY_PATH_GUID	SYSUUID	RAW	16	0	Territory Path GUID
73	TERR_PATH_ID	☐	CRMT_TERRITORY_PATH_ID	CRM_TERRITORY_PATH_ID	CHAR	30	0	Territory Hierarchy ID
74	INACTIVE	☐	CRMT_MKTPL_INACTIVE	CHAR1	CHAR	1	0	Inactive Marketing Project
75	CHM_RELEVANT	☐	CRMT_MKTPL_CHM_RELEVANT	XFELD	CHAR	1	0	Open to Partners
76	EXCL_IND	☐	CRM_MKTPL_EXCL_IND	CRM_MKTPL_EXCL_IND	CHAR	1	0	Indicator: Marketing Project Is Exclusive
77	TIMEZONE_CREATED	☐	CRM_MKTPL_TIMEZONE_CREATED	TZNZONE	CHAR	6	0	Time Zone of User Who Created the Marketing Project	*
78	PROD_PL_BASIS	☐	CRM_MKTSS_PL_BASIS	CRM_MKTSS_PL_BASIS	NUMC	3	0	Product Planning Basis
79	ADI_FLAG	☐	CRM_MKTPL_ADI	CRM_MKTPL_ADI	CHAR	1	0	Abnormal Demand Indicator
80	ENROLLMENT_REQ	☐	CRM_MKTPL_ENR_ENROLLMENT_REQ	XFELD	CHAR	1	0	Indicator, that enrollment is required
81	REF_TYPE	☐	CRM_MKTPL_REF_TYPE	CRM_MKTPL_REF_TYPE_DOM	CHAR	4	0	Usage Type
82	TEMPLATE	☐	CRM_MKTPL_TEMPLATE	CRM_BOOLEAN	CHAR	1	0	Template Indicator
83	SMARTDAY_FLAG	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
84	VALIDATION_PROF	☐	CRM_CLA_VS_VAL_PROFILE_ID	CRM_CLA_VS_VAL_PROFILE_ID	CHAR	30	0	ID of Validation Sheet Profile
85	DETERM_PROC	☐	COMT_PARTNER_DETERM_PROC	COMT_PARTNER_DETERM_PROC	CHAR	8	0	ID of a Partner Determination Procedure	*
86	RATES_ORIGIN	☐	CRM_MKTGS_RATES_ORIGIN	CRM_MKTGS_RATES_ORIGIN	CHAR	1	0	Rates Origin
87	USE_FIX_TZ_UTC	☐	CRM_MKTPL_USE_FIX_TIMEZONE	CRM_BOOLEAN	CHAR	1	0	MKTPL: Use Fix Timezone UTC for Timestamp - Date/Time Conv.
88	COMB_TYPE	☐	CRM_MKTPL_LOY_COMB_TYPE	CRM_MKTPL_LOY_COMB_TYPE	CHAR	4	0	Combinability Type for Reward Rule Group
89	EXECUTION_LANG	☐	CRM_MKTPL_EXECUTION_LANGUAGE	SPRAS	LANG	1	0	Execution Language in High-Volume Scenario	*
90	BP_CORR_LANG_IND	☐	CRM_MKTPL_DETERMINE_CORR_LANG	XFELD	CHAR	1	0	Indicator: Determine BP Correspondence Language
91	NOTIF_PROF	☐	CRMT_NOTIF_PROF	CRM_NOTIF_PROF	CHAR	10	0	Notification Profile	*
92	.INCLUDE	☐				0	0	Extension Include - Marketing Objects Header
93	MKTPL_HEADER	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
94	ENROLLMENT_TYPE	☐	CRM_MKTPL_ENR_TYPE	CRM_MKTPL_ENR_TYPE	CHAR	8	0	Data Element For Enrollment Type
95	CHECK_CONSENT	☐	CRM_MKTPL_CHECK_MKT_PERMISSION	XFELD	CHAR	1	0	Check Consent (Marketing Permission)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRM_MKTCA_MKTELEMENT	ADRESS_ID	CRMC_IM_ADRESS	E_ID	REF	1	CN
2	CRM_MKTCA_MKTELEMENT	AUTH_GROUP	CRMC_MKTPL_AUTHG	AUTH_GROUP	KEY
3	CRM_MKTCA_MKTELEMENT	CAMP_TYPE	CRMC_MKTPL_CTYPE	CAMP_TYPE	REF	1	CN
4	CRM_MKTCA_MKTELEMENT	CHANNEL	CRMC_MKTPL_CHAN	CHANNEL	REF	1	CN
5	CRM_MKTCA_MKTELEMENT	CURRENCY	TCURC	WAERS
6	CRM_MKTCA_MKTELEMENT	MKTCA_WFTASK	CRMC_MKTCA_WFT	MKTCA_WFTASK	KEY	1	CN
7	CRM_MKTCA_MKTELEMENT	OBJECTIVE	CRMC_MKTPL_OBJTV	OBJECTIVE	REF	1	CN
8	CRM_MKTCA_MKTELEMENT	PRIORITY	CGPL_PRIO	PRIORITY	KEY
9	CRM_MKTCA_MKTELEMENT	SURVEYID	CRM_SVY_DB_S	SURVEYID	KEY	1	N
10	CRM_MKTCA_MKTELEMENT	TACTICS	CRMC_MKTPL_TACTS	TACTICS	REF	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	400
