SAP ABAP Table CRM_MKT_ATTR_INC (Include Structure: Marketing-Specific Attributes)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MKT-MPL (Application Component) Marketing Planner
     ⤷ CRM_MKTPL (Package) CRM Marketing Planning - User Interfaces

Basic Data

Table Category	INTTAB	Structure

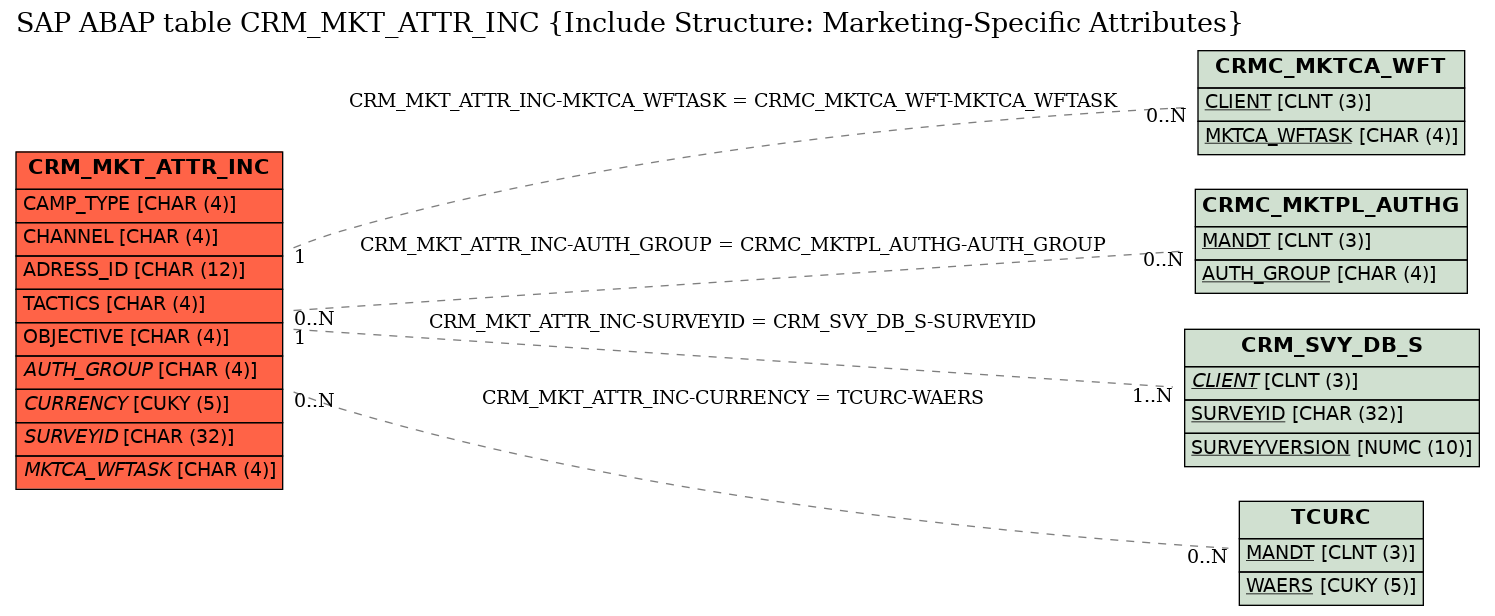

Structure	CRM_MKT_ATTR_INC	Table Relationship Diagram
Short Description	Include Structure: Marketing-Specific Attributes

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	CRM Marketing Planning: Include Structure Appl. Attrtibutes
2	CAMP_TYPE	☐	CRM_MKTPL_CAMPTYPE	CRM_MKTPL_CAMPTYPE	CHAR	4	0	Type	*
3	CHANNEL	☐	CRM_MKTPL_CHANNEL	CRM_MKTPL_CHANNEL	CHAR	4	0	ID of Communication Medium	*
4	RESPONSIBLE	☐	BU_PARTNER_GUID	SYSUUID	RAW	16	0	Business Partner GUID
5	SMARTFORM	☐	CRMT_MKTPL_EMAIL_FORM	TDSFNAME	CHAR	30	0	Form for E-Mail	*
6	ADRESS_ID	☐	CRMT_IM_E_ID	CHAR12	CHAR	12	0	Identification for an E-mail Address	*
7	SCRIPT	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
8	SHORTCUT	☐	CRMT_MKTPL_CAMPAIGN_SHORTCUT	CHAR4	CHAR	4	0	Campaign Code
9	MAIL_FORM	☐	CRMT_MKTPL_MAIL_FORM	TDSFNAME	CHAR	30	0	Form for Sending a Letter	*
10	FAX_FORM	☐	CRMT_MKTPL_FAX_FORM	TDSFNAME	CHAR	30	0	Form for Fax	*
11	PRINT_ID	☐	CRMT_IM_PRINT_ID	CHAR12	CHAR	12	0	Profile for Print Parameters
12	SEND_PARTNER	☐	CRM_IM_SEND_PARTNER	BU_PARTNER	CHAR	10	0	Business partner for Sender Address Determination	*
13	SMS_FORM	☐	CRMT_MKTPL_SMS_FORM	TDSFNAME	CHAR	30	0	Form for SMS/Pager Services	*
14	TACTICS	☐	CRM_MKTPL_TACTICS	CRM_MKTPL_TACTICS	CHAR	4	0	Tactic	*
15	OBJECTIVE	☐	CRM_MKTPL_OBJECTIVE	CRM_MKTPL_OBJECTIVE	CHAR	4	0	Objective	*
16	AUTH_GROUP	☐	CRM_MKTPL_AUTH_GROUP	CRM_MKTPL_AUTH_GROUP	CHAR	4	0	Authorization Group	CRMC_MKTPL_AUTHG
17	ORIG_SYSTEM	☐	CRM_MKTPL_ORIG_SYST	CHAR1	CHAR	1	0	CRM Marketing Planning - Campaign Original System
18	SPICE_SCRIPT	☐	CRM_IC_SCRNAME	CRM_IC_XMLNAME	CHAR	32	0	Name of Interaction Center (IC) WebClient Script
19	ACTION_PROFILE	☐	CRM_MKTPL_ACTION_PROFILE	PPFDCNTXT	CHAR	30	0	ID of Action Profile	*
20	CAMPAIGN_LINK	☐	CGPL_GUID16	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16-Character GUID for Projects and Activts
21	CURRENCY	☐	CRM_MKTPL_CUKY	WAERS	CUKY	5	0	MKTPL: Currency Object	TCURC
22	NO_R3_INT	☐	CRM_MKTPL_NO_R3_INT	CHAR1	CHAR	1	0	Marketing Planning: Object Not Integrated into ERP PS
23	MKT_ORG	☐	CRM_MKTPL_MORG	HROBJEC_14	CHAR	14	0	Marketing Organization
24	FILE_EXPORT_FORM	☐	CRMT_IM_EXPORT_FORM	TDSFNAME	CHAR	30	0	File Export Form	*
25	.INCLUDE	☐				0	0	Structure Additional Attributes for Campaign Automation
26	CPT_TYPE	☐	CRMT_MKTCA_CPT_TYPE	CRM_MKTCA_CPT_TYPE	CHAR	2	0	Type of Campaign Element Used
27	SURVEYID	☐	CRM_SVY_DB_SID	CHAR32	CHAR	32	0	CRM Surveys: Survey ID	CRM_SVY_DB_S
28	SURVEYVERSION	☐	CRM_SVY_DB_SVERS	NUMC10	NUMC	10	0	CRM Surveys: Survey Version
29	RECURRING	☐	CRMT_MKTCA_CPG_RECURRING	CRM_MKTCA_CPG_RECURRING	CHAR	1	0	Indicator Recurring Campaign for Camp. Automation
30	MKTCA_WFTASK	☐	CRMT_MKTCA_WFTASK	CRM_MKTCA_WFTASK	CHAR	4	0	Assignment Term Workflow for Task ID	CRMC_MKTCA_WFT
31	CAMP_PERIOD	☐	CRMT_MKTCA_PERIOD	CRM_MKTCA_PERIOD	CHAR	30	0	Period for Campaign
32	N_CAMP_PERIODS	☐	CRMT_MKTCA_NUMBER_PERIODS	CRM_MKTCA_NUMBER_PERIODS	INT4	10	0	No. of Processing Periods
33	RESPONSE_FLAG	☐	CRMT_MKTCA_RESPONSE_FLAG	XFELD	CHAR	1	0	Start for Every Respondent?
34	ET_CAMPAIGN	☐	CRMT_MKTCA_EVENT_TRIGGERED_CPG	XFELD	CHAR	1	0	Indicator for Event Triggered Campaigns
35	SCHEDULING_TYPE	☐	CRMT_MKTCA_SCHEDULING_TYPE	CRM_MKTCA_SCHEDULING_TYPE	CHAR	2	0	Scheduling Type
36	DELAY	☐	CRMT_MKTCA_DELAY	CRM_MKTCA_DELAY	INT1	3	0	Delay (Relative Scheduling)
37	DELAY_UNIT	☐	CRMT_MKTCA_DELAY_UNIT	CRM_MKTCA_DELAY_UNIT	CHAR	2	0	Unit for Delay (Relative Scheduling)
38	CAMP_PERIOD_DUR	☐	CRMT_MKTCA_PERIOD_N	INT4	INT4	10	0	Period Duration for Recurring Campaigns
39	TERR_PATH_GUID	☐	CRMT_TERRITORY_PATH_GUID	SYSUUID	RAW	16	0	Territory Path GUID
40	TERR_PATH_ID	☐	CRMT_TERRITORY_PATH_ID	CRM_TERRITORY_PATH_ID	CHAR	30	0	Territory Hierarchy ID
41	INACTIVE	☐	CRMT_MKTPL_INACTIVE	CHAR1	CHAR	1	0	Inactive Marketing Project
42	CHM_RELEVANT	☐	CRMT_MKTPL_CHM_RELEVANT	XFELD	CHAR	1	0	Open to Partners
43	EXCL_IND	☐	CRM_MKTPL_EXCL_IND	CRM_MKTPL_EXCL_IND	CHAR	1	0	Indicator: Marketing Project Is Exclusive
44	TIMEZONE_CREATED	☐	CRM_MKTPL_TIMEZONE_CREATED	TZNZONE	CHAR	6	0	Time Zone of User Who Created the Marketing Project	*
45	PROD_PL_BASIS	☐	CRM_MKTSS_PL_BASIS	CRM_MKTSS_PL_BASIS	NUMC	3	0	Product Planning Basis
46	ADI_FLAG	☐	CRM_MKTPL_ADI	CRM_MKTPL_ADI	CHAR	1	0	Abnormal Demand Indicator
47	ENROLLMENT_REQ	☐	CRM_MKTPL_ENR_ENROLLMENT_REQ	XFELD	CHAR	1	0	Indicator, that enrollment is required
48	REF_TYPE	☐	CRM_MKTPL_REF_TYPE	CRM_MKTPL_REF_TYPE_DOM	CHAR	4	0	Usage Type
49	TEMPLATE	☐	CRM_MKTPL_TEMPLATE	CRM_BOOLEAN	CHAR	1	0	Template Indicator
50	SMARTDAY_FLAG	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
51	VALIDATION_PROF	☐	CRM_CLA_VS_VAL_PROFILE_ID	CRM_CLA_VS_VAL_PROFILE_ID	CHAR	30	0	ID of Validation Sheet Profile
52	DETERM_PROC	☐	COMT_PARTNER_DETERM_PROC	COMT_PARTNER_DETERM_PROC	CHAR	8	0	ID of a Partner Determination Procedure	*
53	RATES_ORIGIN	☐	CRM_MKTGS_RATES_ORIGIN	CRM_MKTGS_RATES_ORIGIN	CHAR	1	0	Rates Origin
54	USE_FIX_TZ_UTC	☐	CRM_MKTPL_USE_FIX_TIMEZONE	CRM_BOOLEAN	CHAR	1	0	MKTPL: Use Fix Timezone UTC for Timestamp - Date/Time Conv.
55	COMB_TYPE	☐	CRM_MKTPL_LOY_COMB_TYPE	CRM_MKTPL_LOY_COMB_TYPE	CHAR	4	0	Combinability Type for Reward Rule Group
56	EXECUTION_LANG	☐	CRM_MKTPL_EXECUTION_LANGUAGE	SPRAS	LANG	1	0	Execution Language in High-Volume Scenario	*
57	BP_CORR_LANG_IND	☐	CRM_MKTPL_DETERMINE_CORR_LANG	XFELD	CHAR	1	0	Indicator: Determine BP Correspondence Language
58	NOTIF_PROF	☐	CRMT_NOTIF_PROF	CRM_NOTIF_PROF	CHAR	10	0	Notification Profile	*
59	.INCLUDE	☐				0	0	Extension Include - Marketing Objects Header
60	MKTPL_HEADER	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
61	ENROLLMENT_TYPE	☐	CRM_MKTPL_ENR_TYPE	CRM_MKTPL_ENR_TYPE	CHAR	8	0	Data Element For Enrollment Type
62	CHECK_CONSENT	☐	CRM_MKTPL_CHECK_MKT_PERMISSION	XFELD	CHAR	1	0	Check Consent (Marketing Permission)
63	.INCLUDE	☐				0	0	CRM Marketing Planning - External Format of Attributes
64	CAMP_TYPETX	☐	CRM_MKTPL_CAMPTYPETX	TEXT40	CHAR	40	0	Description of Type
65	CHANNELTX	☐	CRM_MKTPL_CHANNELTX	TEXT40	CHAR	40	0	Description of Communication Medium
66	RESPONSIBLE_NAME	☐	CRM_MKTPL_RESPONSIBLE	BU_PARTNER	CHAR	10	0	Employee Responsible for Marketing Project	*
67	RESPONSIBLE_TEXT	☐	BU_DESCRIP	BU_TEXT50	CHAR	50	0	Short name of business partner
68	ADRESS_NAME	☐	CRMT_IM_E_ADDRESS	SO_STRI241	CHAR	241	0	Marketing: E-mail Address
69	ADRESS_TEXT	☐	CRMT_IM_E_TEXT	CHAR40	CHAR	40	0	Text for E-Mail Address
70	PLANSTARTDATE	☐	CRM_MKTPL_PLANSTARTDATE	DATUM	DATS	8	0	Planned Start Date
71	PLANFINISHDATE	☐	CRM_MKTPL_PLANFINISHDATE	DATUM	DATS	8	0	Planned Finish Date
72	ACTUALSTARTDATE	☐	CRM_MKTPL_ACTUALSTARTDATE	DATUM	DATS	8	0	Actual Start Date
73	ACTUALFINISHDATE	☐	CRM_MKTPL_ACTUALFINISHDATE	DATUM	DATS	8	0	Actual Finish (Date)
74	PLANSTARTTIME	☐	CRM_MKTPL_PLANSTARTTIME	TIME	TIMS	6	0	Planned Start (Time)
75	PLANFINISHTIME	☐	CRM_MKTPL_PLANFINISHTIME	TIME	TIMS	6	0	Planned Finish (Time)
76	ACTUALSTARTTIME	☐	CRM_MKTPL_ACTUALSTARTTIME	TIME	TIMS	6	0	Actual Start (Time)
77	ACTUALFINISHTIME	☐	CRM_MKTPL_ACTUALFINISHTIME	TIME	TIMS	6	0	Actual Finish (time)
78	CONSTRAINTDATE	☐	CRM_MKTPL_CONSTRAINTDATE	DATUM	DATS	8	0	Constraint Date (Date)
79	CONSTRAINTTIME	☐	CRM_MKTPL_CONSTRAINTTIME	TIME	TIMS	6	0	Constraint Date (Time)
80	SCRIPT_TREEID	☐	CRMT_TREEID	CRM_TREEID	NUMC	8	0	Name of Interaction Center (IC) WinClient Script
81	SEND_PARTNER_TEXT	☐	BU_DESCRIP	BU_TEXT50	CHAR	50	0	Short name of business partner
82	TACTICSTX	☐	CRM_MKTPL_TACTICSTX	TEXT40	CHAR	40	0	Tactic Description
83	OBJECTIVETX	☐	CRM_MKTPL_OBJECTIVETX	TEXT40	CHAR	40	0	Objective(s) Description
84	CAMP_PRIOTX	☐	CRM_MKTPL_CAMPPRIOTX	TEXT40	CHAR	40	0	Description of Priority
85	CONSTRAINT_TYPETX	☐	CGPL_CONSTRAINTTX	TEXT40	CHAR	40	0	Description of Type of Scheduling Constraint
86	PLANSTART_IO	☐	CRM_MKTPL_PLANSTART_IO	TZTF_IO_FIELD	CHAR	26	0	Planned Start Date
87	PLANFINISH_IO	☐	CRM_MKTPL_PLANFINISH_IO	TZTF_IO_FIELD	CHAR	26	0	Planned End Date
88	ACTUALSTART_IO	☐	CRM_MKTPL_ACTUALSTART_IO	TZTF_IO_FIELD	CHAR	26	0	Actual Start Date
89	ACTUALFINISH_IO	☐	CRM_MKTPL_ACTUALFINISH_IO	TZTF_IO_FIELD	CHAR	26	0	Actual Finish Date
90	CONSTRAINT_IO	☐	CRM_MKTPL_CONSTRAINT_IO	TZTF_IO_FIELD	CHAR	26	0	Constraint Date
91	FACTORY_CAL_TEXT	☐	FKTEXT	TEXT60	CHAR	60	0	Object Text
92	ACTION_PROFILE_TEXT	☐	PPFDCNTXTT	TEXT60	CHAR	60	0	PPF: Description of Action Profile
93	TERR_ID	☐	CRMT_TERRITORY_ID	CRM_TERRITORY_ID	CHAR	30	0	Territory ID
94	TERR_DESCRIPTION	☐	CRMT_TERRITORY_DESCRIPTION	TEXT40	CHAR	40	0	Territory Description
95	CURRENCY_TEXT	☐	LTEXT	TEXT40	CHAR	40	0	Long Text
96	PSP_CREATION	☐	CRMT_MKTPL_R3_INT	CHAR1	CHAR	1	0	Marketing Planning: Object Replicated in ERP
97	MKT_ORG_DESC	☐	CRM_MKTPL_MORG_DESC	CRM_MKTPL_MORG_DESC	CHAR	40	0	Marketing Organization Description
98	EXCL_IND_DESC	☐	CRM_MKTPL_EXCL_IND_DESC	CRM_BOOLEAN	CHAR	1	0	Marketing Planner: Exclusive Indicator for Mult. Promotions
99	ACTIVE	☐	CRMT_MKTPL_ACTIVE	XFELD	CHAR	1	0	Active Marketing Project
100	HAS_PROCESSMODEL	☐	CRMT_MKTPL_HAS_PROCESSMODEL		CHAR	1	0	Campaign Has Process Model
101	PROD_PL_BASIS_TEXT	☐	CRM_MKTSS_PL_BASIS_TEXT	CRM_MKTSS_PL_BASIS_TEXT	CHAR	40	0	Description of Product Planning Basis
102	PLANGROUP_DESC	☐	CGPL_SEM_PLGRPT	TEXT40	CHAR	40	0	Description of Planning Profile Group
103	AUTH_GROUP_TEXT	☐	CRM_MKTPL_AUTH_GROUPTX	TEXT40	CHAR	40	0	Description of Authorization Group
104	HIERARCHY_SORT	☐	CRM_MKTPL_HIERARCHY_SORT_SEQ		NUMC	3	0	Hierarchy Sort Sequence
105	HV_ACTIVE	☐	CRM_MKTPL_HV_ACTIVE	CRM_MKTPL_HV_ACTIVE	CHAR	1	0	High-Volume Execution
106	OUTLINE_PARENT	☐	CRM_MKTPL_GUID	CRM_MKTPL_GUID	RAW	16	0	CRM Marketing Planning - Marketing Element GUID

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRM_MKT_ATTR_INC	AUTH_GROUP	CRMC_MKTPL_AUTHG	AUTH_GROUP	KEY
2	CRM_MKT_ATTR_INC	CURRENCY	TCURC	WAERS
3	CRM_MKT_ATTR_INC	MKTCA_WFTASK	CRMC_MKTCA_WFT	MKTCA_WFTASK	KEY	1	CN
4	CRM_MKT_ATTR_INC	SURVEYID	CRM_SVY_DB_S	SURVEYID	KEY	1	N

History

Last changed by/on	SAP	20110908
SAP Release Created in	20B
