SAP ABAP Table COMT_PAYPLAN_DC_EXT_AUTH (Payment Cards: External Fields for Authorization)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BF-PC (Application Component) Payment Cards
     ⤷ COM_PAYPLAN (Package) Payment Plan

Basic Data

Table Category	INTTAB	Structure

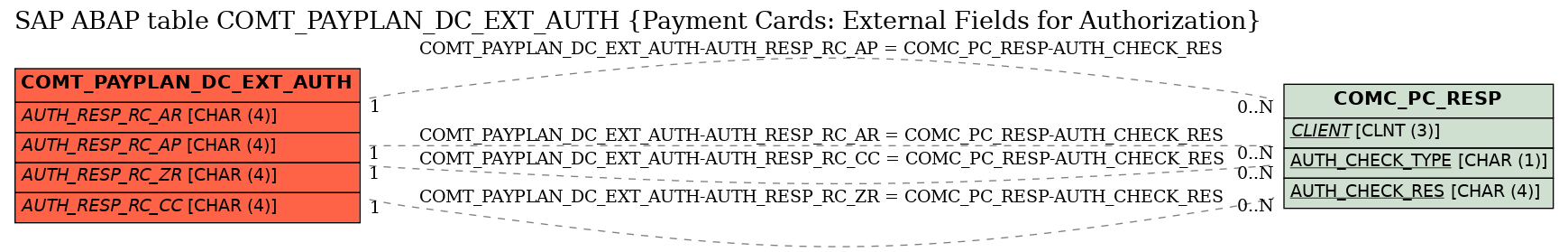

Structure	COMT_PAYPLAN_DC_EXT_AUTH	Table Relationship Diagram
Short Description	Payment Cards: External Fields for Authorization

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	AUTH_LIMIT	☐	COMT_AUTH_LIMIT	WERTV8	CURR	15	2	Payment Cards: Maximum Amount of Value to be Authorized
2	AUTH_LIMITED	☐	COMT_AUTH_LIMITED	XFELD	CHAR	1	0	Payment Cards: Limited Value
3	AUTH_AMOUNT	☐	COMT_AUTH_AMOUNT	WERTV8	CURR	15	2	Payment Cards: Authorized Amount
4	AUTH_USED	☐	COMT_AUTH_USED	XFELD	CHAR	1	0	Authorization Is Already Used
5	AUTH_USED_BY	☐	COMT_AUTH_USED_BY	CHAR10	CHAR	10	0	Authorization Line: Used By
6	AUTH_USED_OBJTYP	☐	COMT_AUTH_USED_OBJTYPE	OJ_NAME	CHAR	10	0	Authorization Line: Used By Object Type	*
7	AUTH_USED_LOGSYS	☐	COMT_AUTH_USED_LOGSYS	LOGSYS	CHAR	10	0	Authorization Line: Used By Logical System	*
8	AUTH_USED_AMOUNT	☐	COMT_AUTH_USED_AMOUNT	WERTV8	CURR	15	2	Authorization Line: Used Amount
9	AUTH_NO	☐	COMT_AUTH_NO	CHAR10	CHAR	10	0	Payment Cards: Authorization Number
10	AUTH_REF	☐	COMT_AUTH_REF	CHAR30	CHAR	30	0	Authorization Reference Number of Clearing House
11	AUTH_PRE	☐	COMT_AUTH_PRE	XFELD	CHAR	1	0	Payment Cards: Preauthorization
12	AUTH_TIMESTAMP	☐	COMT_AUTH_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Date and Time of Authorization
13	AUTH_CALL_STATUS	☐	COMT_AUTH_CALL_STATUS	COM_AUTH_CALL_STATUS	CHAR	1	0	Payment Cards: Status when Calling Clearing House
14	AUTH_RESP	☐	COMT_AUTH_RESP	COM_AUTH_RESP	CHAR	1	0	Response to Authorization Result
15	AUTH_REQ_AMOUNT	☐	COMT_AUTH_REQ_AMOUNT	WERTV8	CURR	15	2	Payment Cards: Amount to be Authorized
16	AUTH_TIMESTAMPIO	☐	COMT_AUTH_TIMESTAMPIO	TZTF_IO_FIELD	CHAR	26	0	Date and Time of Authorization in Display Format
17	AUTH_TYPE	☐	COMT_AUTH_TYPE	COM_AUTH_TYPE	CHAR	1	0	Authorization Type for Payment Cards
18	AUTH_SEPARATE	☐	COMT_AUTH_SEPARATE	XFELD	CHAR	1	0	Indicates that this card will be authorized separately
19	.INCLUDE	☐				0	0	Payment Cards: Return Code from Clearing House
20	AUTH_RESP_RC_AR	☐	COMT_AUTH_RESP_RC_AR	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (Address Result)	COMC_PC_RESP
21	AUTH_RESP_RC_AP	☐	COMT_AUTH_RESP_RC_AP	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (Address Approval)	COMC_PC_RESP
22	AUTH_RESP_RC_ZR	☐	COMT_AUTH_RESP_RC_ZR	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (ZIP Code Result)	COMC_PC_RESP
23	AUTH_RESP_RC_CC	☐	COMT_AUTH_RESP_RC_CC	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Card Check (Response Code)	COMC_PC_RESP
24	.INCLUDE	☐				0	0	Payment Card: Answer from Clearing House Regard. Check Field
25	AUTH_RESP_RC_CVV	☐	COMT_AUTH_RESP_RC_CVV	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result Check of the Card Verification Code
26	AUTH_RESP_CODE	☐	COMT_AUTH_RESP_CODE	TEXT40	CHAR	40	0	Results Text of Authorization

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	COMT_PAYPLAN_DC_EXT_AUTH	AUTH_RESP_RC_AP	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN
2	COMT_PAYPLAN_DC_EXT_AUTH	AUTH_RESP_RC_AR	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN
3	COMT_PAYPLAN_DC_EXT_AUTH	AUTH_RESP_RC_CC	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN
4	COMT_PAYPLAN_DC_EXT_AUTH	AUTH_RESP_RC_ZR	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN

History

Last changed by/on	SAP	20100420
SAP Release Created in
