SAP ABAP Table COMM_IL_IBCWTY (Installed Base Components - Warranty Relationship)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MD-PRO-WTY (Application Component) Warranties
     ⤷ CRM_PRODUCT_IL_WARRANTY (Package) Warranty-Specific IL Objects

Basic Data

Table Category	TRANSP	Transparent table

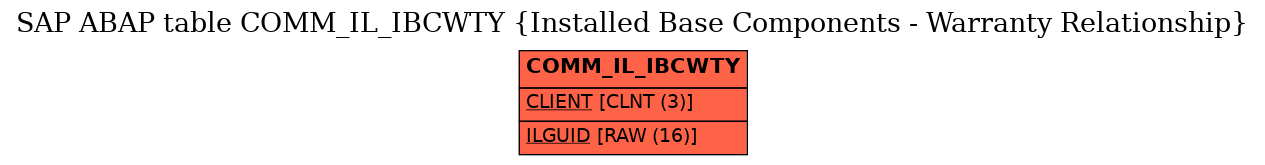

Transparent table	COMM_IL_IBCWTY	Table Relationship Diagram
Short Description	Installed Base Components - Warranty Relationship

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	Key Fields of a Relationship
2	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
3	ILGUID	☑	COMT_IL_ILGUID	SYSUUID	RAW	16	0	Internal, Unique ID of a Relationship
4	.INCLUDE	☐				0	0	Basic Data of a Relationship
5	SOURCEGUID	☐	COMT_IL_SOURCEGUID	SYSUUID	RAW	16	0	Internal ID for Source in a Relationship
6	DESTINGUID	☐	COMT_IL_DESTINGUID	SYSUUID	RAW	16	0	Internal ID for Destination in a Relationship
7	RELTYPE	☐	COMT_IL_RELTYPE		CHAR	6	0	Relationship Type
8	.INCLUDE	☐				0	0	Attribute Start/End IL IBase Component-Warranty
9	START_DATE	☐	CRMT_WTY_SDATE	BCOS_TSTMP	DEC	15	0	Warranty Start (Time Stamp)
10	START_DATE_RULE	☐	CRMT_WTY_SDATE_RULE	TIMENAME	CHAR	12	0	Date Rule for Warranty Start
11	END_DATE	☐	CRMT_WTY_EDATE	BCOS_TSTMP	DEC	15	0	Warranty End (Time Stamp)
12	END_DATE_RULE	☐	CRMT_WTY_EDATE_RULE	TIMENAME	CHAR	12	0	Date Rule for Warranty End
13	.INCLUDE	☐				0	0	Administrative Data on a Relationship
14	LOGSYS	☐	COMT_IL_LOGSYS	LOGSYS	CHAR	10	0	Logical System in Which the Relationship Was Created	*
15	UPNAME	☐	COMT_IL_UPNAME	UNAME	CHAR	12	0	Relationship Last Changed By
16	VALID_FROM	☐	COMT_IL_VALID_FROM	BCOS_TSTMP	DEC	15	0	Valid From (Time Stamp)
17	HISTEX	☐	COMT_IL_HISTEX		CHAR	1	0	Indicates That History Records Exist

History

Last changed by/on	SAP	20100420
SAP Release Created in	400
