SAP ABAP Table COMC_UI_PROPERTY (Dynamic UI: Properties)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-ISA-TEC (Application Component) Technical Infrastructure
     ⤷ CRM_ISALES_DYNAMIC_UI (Package) Persistency Dynamic UI

Basic Data

Table Category	TRANSP	Transparent table

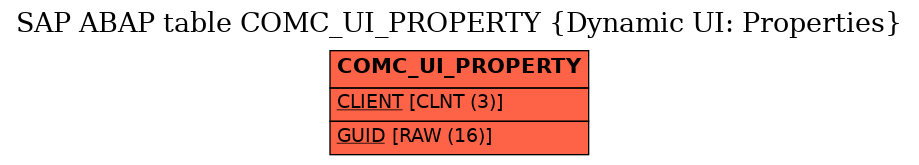

Transparent table	COMC_UI_PROPERTY	Table Relationship Diagram
Short Description	Dynamic UI: Properties

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	GUID	☑	CRMT_CONFIG_UI_GUID	SYSUUID	RAW	16	0	Dynamic UI: GUID of Config UI
3	.INCLUDE	☐				0	0	Dynamic UI: Property
4	CLASS_NAME	☐	CRMT_UI_CLASS_NAME	CHAR200	CHAR	200	0	Classname
5	NAME	☐	CRMT_UI_ELEMENT_NAME	TEXT40	CHAR	40	0	Dynamic UI: Element Name
6	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
7	IS_HIDDEN	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
8	IS_ALLOWED	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
9	SET_ALLWD_LEVEL	☐	INT4	INT4	INT4	10	0	Natural number
10	IS_RES_KEY_USED	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
11	IS_DISABLED	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
12	UI_TYPE	☐	CRMT_UI_TYPE	TEXT40	CHAR	40	0	Dynamic UI: UI Type
13	TYPE	☐	CRMT_UI_TYPE	TEXT40	CHAR	40	0	Dynamic UI: UI Type
14	VALUE_DESCR	☐	CRMT_UI_VALUE_DESCRIPTION	TEXT40	CHAR	40	0	Dynamic UI: Value Description
15	HELP_VAL_METHOD	☐	CRMT_UI_HELP_VALUE_METHOD	TEXT40	CHAR	40	0	Dynamic UI: Help Value Method
16	HELP_VAL_SEARCH	☐	CRMT_UI_HELP_VALUE_SEARCH	TEXT40	CHAR	40	0	Dynamic UI: Help Value Search
17	HELP_VAL_FIELD	☐	CRMT_UI_HELP_VALUE_FIELDNAME	TEXT40	CHAR	40	0	Dynamic UI: Help ValueFieldName
18	BEAN_AVAILABLE	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
19	IS_READ_ONLY	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
20	IS_EXIT_FIELD	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
21	IS_HELP_AVAILAB	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
22	IS_REQUIRED	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
23	VALUE	☐	CRMT_UI_VALUE	TEXT40	CHAR	40	0	Dynamic UI: UI Value
24	DEFAULT_VALUE	☐	CRMT_UI_DEFAULT_VALUE	TEXT40	CHAR	40	0	Dynamic UI: Default Value
25	PROP_SIZE	☐	INT4	INT4	INT4	10	0	Natural number
26	MAX_LENGTH	☐	INT4	INT4	INT4	10	0	Natural number
27	IS_SIMPLE_TYPE	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
28	UI_CONTROL	☐	CRMT_UI_CONTROL	CRMT_UI_CONTROL	CHAR	1	0	Dynamic UI: UI-Control: Expand Collapsed
29	DISPLAY_HELP	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
30	DISP_LNK_ADD_DOC	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
31	DISPLAY_IMAGE	☐	CRMT_UI_DISPLAY_IMAGE	CRMT_UI_DISPLAY_IMAGE	CHAR	1	0	Dynamic UI: Display Image

History

Last changed by/on	SAP	20130604
SAP Release Created in	700
