SAP ABAP Table CMWTRANIF0 (Message Header of Migration Transfer Infrastructure)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-MFW (Application Component) Migration Framework
     ⤷ CMW_TRANSFER (Package) Migration Transfer Infrastructure

Basic Data

Table Category	INTTAB	Structure

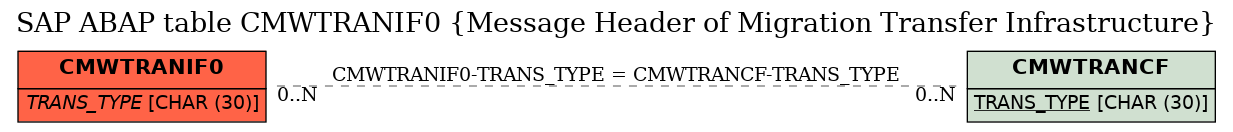

Structure	CMWTRANIF0	Table Relationship Diagram
Short Description	Message Header of Migration Transfer Infrastructure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MESSAGE_ID	☐	CMWTRANID	CMWTRANUID	CHAR	32	0	Message ID of Transfer Message
2	.INCLUDE	☐				0	0	Transfer Message Header Data Fields without key (include)
3	PROCESS	☐	CMWTRANPRC	CMWTRANPRC	CHAR	10	0	Process Indicator for Transfer Message
4	STATE	☐	CMWTRANMST	CMWTRANMST	CHAR	10	0	Transfer Message State
5	TRANS_TYPE	☐	CMWTRANTYP	CMWTRANTYP	CHAR	30	0	Migration Infrastructure Transport Type	CMWTRANCF
6	DDIC_TYPE	☐	KOMP_TYPE	OBJECTNAME	CHAR	30	0	Name of Dictionary Type
7	OBJ_TYPE	☐	SWO_OBJTYP	OJ_NAME	CHAR	10	0	Object Type	*
8	OBJ_SUBTYP	☐	CMWTRANSTY	CMWTRANSTY	CHAR	30	0	Subtype of object type (e.g. BDoc type)
9	OBJ_ID	☐	SWO_TYPEID	SWO_TYPEID	CHAR	70	0	Object key
10	SEND_USER	☐	CMWTRANSUS	UNAME	CHAR	12	0	Logon User in Sending System
11	RECV_USER	☐	CMWTRANRUS	UNAME	CHAR	12	0	Logon User in Receiving System
12	UPDT_USER	☐	CMWTRANUUS	UNAME	CHAR	12	0	Logon User of Last Update Operation
13	SEND_TIME	☐	CMWTRANSTM	TZNTIMESTP	NUMC	14	0	Send Time Stamp (Date + Time UTC)
14	RECV_TIME	☐	CMWTRANRTM	TZNTIMESTP	NUMC	14	0	Receive Time Stamp (Date + Time UTC)
15	UPDT_TIME	☐	CMWTRANUTM	TZNTIMESTP	NUMC	14	0	Update Time Stamp (Date + Time UTC)
16	REPLYTO_ID	☐	CMWTRANRID	CMWTRANUID	CHAR	32	0	Link to Message ID (Reply To Message ID)
17	REPLACE_ID	☐	CMWTRANXID	CMWTRANUID	CHAR	32	0	Message ID which shall be set to a processed state
18	PROCESS_ID	☐	CMWTRANPID	CMWTRANPID	CHAR	32	0	Process Identifier
19	GROUP_ID	☐	CMWTRANGID	CMWTRANGID	CHAR	32	0	Group Identifier
20	ORDER_NR	☐	CMWTRANONR	CMWTRANONR	NUMC	10	0	Sequence Number
21	TRANS_MODE	☐	CMWTRANMOD	CMWTRANMOD	CHAR	4	0	Migration Message Transfer Mode
22	STORE_MODE	☐	CMWTRANSMD	CMWTRANSMD	CHAR	1	0	Store Mode of a Transfer Message
23	SND_LOGSYS	☐	SENDSYSTEM	LOGSYS	CHAR	10	0	Sender	*
24	RCV_LOGSYS	☐	RECVSYSTEM	LOGSYS	CHAR	10	0	Receiving logical system	*
25	TRFC_TYPE	☐	CMWTRANRFC	CMWTRANRFC	CHAR	1	0	Asynchronous RFC Communication Type
26	TRFC_OUTQ	☐	TRFCQNAM	TRFCQNAM	CHAR	24	0	Name of tRFC Queue
27	TRFC_DEST	☐	RFCDEST	RFCDEST	CHAR	32	0	Logical Destination (Specified in Function Call)	*
28	TRFC_INQ	☐	TRFCQNAM	TRFCQNAM	CHAR	24	0	Name of tRFC Queue
29	.INCLUDE	☐				0	0	Unique Transaction ID (LUW -> COMMIT WORK)
30	ARFCIPID	☐	ARFCIPID	ARFCIPID	CHAR	8	0	Host ID (IP ID
31	ARFCPID	☐	ARFCPID	ARFCPID	CHAR	4	0	Process ID
32	ARFCTIME	☐	ARFCTIME	ARFCTIME	CHAR	8	0	Time Stamp
33	ARFCTIDCNT	☐	ARFCTIDCNT	ARFCTIDCNT	CHAR	4	0	Transaction ID (LUW -> COMMIT WORK)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CMWTRANIF0	TRANS_TYPE	CMWTRANCF	TRANS_TYPE

History

Last changed by/on	SAP	20110908
SAP Release Created in	20B
