SAP ABAP Table CMWC_MBA_MDTSTRU (Metadata for structures to be downloaded to GWA)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-MBX (Application Component) MapBox
     ⤷ CMW_MAPBOX_APPL (Package) ABAP Mapbox Applications

Basic Data

Table Category	TRANSP	Transparent table

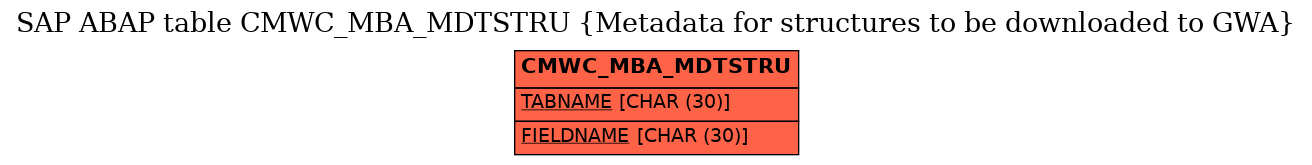

Transparent table	CMWC_MBA_MDTSTRU	Table Relationship Diagram
Short Description	Metadata for structures to be downloaded to GWA

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	TABNAME	☑	TABNAME	AS4TAB	CHAR	30	0	Table Name	*
2	FIELDNAME	☑	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*
3	SMOG_TRANS	☐	SMOG_TRAN	SMOG_GUID	CHAR	32	0	Transaction Key (GUID)
4	SMOG_VERS	☐	SMOG_VER	SMOG_GUID	CHAR	32	0	Version Number Key (GUID)
5	BDOC_LNAME	☐	SMOG_LNAME	SMOG_CHR30	CHAR	30	0	Long name of Bdoc type
6	BDOC_SNAME	☐	SMOG_GNAME	SMOG_GNAME	CHAR	26	0	Generation name of BDoc type
7	POSITION_G	☐	POSITION	NUMC2	NUMC	2	0	Verification: Column position
8	OFFSET_G	☐	OFFSET	OFFSET	INT2	5	0	Offset in work area
9	LENG	☐	LENG	DIMEX	INT2	5	0	Length exponent
10	DECIMALS	☐	DECIMALS	DDLENG	NUMC	6	0	Number of Decimal Places
11	DATATYPE	☐	DYNPTYPE	DATATYPE	CHAR	4	0	ABAP/4 Dictionary: Screen data type for Screen Painter
12	INTTYPE	☐	INTTYPE	INTTYPE	CHAR	1	0	ABAP data type (C,D,N,...)

History

Last changed by/on	SAP	20110908
SAP Release Created in	510
