SAP ABAP Table CGPL_PLANGRP_KPT (Customizing SEM-BPS: Assigning traffic lights to plan gr txt)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM-ANA-PS (Application Component) Planning Services
⤷ CGPL_SEM_INTERFACE (Package) Project Planning - SEM Interface
⤷ CRM-ANA-PS (Application Component) Planning Services
⤷ CGPL_SEM_INTERFACE (Package) Project Planning - SEM Interface
Basic Data
Table Category | TRANSP | Transparent table |

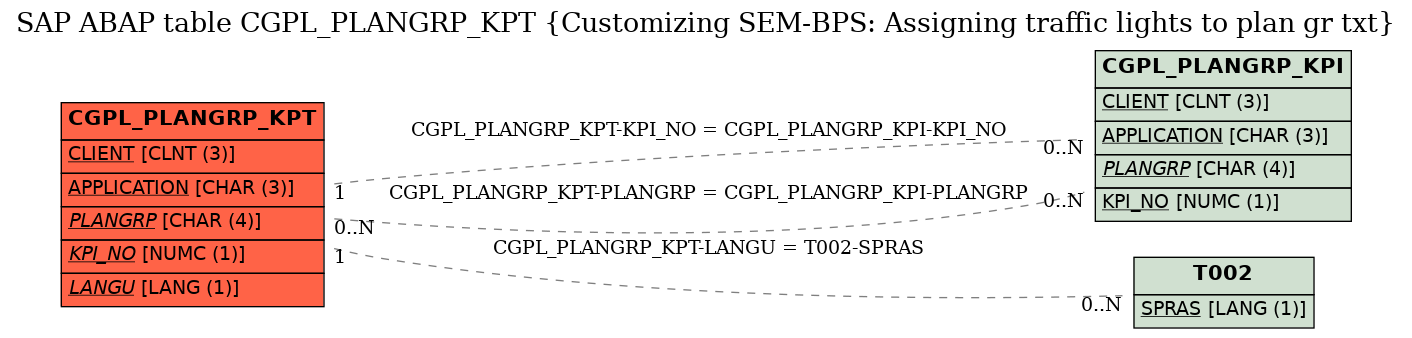

Transparent table | CGPL_PLANGRP_KPT | Table Relationship Diagram |
Short Description | Customizing SEM-BPS: Assigning traffic lights to plan gr txt |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | C | Customizing table, maintenance only by cust., not SAP import |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | CLIENT | MANDT | MANDT | CLNT | 3 | 0 | Client | * | |
2 | APPLICATION | CGPL_APPLICATION_TYPE | CGPL_APPLICATION_TYPE | CHAR | 3 | 0 | Application in Project Planning | * | |
3 | PLANGRP | CGPL_SEM_PLGRP | CHAR | 4 | 0 | Planning Profile Group | CGPL_PLANGRP_KPI | ||
4 | KPI_NO | CGPL_ALERT_NO | CGPL_ALERT_NO | NUMC | 1 | 0 | KPI Evaluation Alert Number | CGPL_PLANGRP_KPI | |
5 | LANGU | SPRAS | SPRAS | LANG | 1 | 0 | Language Key | T002 | |
6 | DESCRIPTION | CRM_MKTPL_KPI_KPI_DESC | CHAR50 | CHAR | 50 | 0 | KPI Description | ||
7 | SHORT_DESC | CRM_MKTPL_KPI_SHORT_DESC | CHAR | 5 | 0 | Traffic Light Short Description |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | CGPL_PLANGRP_KPT | KPI_NO | CGPL_PLANGRP_KPI | KPI_NO | TEXT | 1 | CN |
2 | CGPL_PLANGRP_KPT | LANGU | T002 | SPRAS | 1 | CN | |
3 | CGPL_PLANGRP_KPT | PLANGRP | CGPL_PLANGRP_KPI | PLANGRP |
History
Last changed by/on | SAP | 20130604 |
SAP Release Created in | 301 |
