SAP ABAP Table CDBM_HIE_STRUCT (Hierarchy Structures Table)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MD-BP-GRH (Application Component) Group Hierarchy
     ⤷ CRM_BUPA_HIERARCHY (Package) CRM BP Group Hierarchy

Basic Data

Table Category	TRANSP	Transparent table

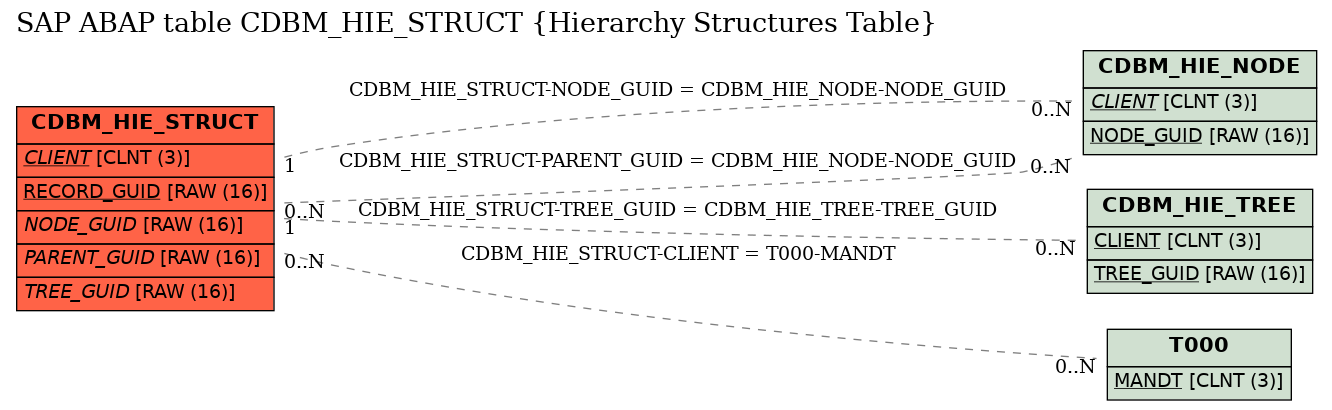

Transparent table	CDBM_HIE_STRUCT	Table Relationship Diagram
Short Description	Hierarchy Structures Table

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	RECORD_GUID	☑	BU_RECORD_GUID	SYSUUID	RAW	16	0	GUID of Data Record on Database (ID of Record)
3	NODE_GUID	☐	BU_NODE_GUID	SYSUUID	RAW	16	0	GUID of Hierarchy Node	CDBM_HIE_NODE
4	VALID_TO	☐	TIMESTAMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
5	VALID_FROM	☐	TIMESTAMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
6	PARENT_GUID	☐	BU_NODE_GUID	SYSUUID	RAW	16	0	GUID of Hierarchy Node	CDBM_HIE_NODE
7	TREE_GUID	☐	BU_TREE_GUID	SYSUUID	RAW	16	0	GUID of Hierarchy Tree	CDBM_HIE_TREE

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CDBM_HIE_STRUCT	CLIENT	T000	MANDT	KEY
2	CDBM_HIE_STRUCT	NODE_GUID	CDBM_HIE_NODE	NODE_GUID	REF	1	CN
3	CDBM_HIE_STRUCT	PARENT_GUID	CDBM_HIE_NODE	NODE_GUID
4	CDBM_HIE_STRUCT	TREE_GUID	CDBM_HIE_TREE	TREE_GUID	REF	1	CN

History

Last changed by/on	SAP	20041011
SAP Release Created in	30A
