SAP ABAP Table CDBM_HIE_NODE_D (Descriptions for Hierarchy Nodes)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷
CRM-MD-BP-GRH (Application Component) Group Hierarchy
⤷
CRM_BUPA_HIERARCHY (Package) CRM BP Group Hierarchy
BBPCRM (Software Component) BBPCRM⤷
CRM-MD-BP-GRH (Application Component) Group Hierarchy⤷
CRM_BUPA_HIERARCHY (Package) CRM BP Group Hierarchy
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | CDBM_HIE_NODE_D |

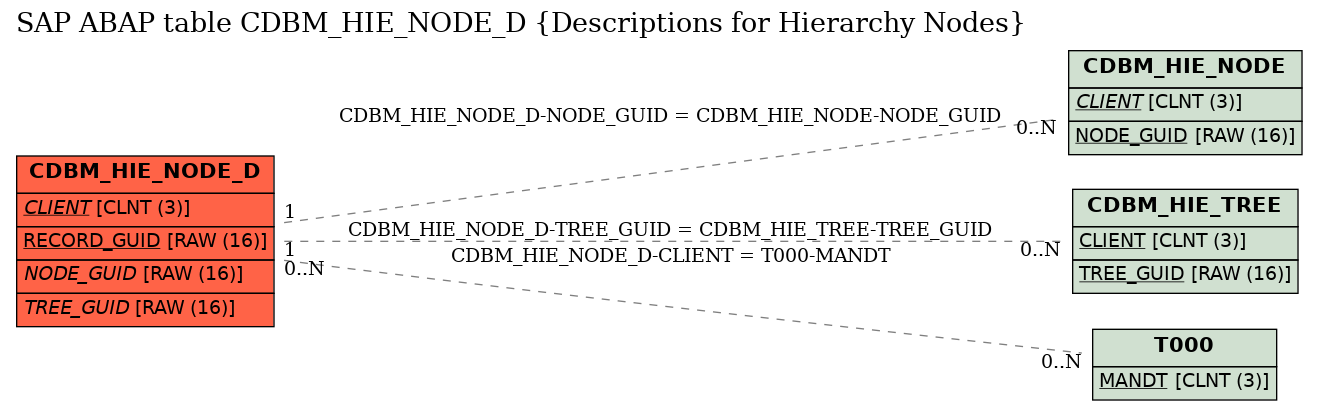

Table Relationship Diagram
|
| Short Description | Descriptions for Hierarchy Nodes |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | A | Application Table (Master- and Transaction Data) |
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  CLIENT |
MANDT | MANDT | CLNT | 3 | 0 | Client | T000 | |
| 2 | RECORD_GUID |
BU_RECORD_GUID | SYSUUID | RAW | 16 | 0 | GUID of Data Record on Database (ID of Record) | ||
| 3 | NODE_GUID |
BU_NODE_GUID | SYSUUID | RAW | 16 | 0 | GUID of Hierarchy Node | CDBM_HIE_NODE | |
| 4 | LANGUAGE |
SPRAS | SPRAS | LANG | 1 | 0 | Language Key | * | |
| 5 | DESCRIPTION |
BU_NODE_DESCRIPTION | BU_TEXT40 | CHAR | 40 | 0 | Description of a Hierarchy Node | ||
| 6 | TREE_GUID |
BU_TREE_GUID | SYSUUID | RAW | 16 | 0 | GUID of Hierarchy Tree | CDBM_HIE_TREE |
Foreign Keys
| |
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right |
|---|---|---|---|---|---|---|---|
 |
|
|
|
|
|
|
|
| 1 | CDBM_HIE_NODE_D | CLIENT |  T000 |
MANDT |
KEY | ||
| 2 | CDBM_HIE_NODE_D | NODE_GUID | CDBM_HIE_NODE |
NODE_GUID |
REF | 1 | CN |
| 3 | CDBM_HIE_NODE_D | TREE_GUID | CDBM_HIE_TREE |
TREE_GUID |
REF | 1 | CN |
History
| Last changed by/on | SAP | 20130604 |
| SAP Release Created in | 30A |
