SAP ABAP Table BUS_TRANS_MSG_HEADER (Business Transaction BDoc: Main Segment)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-IF (Application Component) R/3 Interface for Business Transactions
     ⤷ CRM_DATAEXCHANGE_BTX (Package) One Order: MBDoc, Validation, Data Exchange R/3 Sales

Basic Data

Table Category	INTTAB	Structure

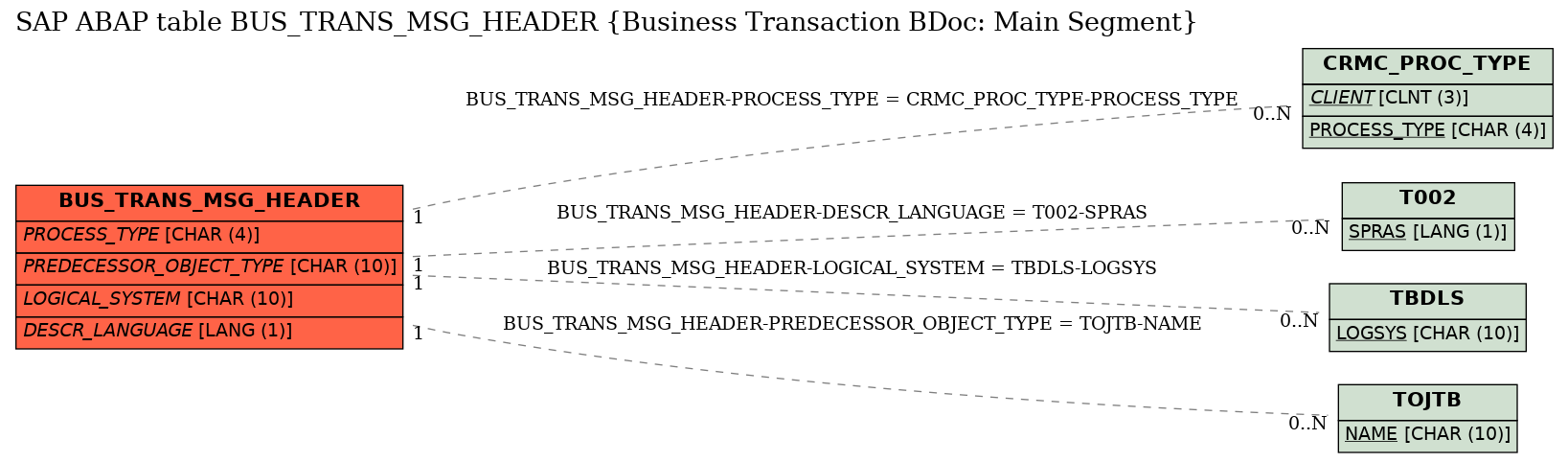

Structure	BUS_TRANS_MSG_HEADER	Table Relationship Diagram
Short Description	Business Transaction BDoc: Main Segment

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	BO BusProcessND: Administration Data Trans. Header Create()
2	GUID	☐	GUID_32	SYSUUID_C	CHAR	32	0	GUID in 'CHAR' Format in Uppercase
3	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
4	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	CRMC_PROC_TYPE
5	OBJECT_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
6	PREDECESSOR_PROCESS	☐	CRMT_PREDECESSOR_PROCESS	SWO_TYPEID	CHAR	70	0	Persistent Identification of a Preceding Object
7	PREDECESSOR_OBJECT_TYPE	☐	CRMT_PREDECESSOR_OBJECT_TYPE	OJ_NAME	CHAR	10	0	Object Type for Preceding Object	TOJTB
8	PREDECESSOR_LOG_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
9	BIN_RELATION_TYPE	☐	CRMT_BIN_RELATION_TYPE	CRM_BIN_RELATION_TYPE	CHAR	4	0	Binary Relation Type for Object Relationship Service
10	LOGICAL_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	TBDLS
11	DESCR_LANGUAGE	☐	CRMT_PROCESS_DESCRIPTION_LANGU	SPRAS	LANG	1	0	Language Key of Description	T002
12	LANGU_ISO	☐	LAISO	LAISO	CHAR	2	0	2-Character SAP Language Code
13	DESCRIPTION	☐	CRMT_PROCESS_DESCRIPTION	CRM_PROCESS_DESCRIPTION	CHAR	40	0	Transaction Description
14	POSTING_DATE	☐	CRMT_POSTING_DATE		DATS	8	0	Posting Date for a Business Transaction
15	CREATED_AT	☐	CRMT_CREATED_AT	BCOS_TSTMP	DEC	15	0	Transaction was Created at this Time
16	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
17	TEMPLATE_TYPE	☐	CRMT_TEMPLATE_TYPE	CRM_TEMPLATE_TYPE	CHAR	1	0	CRM Transaction: Template Type
18	QUEUE_NAME	☐	CRMT_QUEUE_NAME	CHAR10	CHAR	10	0	Name of Queue
19	.INCLUDE	☐				0	0	Instanced sub-Object Types for Supertype BusProcessND
20	IS_ACTIVITYCRM	☐	CRMT_BO_IS_ACTIVITYCRM	CRM_BOOLEAN	CHAR	1	0	Business Object Type Flag is from Activity
21	IS_OPPORTUNITY	☐	CRMT_BO_IS_OPPORTUNITYCRM	CRM_BOOLEAN	CHAR	1	0	Business Object TYpe Flag is from Opportunity
22	IS_SALESTRANSACT	☐	CRMT_BO_IS_SALESTRANSACTION	CRM_BOOLEAN	CHAR	1	0	Business Object Type Flag is from Sales Transaction
23	IS_SERVICEPROC	☐	CRMT_BO_IS_SERVICEPROCESSCRM	CRM_BOOLEAN	CHAR	1	0	Business Object Type Flag is from Service Transaction
24	IS_SRVORDERCONF	☐	CRMT_BO_IS_SRVORDERCONFIRMCRM	CRM_BOOLEAN	CHAR	1	0	Business Object Type Flag is from Service Confirmation
25	HAS_BUSPROCITEM	☐	CRMT_BO_HAS_BUSPROCESSITEMND	CRM_BOOLEAN	CHAR	1	0	Business Object Type Flag has Items

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BUS_TRANS_MSG_HEADER	DESCR_LANGUAGE	T002	SPRAS	KEY	1	CN
2	BUS_TRANS_MSG_HEADER	LOGICAL_SYSTEM	TBDLS	LOGSYS	KEY	1	CN
3	BUS_TRANS_MSG_HEADER	PREDECESSOR_OBJECT_TYPE	TOJTB	NAME	KEY	1	CN
4	BUS_TRANS_MSG_HEADER	PROCESS_TYPE	CRMC_PROC_TYPE	PROCESS_TYPE	KEY	1	CN

History

Last changed by/on	SAP	20140117
SAP Release Created in	30A
