SAP ABAP Table BUPA_SPLC01 (Screen Structure for View SPL03, ATP/APO)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MD-BP-DAT (Application Component) CRM Specific Business Partner Data
     ⤷ CRM_SPL_BUPA_FRG0030 (Package) APO Control

Basic Data

Table Category	INTTAB	Structure

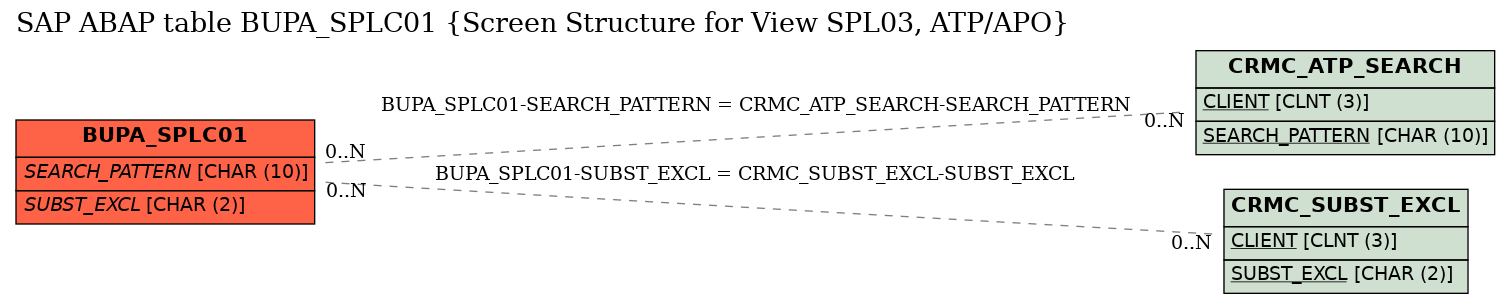

Structure	BUPA_SPLC01	Table Relationship Diagram
Short Description	Screen Structure for View SPL03, ATP/APO

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Screen Structure for Business Rule Set Types
2	RADIO_NO_DATA	☐	CRMT_BU_DIALOG_NO_DATA	XFELD	CHAR	1	0	Indicator: No Data Available
3	RADIO_OWN_DATA	☐	CRMT_BU_DIALOG_OWN_DATA	XFELD	CHAR	1	0	Indicator: Own Data Available
4	RADIO_RULE_DATA	☐	CRMT_BU_DIALOG_RULE_DATA	XFELD	CHAR	1	0	Indicator: Reference Data Used
5	BUSINESS_RULE	☐	CRMT_BU_BUSINESS_RULE		CHAR	22	0	Business Partner: Assigned Mini-Template
6	.INCLUDE	☐				0	0	CRM BP Set Structure for ATP
7	ROUNDING	☐	CRMT_ROUNDING	CRM_ROUNDING	CHAR	1	0	Round Requirement Quantity
8	REQ_RULE	☐	CRMT_REQ_RULE	CRM_REQ_RULE	CHAR	1	0	Requirement Rule
9	CONF_RULE	☐	CRMT_CONF_RULE	CRM_CONF_RULE	CHAR	1	0	Confirmation Rule
10	SEARCH_PATTERN	☐	CRMT_SEARCH_PATTERN	CRM_SEARCH_PATTERN	CHAR	10	0	Rule Criterion 2	CRMC_ATP_SEARCH
11	SUBST_EXCL	☐	CRMT_ATP_SUBST_EXCL	CRM_ATP_SUBST_EXCL	CHAR	2	0	Rule Criterion 1	CRMC_SUBST_EXCL
12	EXPANDED_SEARCH	☐	CRMT_EXPANDED_SEARCH	XFELD	CHAR	1	0	Nationwide Vendor Determination
13	PAR_ATP_SSTOCK	☐	CRMT_PAR_ATP_SSTOCK	CRM_PAR_ATP_SSTOCK	CHAR	1	0	Parameter-Dependent ATP Safety Stock

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BUPA_SPLC01	SEARCH_PATTERN	CRMC_ATP_SEARCH	SEARCH_PATTERN
2	BUPA_SPLC01	SUBST_EXCL	CRMC_SUBST_EXCL	SUBST_EXCL

History

Last changed by/on	SAP	20110908
SAP Release Created in	401
