SAP ABAP Table BUPA_CRMB01 (Screen Structure for View CRMB01, Shipping)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MD-BP (Application Component) Business Partners
     ⤷ CRM_BUPA_FRG0020 (Package) CRM BP Shipping Data

Basic Data

Table Category	INTTAB	Structure
Structure	BUPA_CRMB01	Table Relationship Diagram
Short Description	Screen Structure for View CRMB01, Shipping

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Screen Structure for Controlling Mini-Templates and Own Data
2	PUSH_MTP	☐	CRMT_BU_DIALOG_MTP	TEXT25	CHAR	25	0	Mini-Template Pushbutton
3	PUSH_OWN_DATA	☐	CRMT_BU_DIALOG_OWN	TEXT25	CHAR	25	0	Own Data Pushbutton
4	DATA_ORIGIN	☐	CRMT_BU_DIALOG_DATA_ORIGIN	TEXT90	CHAR	90	0	Data Origin
5	PUSH_ASSIGN_TEMPL	☐	CRMT_BU_DIALOG_ASSIGN_TEMPLATE	TEXT25	CHAR	25	0	Assign Template
6	PUSH_INFO	☐	CRMT_BU_DIALOG_INFO_DATA_ORIG	TEXT25	CHAR	25	0	Data Origin Information
7	.INCLUDE	☐				0	0	Screen Structure for Business Rule Set Types
8	RADIO_NO_DATA	☐	CRMT_BU_DIALOG_NO_DATA	XFELD	CHAR	1	0	Indicator: No Data Available
9	RADIO_OWN_DATA	☐	CRMT_BU_DIALOG_OWN_DATA	XFELD	CHAR	1	0	Indicator: Own Data Available
10	RADIO_RULE_DATA	☐	CRMT_BU_DIALOG_RULE_DATA	XFELD	CHAR	1	0	Indicator: Reference Data Used
11	BUSINESS_RULE	☐	CRMT_BU_BUSINESS_RULE		CHAR	22	0	Business Partner: Assigned Mini-Template
12	.INCLUDE	☐				0	0	CRM BP Set Structure for Shipping Data
13	INCOTERMS1	☐	CRMT_INCOTERMS1	CRM_INCOTERMS1	CHAR	3	0	Incoterms (Part 1)	CRMC_INCOTERM
14	INCOTERMS2	☐	CRMT_INCOTERMS2	CRM_INCOTERMS2	CHAR	28	0	Incoterms (Part 2)
15	SHIPPING_COND	☐	CRMT_SHIP_COND	CRM_SHIP_COND	CHAR	2	0	Shipping Conditions	CRMC_SHIP_COND
16	OVER_DLV_TOL	☐	CRMT_OVER_DLV_TOL	PRZ21	DEC	3	1	Overdelivery Tolerance Limit
17	UNDER_DLV_TOL	☐	CRMT_UNDER_DLV_TOL	PRZ21	DEC	3	1	Underdelivery Tolerance Limit
18	UNLIM_DLV_TOL	☐	CRMT_DELI_UNLIM_TOL	CRM_BOOLEAN	CHAR	1	0	Indicator: Unlimited Overdelivery Allowed
19	DLV_PRIORITY	☐	CRMT_DLV_PRIO	CRM_DLV_PRIO	NUMC	2	0	Delivery Priority	CRMC_DLV_PRIO
20	ORDER_COMBINED	☐	CRMT_ORDERCOMBIND	CRM_BOOLEAN	CHAR	1	0	Indicator: Order Combination
21	PARTIAL_DLV	☐	CRMT_PART_DLV	CRM_PART_DLV	CHAR	1	0	Delivery Control
22	TRANS_MOT	☐	CRMT_TRANS_MOT	CRM_TRANS_MOT	CHAR	2	0	Mode of Transport	CRMC_TRANS_MOT
23	PART_DLV_ITM	☐	CRMT_PART_DLV_ITM	CRM_PART_DLV_ITM	CHAR	1	0	Delivery Control (Item)
24	INV_BEFORE_GI	☐	CRMT_BEFORE_LOADING	CRM_BEFORE_LOADING	CHAR	1	0	Invoice Before Goods Issue (IBGI)
25	MAX_NO_DLV	☐	CRMT_MAX_PL_DLV		DEC	1	0	Maximum number of partial deliveries allowed per item

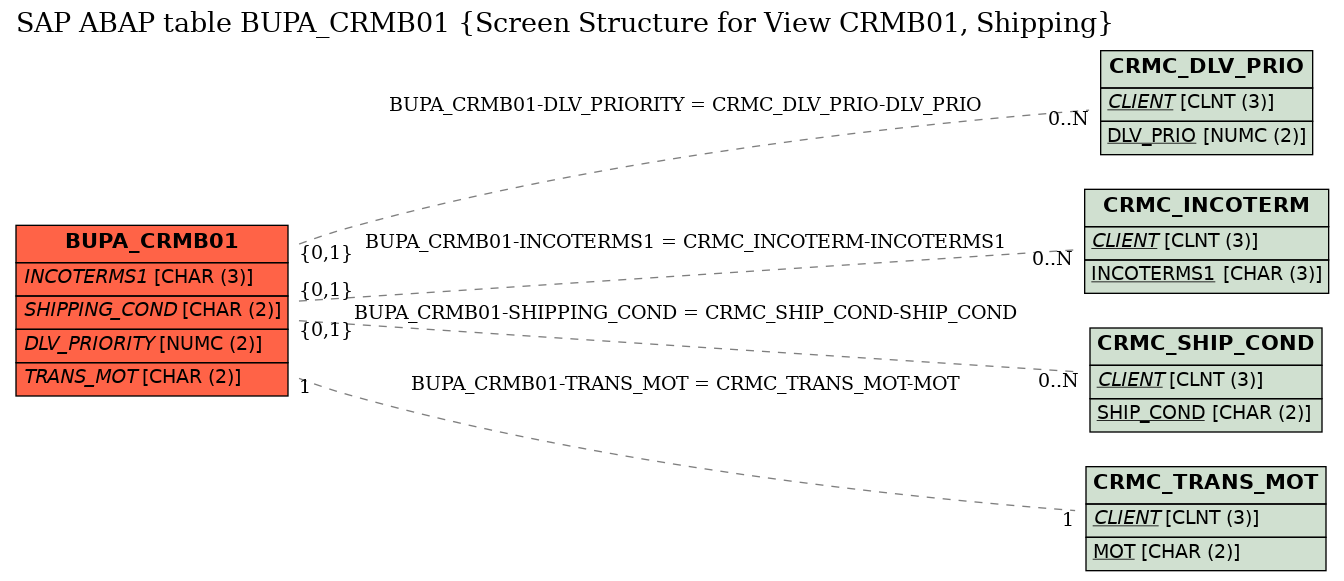

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BUPA_CRMB01	DLV_PRIORITY	CRMC_DLV_PRIO	DLV_PRIO	REF	C	CN
2	BUPA_CRMB01	INCOTERMS1	CRMC_INCOTERM	INCOTERMS1	REF	C	CN
3	BUPA_CRMB01	SHIPPING_COND	CRMC_SHIP_COND	SHIP_COND	REF	C	CN
4	BUPA_CRMB01	TRANS_MOT	CRMC_TRANS_MOT	MOT		1	1

History

Last changed by/on	SAP	20070309
SAP Release Created in
