SAP ABAP Table BEAS_CRMR_RDLI_DSP (UI Display Structure: Rebate Due List Item)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-RB (Application Component) Rebate Processing
     ⤷ BEA_CLASS_R1 (Package) BE Application - Objects in Rebate Class

Basic Data

Table Category	INTTAB	Structure

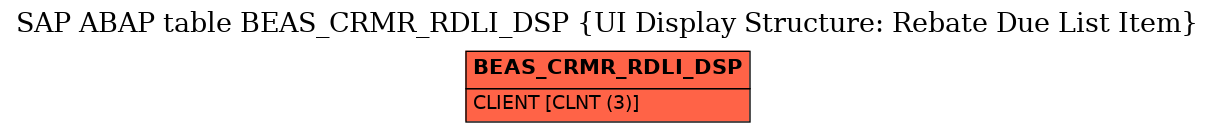

Structure	BEAS_CRMR_RDLI_DSP	Table Relationship Diagram
Short Description	UI Display Structure: Rebate Due List Item

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Key Fields of Settlement Due List (Item)
2	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
3	RDLI_GUID	☐	BEA_RDLI_GUID	SYSUUID	RAW	16	0	GUID of an Item in Rebate Due List
4	.INCLUDE	☐				0	0	Header Reference for Settlement Due List Item
5	RDLH_GUID_I	☐	BEA_RDLH_GUID	SYSUUID	RAW	16	0	GUID of a Header of Rebate Due List
6	.INCLUDE	☐				0	0	Dynamic Enhancement of Payment Record
7	.INCLUDE	☐				0	0	Part of Dynamic Extension: Update Response
8	UPD_TYPE	☐	UPDATE_TYPE	UPDATE_TYPE	CHAR	1	0	Type of Change
9	INDX_RDLH	☐	BEA_TABLE_INDEX_R1	TABIX	INT4	10	0	Internal Table Index
10	INDX_RDLP	☐	BEA_TABLE_INDEX_R1	TABIX	INT4	10	0	Internal Table Index
11	INDX_CONDITIONS	☐	BEA_TABLE_INDEX_R1	TABIX	INT4	10	0	Internal Table Index
12	ERROR_ID	☐	BEA_RDLI_ERROR_ID	BEA_RDLI_ERROR_ID	CHAR	1	0	Processing Indicator: Rebate Due List Item
13	DYNAMICAL	☐	BEA_RDLI_DYNAMICAL	BEA_BOOLEAN_R1	CHAR	1	0	Indicator: RDLI Record Only Exists Dynamically
14	IAT_STATUS	☐	BEA_IAT_STATUS	BEA_IAT_STATUS	CHAR	1	0	Status of Transfer to R/3 Controlling
15	PRODUCT	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
16	RECIPIENT	☐	BEA_REBATE_RECIPIENT	BU_PARTNER	CHAR	10	0	Rebate Recipient	*
17	VARNUMH	☐	BEA_VARNUMH	SYSUUID	RAW	16	0	ID of a Condition Record
18	AGR_CURRENCY_WRK	☐	BEA_AGR_CURRENCY_R1	WAERS	CUKY	5	0	Agreement Currency	*
19	BASE_CURRENC_WRK	☐	BEA_BASE_CURRENCY	WAERS	CUKY	5	0	Reference Currency of Billing Unit (Local Currency)	*
20	BASE_DECIMALS	☐	BEA_DECIMALS	BEA_DECIMALS	CHAR	6	0	Number of Decimal Places in ALV
21	BASE_UNIT_WRK	☐	BEA_BASE_UNIT	MEINS	UNIT	3	0	Base Unit of Measure	*
22	CALC_TYPE_WRK	☐	BEA_CALCULATION_TYPE	BEA_CALCULATION_TYPE_R1	CHAR	3	0	Calculation Type
23	CLOSED_VALUE_WRK	☐	BEA_CU_CLOSED_CVAL_WRK	WERTV9	CURR	17	2	Closed Consumable Value in Agreement Currency
24	CONSUMED_VALUE	☐	BEA_CU_CNSMD_VALUE	WERTV9	CURR	17	2	Consumed Value in Accumulation Currency
25	CU_ACCR_K_WRK	☐	BEA_CU_ACCR_VALUE_K	WERTV9	CURR	17	2	Cumulated Accrual Value in Cumulation Currency
26	CU_ACCR_WRK	☐	BEA_CU_ACCR_VALUE	WERTV9	CURR	17	2	Cumulated Accrual Value in Base Currency
27	CU_BASE_K_WRK	☐	BEA_CU_BASE_VALUE_K	BEA_CU_BASE_R1	DEC	20	5	Cumulated Base Value in Cumulation Currency
28	CU_CURRENCY_INT	☐	BEA_BASE_CURR_INT	WAERS	CUKY	5	0	Internal Currency Key: Base	*
29	CU_CURRENCY_WRK	☐	BEA_CU_CURRENCY	WAERS	CUKY	5	0	Currency for Cumulation	*
30	CU_DATE_WRK	☐	BEA_TIMESTAMP_R1	BEA_TIMESTAMP_R1	CHAR	14	0	Time Stamp Consisting of Date and Time
31	CU_EXPAY_VAL_WRK	☐	BEA_CU_EXPAY_VALUE	WERTV9	CURR	17	2	Cumulated Externally Paid Value in Cumulation Currency
32	CU_MADD_VAL_WRK	☐	BEA_MBAL_VALUE_K	WERTV9	CURR	17	2	Manual Adjustment of Available Rebate Amount
33	CU_PAYD_K_WRK	☐	BEA_CU_PAYD_VALUE_K	WERTV9	CURR	17	2	Cumulated Paid Value in Cumulation Currency
34	CU_RACC_K_WRK	☐	BEA_CU_RACC_VALUE_K	WERTV9	CURR	17	2	Resolved Accrual Value in Cumulation Currency
35	CU_RACC_WRK	☐	BEA_CU_RACC_VALUE	WERTV9	CURR	17	2	Resolved Accrual Value in Base Currency
36	CU_SCALE_BAS_WRK	☐	BEA_CU_SCALE_BASE	BEA_CU_SCALE_BASE_R1	DEC	18	5	Cumulated Scale Base
37	EARNED_TOT_WRK	☐	BEA_TOT_EARNED_CVAL_WRK	WERTV9	CURR	17	2	Total Earned Consumable Value in Agreement Currency
38	EARNED_VAL_WRK	☐	BEA_CU_EARNED_CVAL_WRK	WERTV9	CURR	17	2	Earned Consumable Value in Agreement Currency
39	KBETR_D	☐	PRCT_MNT_RATE	PRC_MNT_RATE	CHAR	21	0	Condition maintenance: Condition amount
40	KMEIN_D	☐	PRCT_COND_UOM	MEINS	UNIT	3	0	Condition Unit	*
41	KONWA_D	☐	PRCT_COND_CURR	WAERS	CUKY	5	0	Condition Currency	*
42	KPEIN_D	☐	PRCT_COND_PRICING_UNIT	PRC_CONDITION_PRICING_UNIT	DEC	5	0	Condition Pricing Unit
43	KSCHL_D	☐	PRCT_COND_TYPE	/SAPCND/COND_TYPE	CHAR	4	0	Pricing - Condition Type	*
44	MAN_PAY_VALUE_K	☐	BEA_MPAY_VALUE_K	WERTV9	CURR	17	2	Manual Payment Value in Agreement Currency
45	MA_BAS_VALUE_WRK	☐	BEA_MA_BASE_VALUE	BEA_CU_BASE_R1	DEC	20	5	Manual Additional Base Value (Delta)
46	MA_EXPAY_VAL_WRK	☐	BEA_MEXPAY_VALUE_K	WERTV9	CURR	17	2	Manual External Payment Value
47	MA_SCALE_BAS_WRK	☐	BEA_MA_SBAS_VALUE	BEA_CU_BASE_R1	DEC	20	5	Manual Additional Scale Base Value (Delta)
48	MA_TRANSFER_VAL	☐	BEA_TRANSFER_VALUE_R1	WERTV9	CURR	17	2	Value to Be Transferred
49	NUM_OF_PERIODS_W	☐	BEA_TRANSFER_BY_N_PERIODS	BEA_NUMBER_INT4	INT4	10	0	Number of Periods - Values to Be Shifted
50	OKSTATUS	☐	BEA_RDLI_STATUS_R1	BEA_RDLI_STATUS_R1	CHAR	1	0	Status of Settlement Record in Settlement
51	OPEN_ACC_VALUE_K	☐	BEA_OPEN_ACC_VALUE_K	WERTV9	CURR	17	2	Open Accrual Value in Cumulation Currency
52	OPEN_CNSM_VALUE	☐	BEA_OPEN_CONSM_VALUE	WERTV9	CURR	17	2	Open Consumable Value in Agreement Currency
53	OPEN_CNSM_VAL_FT	☐	BEA_OPEN_CONSM_VALUE_FUT	WERTV9	CURR	17	2	Open Consumable Value in Agreement Currency - Future
54	OPEN_CNSM_VAL_NW	☐	BEA_OPEN_CONSM_VALUE_NOW	WERTV9	CURR	17	2	Open Consumable Value in Agreement Currency (At This Date)
55	PAY_VALUE_K	☐	BEA_PAY_VALUE_K	WERTV9	CURR	17	2	Value to Pay in Agreement Currency
56	REV_ACC_VALUE	☐	BEA_REV_ACC_VALUE	WERTV9	CURR	17	2	Accrual Value to Be Posted in Base Currency
57	REV_ACC_VALUE_K	☐	BEA_REV_ACC_VALUE_K	WERTV9	CURR	17	2	Accrual Value to Be Posted in Agreement Currency
58	SCALE_BASE_WRK	☐	BEA_TOTAL_SCALE_BASE	BEA_CU_SCALE_BASE_R1	DEC	18	5	Total Scale Base for Determining Scale Level
59	SCALE_CURR_INT	☐	BEA_SCALE_CURR_INT	WAERS	CUKY	5	0	Internal Currency Key: Scale	*
60	SCALE_CURR_WRK	☐	BEA_SCALE_CURR	WAERS	CUKY	5	0	Scale Currency Key	*
61	SCALE_DECIMALS	☐	BEA_DECIMALS	BEA_DECIMALS	CHAR	6	0	Number of Decimal Places in ALV
62	SCALE_TYPE_WRK	☐	BEA_SCALE_BASE_TYPE	BEA_SCALE_BASE_TYPE_R1	CHAR	3	0	Scale Base Type
63	SCALE_UOM_WRK	☐	BEA_SCALE_UOM	MEINS	UNIT	3	0	Scale Unit of Measure	*
64	SETTLE_DATE	☐	BEA_SETTLE_DATE_R1	BEA_VALID_TO_R1	CHAR	14	0	Settlement Date
65	TRANSFER_ACC_WRK	☐	BEA_TRANSFER_ACCRUALS_R1	WERTV9	CURR	17	2	Accruals to Be Transferred
66	TRANSFER_NET_VAL	☐	BEA_TRANSFERRED_VALUE_R1	WERTV9	CURR	17	2	Transferred Net Value
67	TRANS_FR_DATE_W	☐	BEA_TRANSFER_FROM_DATE	BEA_TIMESTAMP_R1	CHAR	14	0	Date Defining Period to Transfer Volume From
68	CU_FOC_QTY_WRK	☐	BEA_CU_FOC_QNTY	MENGV15_3	QUAN	15	3	Cumulated Quantity for Free-Goods Rebate
69	FOC_ADD_QNTY	☐	REB_FOC_ADD_QNTY	MENGV15_3	QUAN	15	3	Quantity of Free Product
70	FOC_ADD_QNTY_UOM	☐	REB_FOC_ADD_QNTY_UNIT	MEINS	UNIT	3	0	Unit for Free Product	*
71	FOC_QTY_UNIT_WRK	☐	BEA_FOC_QNTY_UNIT	MEINS	UNIT	3	0	Unit for Cumulated Quantity of Free-Goods Rebate	*
72	FOC_QTY_WRK	☐	BEA_FOC_QNTY	MENGV15_3	QUAN	15	3	Quantity for Settlement - Free-Goods Rebate
73	FOC_TOTAL_QTY	☐	BEA_FOC_QNTY	MENGV15_3	QUAN	15	3	Quantity for Settlement - Free-Goods Rebate
74	MAN_FOC_QTY_WRK	☐	BEA_MAN_FOC_QNTY	MENGV15_3	QUAN	15	3	Manual Quantity for Settlement - Free-Goods Rebate
75	PROC_CNTRL	☐	BEA_PROC_CNTRL	BEA_PROC_CNTRL	CHAR	1	0	Processing Control
76	AGR_CURRENCY_DSP	☐	BEA_AGR_CURRENCY_R1	WAERS	CUKY	5	0	Agreement Currency	*
77	BASE_CURR_QUAN	☐	BEA_CURRENCY_OR_UNIT		CHAR	5	0	Currency or Unit
78	BASE_REFERENCE	☐	BEA_BASE_REFERENCE		CHAR	5	0	Currency or Unit of Measure
79	CU_BASE_VL_K_EXT	☐	BEA_CU_BASE_VALUE_K_EXT	BEA_CU_BASE_VALUE_EXT	CHAR	25	0	Cumulated Base Value in Cumulation Currency for UI Display
80	CU_CURRENCY2_EXT	☐	BEA_CU_CURRENCY	WAERS	CUKY	5	0	Currency for Cumulation	*
81	CU_CURRENCY3_EXT	☐	BEA_CU_CURRENCY	WAERS	CUKY	5	0	Currency for Cumulation	*
82	CU_CURRENCY4_EXT	☐	BEA_CU_CURRENCY	WAERS	CUKY	5	0	Currency for Cumulation	*
83	CU_CURRENCY5_EXT	☐	BEA_CU_CURRENCY	WAERS	CUKY	5	0	Currency for Cumulation	*
84	CU_SCL_BASE_EXT	☐	BEA_CU_SCALE_BASE_EXT	BEA_SCALE_BASE_EXT	CHAR	25	0	Cumulated Scale Base for Display on UI
85	FOC_QTY_VAL_DSP	☐	BEA_QUANTITY_OR_VALUE_EXT	BEA_CU_BASE_VALUE_EXT	CHAR	25	0	Quantity or Value
86	FOC_UOM_CURR_DSP	☐	BEA_CURRENCY_OR_UNIT		CHAR	5	0	Currency or Unit
87	KSCHL_TEXT	☐	/SAPCND/VTXTK	TEXT20	CHAR	20	0	Description
88	PRODUCT_ID	☐	COMT_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Product ID
89	PROD_DESCR_EXT	☐	COMT_PRSHTEXTX	PRSHTEXT40	CHAR	40	0	Product Description
90	REBATE_VALUE_DSP	☐	BEA_TOTAL_REBATE_VALUE_K	WERTV9	CURR	17	2	Value disbursed & to be disbursed in rebate arrangement crcy
91	RECIPIENT_NAME	☐	BEA_RECIPIENT_NAME	BU_TEXT50	CHAR	50	0	Rebate Recipient (Name/Location)
92	RECIP_ADDRESS	☐	BU_DESCRIP_LONG	CHAR80	CHAR	80	0	Description of a Business Partner
93	RECIP_NAME_SHORT	☐	BEA_PAYER_NAME_R1	BU_TEXT50	CHAR	50	0	Payer (Name/Location)
94	SCALE_BASE_REF	☐	BEA_BASE_REFERENCE		CHAR	5	0	Currency or Unit of Measure
95	SCBASE_CURR_QUAN	☐	BEA_CURRENCY_OR_UNIT		CHAR	5	0	Currency or Unit
96	.INCLUDE	☐				0	0	EEW include for RDLI
97	RDLI_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1

History

Last changed by/on	SAP	20110908
SAP Release Created in	700
