SAP ABAP Table BDSRE12 (BDS: Relationship Instances)
Hierarchy
☛
SAP_BW (Software Component) SAP Business Warehouse
⤷ BW-PLA-BPS (Application Component) Business Planning and Simulation
⤷ UPP (Package) SEM-BPS: Planning Processor and Layout Builder
⤷ BW-PLA-BPS (Application Component) Business Planning and Simulation
⤷ UPP (Package) SEM-BPS: Planning Processor and Layout Builder
Basic Data
Table Category | TRANSP | Transparent table |

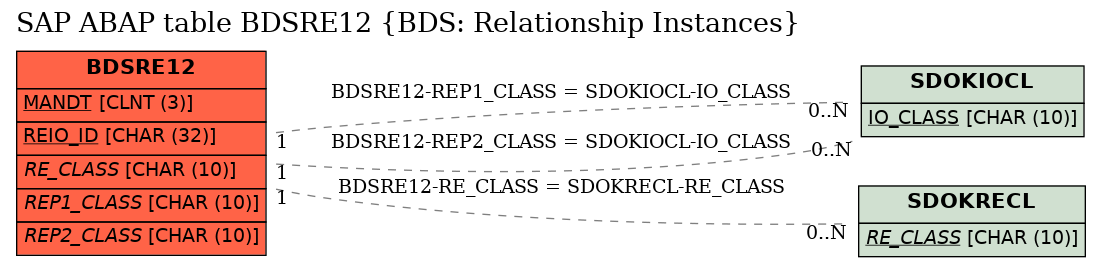

Transparent table | BDSRE12 | Table Relationship Diagram |
Short Description | BDS: Relationship Instances |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | C | Customizing table, maintenance only by cust., not SAP import |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | MANDT | MANDT | MANDT | CLNT | 3 | 0 | Client | * | |
2 | REIO_ID | SDOK_REID | SDOK_DOCID | CHAR | 32 | 0 | Relationship between logical and physical documents | ||
3 | RE_CLASS | SDOK_RECL | SDOK_CLASS | CHAR | 10 | 0 | Relationship class | SDOKRECL | |
4 | REP1_ID | SDOK_DOCID | SDOK_DOCID | CHAR | 32 | 0 | ID for documents and relations | ||
5 | REP1_CLASS | SDOK_CLASS | SDOK_CLASS | CHAR | 10 | 0 | Document class | SDOKIOCL | |
6 | REP2_ID | SDOK_DOCID | SDOK_DOCID | CHAR | 32 | 0 | ID for documents and relations | ||
7 | REP2_CLASS | SDOK_CLASS | SDOK_CLASS | CHAR | 10 | 0 | Document class | SDOKIOCL | |
8 | .INCLUDE | 0 | 0 | SDOK: Fields for relationship instances | |||||
9 | CREA_USER | SDOK_CRUSR | USERNAME | CHAR | 12 | 0 | Created by | ||
10 | CREA_TIME | SDOK_CRTST | SDOK_TSTMP | NUMC | 14 | 0 | Creation time (UTC) | ||
11 | CHNG_USER | SDOK_CHUSR | USERNAME | CHAR | 12 | 0 | Last changed by | ||
12 | CHNG_TIME | SDOK_CHTST | SDOK_TSTMP | NUMC | 14 | 0 | Time of change (UTC) |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | BDSRE12 | REP1_CLASS | SDOKIOCL | IO_CLASS | KEY | 1 | CN |
2 | BDSRE12 | REP2_CLASS | SDOKIOCL | IO_CLASS | KEY | 1 | CN |
3 | BDSRE12 | RE_CLASS | SDOKRECL | RE_CLASS | KEY | 1 | CN |
History
Last changed by/on | SAP | 20130604 |
SAP Release Created in |
