SAP ABAP Table BDSCHKF21 (BDS: File Name for Last Check-Out)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-ABA-TV (Application Component) Transaction Variant and Table Control Settings
     ⤷ SHDI (Package) Transaction Variant Image Archive

Basic Data

Table Category	TRANSP	Transparent table

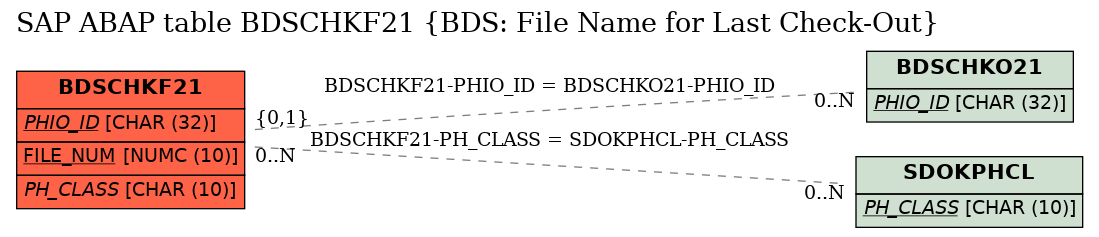

Transparent table	BDSCHKF21	Table Relationship Diagram
Short Description	BDS: File Name for Last Check-Out

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	PHIO_ID	☑	SDOK_PHID	SDOK_DOCID	CHAR	32	0	Physical document	BDSCHKO21
2	FILE_NUM	☑	SDOK_FNUMB	NUMC10	NUMC	10	0	Sequential number of file
3	PH_CLASS	☐	SDOK_PHCL	SDOK_CLASS	CHAR	10	0	Physical document class	SDOKPHCL
4	FILE_NAME	☐	SDOK_FILNM	SDOK_FILNM	CHAR	255	0	Relative storage location of physical document

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BDSCHKF21	PHIO_ID	BDSCHKO21	PHIO_ID	KEY	C
2	BDSCHKF21	PH_CLASS	SDOKPHCL	PH_CLASS	KEY	CN

History

Last changed by/on	SAP	20010220
SAP Release Created in
