SAP ABAP Table BDMS_SFIELD (Segment Fields Table)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-BDM (Application Component) BDOC Modeler
     ⤷ SMW_BDM (Package) CRM Middleware - BDoc Model

Basic Data

Table Category	TRANSP	Transparent table

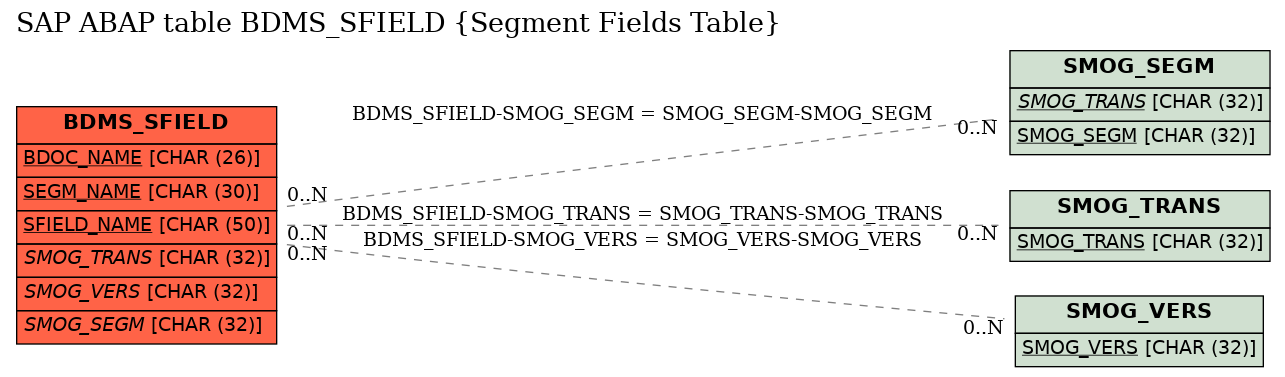

Transparent table	BDMS_SFIELD	Table Relationship Diagram
Short Description	Segment Fields Table

Delivery and Maintenance

Pool/cluster
Delivery Class	W	System table, contents transportable via separate TR objects
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	BDOC_NAME	☑	SMOG_GNAME	SMOG_GNAME	CHAR	26	0	Generation name of BDoc type
2	SEGM_NAME	☑	SMOG_SNAME	SMOG_CHR30	CHAR	30	0	Segment name (long name)
3	SFIELD_NAME	☑	SMOG_FNAM	SMOG_CHR50	CHAR	50	0	Segment field name
4	SMOG_TRANS	☐	SMOG_TRAN	SMOG_GUID	CHAR	32	0	Transaction Key (GUID)	SMOG_TRANS
5	SMOG_SFLD	☐	SMOG_SFELD	SMOG_GUID	CHAR	32	0	Primary Key for Segment Field Table
6	SMOG_VERS	☐	SMOG_VER	SMOG_GUID	CHAR	32	0	Version Number Key (GUID)	SMOG_VERS
7	SMOG_SEGM	☐	SMOG_SEG	SMOG_GUID	CHAR	32	0	Segment key (GUID)	SMOG_SEGM
8	TR_NAME	☐	SMOG_FNAM	SMOG_CHR50	CHAR	50	0	Segment field name
9	TR_POS	☐	SMOG_POS	SMOG_NUM4	NUMC	4	0	Position
10	TR_LENGTH	☐	SMOG_LENTH	SMOG_INT	INT4	10	0	Field Display Length
11	TR_DEC	☐	SMOG_DECIM	SMOG_INT	INT4	10	0	Decimal Precision
12	TR_DTYPE	☐	BDM_DTYPE	DATATYPE	CHAR	4	0	Data Type
13	TR_LCASE	☐	LOWERCASE	AS4FLAG	CHAR	1	0	Lowercase letters allowed/not allowed
14	ROLLNAME	☐	ROLLNAME	ROLLNAME	CHAR	30	0	Data element (semantic domain)	*
15	DOMNAME	☐	DOMNAME	DOMNAME	CHAR	30	0	Domain name	*
16	STYPE_ID	☐	SMOG_STID	SMOG_GUID	CHAR	32	0	SQL Type ID
17	R3DAT_ID	☐	SMOG_DATID	SMOG_GUID	CHAR	32	0	Data element ID
18	TR_SCALE	☐	SMOG_SCALE	SMOG_INT	INT4	10	0	Segment Field Scale
19	TR_KEY	☐	SMOG_KEYFL	SMOG_INT1	INT1	3	0	Key flag
20	TR_PKEY	☐	SMOG_PKEY	SMOG_INT1	INT1	3	0	Parent Key Flag
21	TR_MAND	☐	SMOG_MAND	SMOG_INT1	INT1	3	0	Mandatory Flag
22	TR_REPL	☐	SMOG_REPL	SMOG_INT1	INT1	3	0	Replication Flag
23	TR_R3_KEY	☐	SMOG_R3KEY	SMOG_INT1	INT1	3	0	Field is an R3 Key
24	TR_R3_FLD	☐	SMOG_R3FLD	SMOG_INT1	INT1	3	0	Field is an R3 Field
25	TR_SORTNUM	☐	SMOG_SORT	SMOG_INT1	INT1	3	0	Sort order of fields
26	TR_ASC	☐	SMOG_ASC	SMOG_INT1	INT1	3	0	Sorting direction (ascending =1, descending = 0)
27	TR_SND	☐	SMOG_SEND	SMOG_INT1	INT1	3	0	Send Always Flag
28	UNICODE	☐	SMOG_UNIC	SMOG_CHR1	CHAR	1	0	Unicode Flag For Segment and Table Fields
29	TR_EXT01	☐	SMOG_EXT1	SMOGBDTYCL	CHAR	4	0	Main classification of bdoc type
30	TIMESTAMP	☐	SMOG_TS	SMOG_TS	INT4	10	0	Timestamp
31	TR_ID	☐	SMOG_TID	SMOG_GUID	CHAR	32	0	BDoc Message ID
32	TR_STATUS	☐	SMOG_ST	SMOG_CHR4	CHAR	4	0	Transaction status
33	TR_USER	☐	SMOG_USER	SMOG_GUID	CHAR	32	0	User ID
34	DELETED	☐	SMOG_DEL	SMOG_CHR1	CHAR	1	0	Deletion flag
35	TABNAME	☐	SMOG_NAME	SMOG_CHR30	CHAR	30	0	Repository Entity Names
36	TABFIELD	☐	SMOG_NAME	SMOG_CHR30	CHAR	30	0	Repository Entity Names
37	SMOG_TSEGM	☐	SMOG_TSEG	SMOG_GUID	CHAR	32	0	Transaction segment key (GUID)
38	REL_STATUS	☐	BDM_RELSTT	BDM_STATUS	CHAR	3	0	BDoc Release Status
39	OWNER	☐	BDM_OWNER	BDM_OWNER	CHAR	1	0	DE for owner- Customer Sap Object

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BDMS_SFIELD	SMOG_SEGM	SMOG_SEGM	SMOG_SEGM
2	BDMS_SFIELD	SMOG_TRANS	SMOG_TRANS	SMOG_TRANS	KEY
3	BDMS_SFIELD	SMOG_VERS	SMOG_VERS	SMOG_VERS	KEY

History

Last changed by/on	SAP	20100420
SAP Release Created in	400
