SAP ABAP Table BDM_TFLD (Structure for table SMOG_TFLD)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-BDM (Application Component) BDOC Modeler
     ⤷ SMW_BDM (Package) CRM Middleware - BDoc Model

Basic Data

Table Category	INTTAB	Structure
Structure	BDM_TFLD	Table Relationship Diagram
Short Description	Structure for table SMOG_TFLD

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Table Fields Definition
2	SMOG_TABLE	☐	SMOG_TBL	SMOG_GUID	CHAR	32	0	SMOG_TABLE Primary Key	SMOG_TABLE
3	SMOG_TFLD	☐	SMOG_TBFLD	SMOG_GUID	CHAR	32	0	Table Field Primary Key
4	SMOG_VERS	☐	SMOG_VER	SMOG_GUID	CHAR	32	0	Version Number Key (GUID)	SMOG_VERS
5	TFLD_ID	☐	SMOG_TFID	SMOG_GUID	CHAR	32	0	Table Field ID
6	TABNAME	☐	SMOG_NAME	SMOG_CHR30	CHAR	30	0	Repository Entity Names
7	FIELDNAME	☐	SMOG_NAME	SMOG_CHR30	CHAR	30	0	Repository Entity Names
8	FLDPOS	☐	SMOG_POS	SMOG_NUM4	NUMC	4	0	Position
9	KEYFLAG	☐	SMOG_KEYF	SMOG_CHR1	CHAR	1	0	Key Flag
10	ROLLNAME	☐	SMOG_RNAME	SMOG_CHR30	CHAR	30	0	Rollname
11	CHECKTABLE	☐	SMOG_CHTBL	SMOG_CHR30	CHAR	30	0	Check Table
12	TR_CHKTBL	☐	SMOG_TBLID	SMOG_GUID	CHAR	32	0	Table ID
13	REFTABLE	☐	SMOG_NAME	SMOG_CHR30	CHAR	30	0	Repository Entity Names
14	INTTYPE	☐	SMOG_ITYPE	SMOG_CHR1	CHAR	1	0	Internal Type
15	INTLEN	☐	SMOG_ILEN	SMOG_NUM6	NUMC	6	0	Internal Length
16	NOTNULL	☐	SMOG_NNUL	SMOG_CHR1	CHAR	1	0	Not Null Flag
17	LENG	☐	SMOG_LEN	SMOG_NUM6	NUMC	6	0	Length
18	DECIMALS	☐	SMOG_DEC	SMOG_NUM6	NUMC	6	0	Decimals Size of segment field
19	DOMNAME	☐	SMOG_DOMNA	SMOG_CHR30	CHAR	30	0	Domain Name
20	R3DOM_ID	☐	SMOG_DOMID	SMOG_GUID	CHAR	32	0	Data domain ID
21	DATATYPE	☐	SMOG_DTYPE	SMOG_CHR4	CHAR	4	0	Data Type
22	STYPE_ID	☐	SMOG_STID	SMOG_GUID	CHAR	32	0	SQL Type ID
23	R3DAT_ID	☐	SMOG_DATID	SMOG_GUID	CHAR	32	0	Data element ID
24	R3_KEYFLD	☐	SMOG_R3KEY	SMOG_INT1	INT1	3	0	Field is an R3 Key
25	R3_FIELD	☐	SMOG_R3FLD	SMOG_INT1	INT1	3	0	Field is an R3 Field
26	SND_ALWAYS	☐	SMOG_SEND	SMOG_INT1	INT1	3	0	Send Always Flag
27	UNICODE	☐	SMOG_UNIC	SMOG_CHR1	CHAR	1	0	Unicode Flag For Segment and Table Fields
28	TR_EXT01	☐	SMOG_EXT1	SMOG_CHR4	CHAR	4	0	Main classification of bdoc type
29	TR_EXT02	☐	SMOG_EXT2	SMOG_CHR30	CHAR	30	0	Extension Field 02
30	TIMESTAMP	☐	SMOG_TS	SMOG_TS	INT4	10	0	Timestamp
31	TR_ID	☐	SMOG_TRID	SMOG_TRID	CHAR	32	0	BDoc type ID (base class ID)
32	TR_STATUS	☐	SMOG_ST	SMOG_CHR4	CHAR	4	0	Transaction status
33	TR_USER	☐	SMOG_USER	SMOG_GUID	CHAR	32	0	User ID
34	DELETED	☐	SMOG_DEL	SMOG_CHR1	CHAR	1	0	Deletion flag

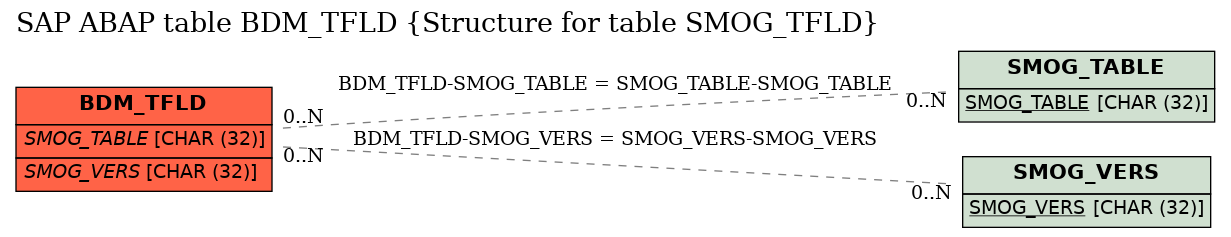

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BDM_TFLD	SMOG_TABLE	SMOG_TABLE	SMOG_TABLE	KEY
2	BDM_TFLD	SMOG_VERS	SMOG_VERS	SMOG_VERS	KEY

History

Last changed by/on	SAP	20010219
SAP Release Created in	20C
