SAP ABAP Table BDM_LOCLLG (BDoc Modeler: Local database connection log)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-BDM (Application Component) BDOC Modeler
     ⤷ SMW_BDM (Package) CRM Middleware - BDoc Model

Basic Data

Table Category	TRANSP	Transparent table

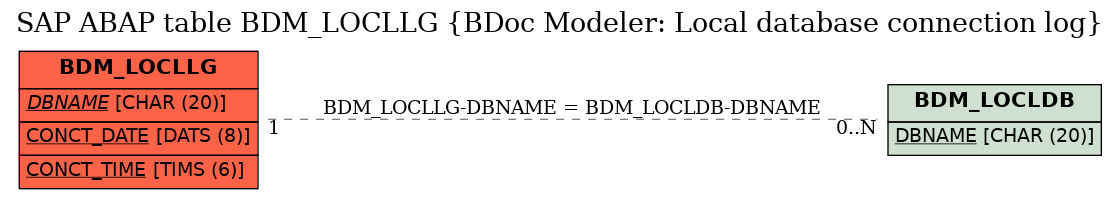

Transparent table	BDM_LOCLLG	Table Relationship Diagram
Short Description	BDoc Modeler: Local database connection log

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	DBNAME	☑	BDM_DBNAME	BDM_DBNAME	CHAR	20	0	Name of the local database (TRREP)	BDM_LOCLDB
2	CONCT_DATE	☑	BDM_CONDAT	DATUM	DATS	8	0	Begin of last connection: date
3	CONCT_TIME	☑	BDM_CONTIM	UZEIT	TIMS	6	0	Begin of last connection: time
4	CONCT_TMST	☐	BDM_CONTMS	SMOG_TS	INT4	10	0	Begin of last connection: BDM timestamp
5	X_DOWNLOAD	☐	BDM_DOWNLD	BDM_FLAG	CHAR	1	0	Flag: Download
6	X_DN_ABORT	☐	BDM_DNABRT	BDM_FLAG	CHAR	1	0	Flag: Download aborted
7	CNT_DOWNLD	☐	BDM_CNTDWN	BDM_COUNTR	INT4	10	0	Number of records downloaded
8	X_UPLOAD	☐	BDM_UPLOAD	BDM_FLAG	CHAR	1	0	Flag: Upload
9	X_UP_ABORT	☐	BDM_UPABRT	BDM_FLAG	CHAR	1	0	Flag: Upload aborted
10	CNT_UPLOAD	☐	BDM_CNTUPL	BDM_COUNTR	INT4	10	0	Number of records uploaded
11	USERID	☐	BDM_USERID	UNAME	CHAR	12	0	User ID

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BDM_LOCLLG	DBNAME	BDM_LOCLDB	DBNAME		1	CN

History

Last changed by/on	SAP	20010219
SAP Release Created in	20C
