SAP ABAP Table BAPI_BT_PAYPLAN_DC_EXT_AUTH (IF Business Transaction: Payment Cards, External Field Auth.)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BF-XIF (Application Component) External Interfaces: Basic Functions
     ⤷ CRMXIF_DDIC (Package) DDIC Objects for External Interfaces

Basic Data

Table Category	INTTAB	Structure

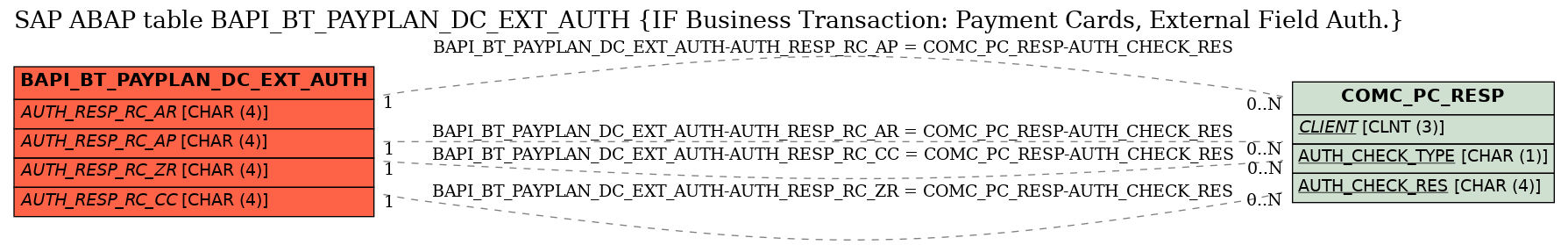

Structure	BAPI_BT_PAYPLAN_DC_EXT_AUTH	Table Relationship Diagram
Short Description	IF Business Transaction: Payment Cards, External Field Auth.

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	AUTH_LIMIT	☐	BAPICURR_D	BAPICURR	DEC	23	4	Currency amount in BAPI interfaces
2	AUTH_AMOUNT	☐	BAPICURR_D	BAPICURR	DEC	23	4	Currency amount in BAPI interfaces
3	AUTH_NO	☐	COMT_AUTH_NO	CHAR10	CHAR	10	0	Payment Cards: Authorization Number
4	AUTH_REF	☐	COMT_AUTH_REF	CHAR30	CHAR	30	0	Authorization Reference Number of Clearing House
5	AUTH_PRE	☐	COMT_AUTH_PRE	XFELD	CHAR	1	0	Payment Cards: Preauthorization
6	AUTH_TIMESTAMP	☐	COMT_AUTH_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Date and Time of Authorization
7	AUTH_CALL_STATUS	☐	COMT_AUTH_CALL_STATUS	COM_AUTH_CALL_STATUS	CHAR	1	0	Payment Cards: Status when Calling Clearing House
8	AUTH_RESP	☐	COMT_AUTH_RESP	COM_AUTH_RESP	CHAR	1	0	Response to Authorization Result
9	AUTH_REQ_AMOUNT	☐	BAPICURR_D	BAPICURR	DEC	23	4	Currency amount in BAPI interfaces
10	AUTH_TIMESTAMPIO	☐	COMT_AUTH_TIMESTAMPIO	TZTF_IO_FIELD	CHAR	26	0	Date and Time of Authorization in Display Format
11	AUTH_RESP_RC_AR	☐	COMT_AUTH_RESP_RC_AR	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (Address Result)	COMC_PC_RESP
12	AUTH_RESP_RC_AP	☐	COMT_AUTH_RESP_RC_AP	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (Address Approval)	COMC_PC_RESP
13	AUTH_RESP_RC_ZR	☐	COMT_AUTH_RESP_RC_ZR	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (ZIP Code Result)	COMC_PC_RESP
14	AUTH_RESP_RC_CC	☐	COMT_AUTH_RESP_RC_CC	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Card Check (Response Code)	COMC_PC_RESP
15	AUTH_RESP_RC_CVV	☐	COMT_AUTH_RESP_RC_CVV	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result Check of the Card Verification Code
16	AUTH_RESP_CODE	☐	COMT_AUTH_RESP_CODE	TEXT40	CHAR	40	0	Results Text of Authorization

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAPI_BT_PAYPLAN_DC_EXT_AUTH	AUTH_RESP_RC_AP	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN
2	BAPI_BT_PAYPLAN_DC_EXT_AUTH	AUTH_RESP_RC_AR	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN
3	BAPI_BT_PAYPLAN_DC_EXT_AUTH	AUTH_RESP_RC_CC	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN
4	BAPI_BT_PAYPLAN_DC_EXT_AUTH	AUTH_RESP_RC_ZR	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN

History

Last changed by/on	SAP	20020823
SAP Release Created in	30A
