SAP ABAP Table BAD_SRV_REQ_H_MESS (Messaging structure for the new Service Request data)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-IF (Application Component) R/3 Interface for Business Transactions
     ⤷ CRM_DATAEXCHANGE_BTX (Package) One Order: MBDoc, Validation, Data Exchange R/3 Sales

Basic Data

Table Category	INTTAB	Structure

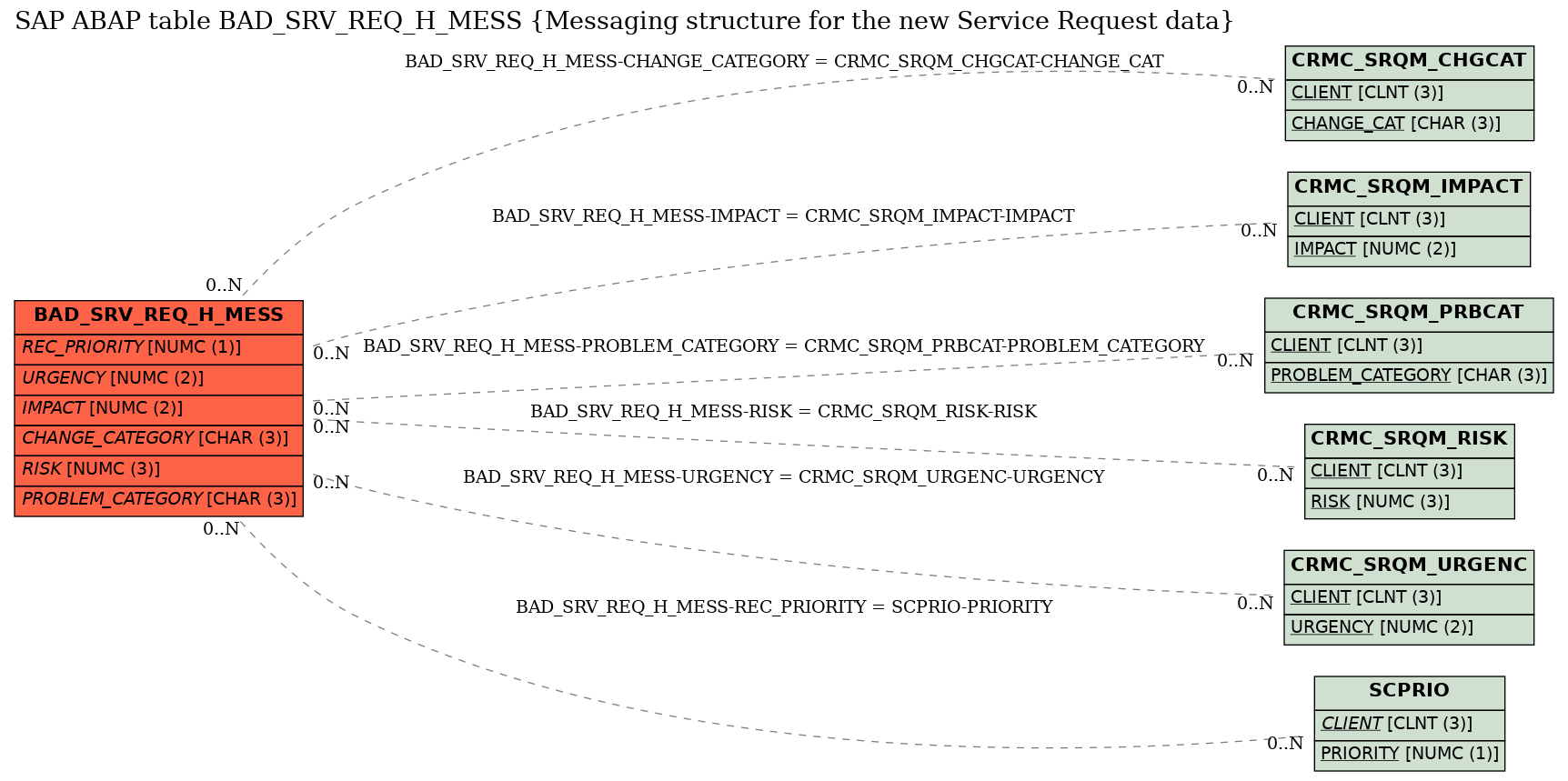

Structure	BAD_SRV_REQ_H_MESS	Table Relationship Diagram
Short Description	Messaging structure for the new Service Request data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Common structure for all segment structures
2	TR_STATUS	☐			CHAR	4	0
3	BEF_IMG	☐			INT1	3	0
4	TASK	☐			INT1	3	0
5	SENDBITS	☐			RAW	32	0
6	.INCLUDE	☐				0	0	BAD - Service Request Header
7	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
8	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
9	ORDERADM_H_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
10	.INCLUDE	☐				0	0	SRQM structure Internal Fields
11	DUMMY	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag
12	REC_PRIORITY	☐	CRMT_SRQM_REC_PRIORITY	SC_PRIO	NUMC	1	0	Recommended Priority	SCPRIO
13	.INCLUDE	☐				0	0	SRQM Structure of External Fields
14	URGENCY	☐	CRMT_SRQM_URGENCY	CRM_SRQM_URGENCY	NUMC	2	0	Urgency	CRMC_SRQM_URGENC
15	IMPACT	☐	CRMT_SRQM_IMPACT	CRM_SRQM_IMPACT	NUMC	2	0	Impact	CRMC_SRQM_IMPACT
16	ESCALATION	☐	CRMT_SRQM_ESCALATION	CRM_SRQM_ESCALATION	NUMC	1	0	Escalation
17	CHANGE_CATEGORY	☐	CRMT_SRQM_CHANGE_CAT	CRM_SRQM_CHANGE_CAT	CHAR	3	0	Change Category	CRMC_SRQM_CHGCAT
18	RISK	☐	CRMT_SRQM_RISK	CRM_SRQM_RISK	NUMC	3	0	Risk	CRMC_SRQM_RISK
19	PROBLEM_CATEGORY	☐	CRMT_SRQM_PROBLEM_CATEGORY	CRM_SRQM_PROBLEM_CATEGORY	CHAR	3	0	Problem Category	CRMC_SRQM_PRBCAT
20	IS_UPDATED	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
21	LAST_UPDATED_AT	☐	CRMT_SRQM_LAST_UPDATED_AT	COM_TSTMP	DEC	15	0	Last Updated On
22	CHKLST_ID	☐	CRMT_SRQM_CHKLST_ID	CRM_SRQM_CHKLST_ID	CHAR	8	0	Checklist ID
23	SEND_EMAIL	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
24	WP_FIXVAL	☐	CRMT_SRQM_WP_FIXVAL	CRM_SRQM_WP_FIXVAL	DEC	5	0	Fix value for Transaction Ranking determination

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAD_SRV_REQ_H_MESS	CHANGE_CATEGORY	CRMC_SRQM_CHGCAT	CHANGE_CAT
2	BAD_SRV_REQ_H_MESS	IMPACT	CRMC_SRQM_IMPACT	IMPACT
3	BAD_SRV_REQ_H_MESS	PROBLEM_CATEGORY	CRMC_SRQM_PRBCAT	PROBLEM_CATEGORY
4	BAD_SRV_REQ_H_MESS	REC_PRIORITY	SCPRIO	PRIORITY
5	BAD_SRV_REQ_H_MESS	RISK	CRMC_SRQM_RISK	RISK
6	BAD_SRV_REQ_H_MESS	URGENCY	CRMC_SRQM_URGENC	URGENCY

History

Last changed by/on	SAP	20130604
SAP Release Created in	700
